Description

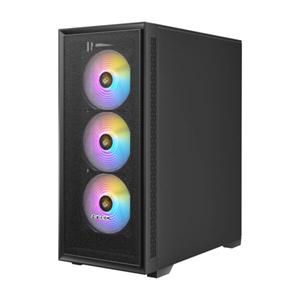

ModelAX81 ELITE
Unique Design & Powerful Heat Dissipation
The AX81 Elite features a unique design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 8 x 120mm fans can be installed simultaneously.
Massive Minimalist Mesh Front Panel
The minimalist case design ensures massive airflow or maximum cooling performance and enhances dust prevention at the same time.
High-Airflow Front Panel
Large-area mesh front panel for massive airflow.
Pre-Installed 4 x 120mm ARGB fans
Pull in massive air for cooling.
In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.
Neat Build within Reach
24mm space for cable management ensures your PC build looks neat.
Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.
Up to 8 x 120mm Fans Simultaneously
Unlimited Performance
Max. GPU Length : 340mm
| SPECIFICATIONS | |
| Brand | Antec |
| Series | AX Elite Series |
| Model | AX81 Elite |
| Physical Details | |
| Colour | Black |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |
| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 1x Front-Panel USB 5Gbps Type-A Port |
| 2x Front-Panel USB 2.0 Type-A Ports | |
| 1x 3.5mm Combination Audio Jack | |
| Motherboard Support | Supports E-ATX, ATX, Micro-ATX, Mini-ITX Motherboards |
| Expansion Slots | 7x PCI Slots |
| Drive Bays | 2x 2.5″ HDD/SSD Drive Bay |
| 1x 2.5″/3.5″ Combo Drive Bay (Removable) | |
| 1x 3.5″ Drive Bay (Removable) | |
| PSU Support | ATX |
| Dimensions | 421 x 210 x 485mm (D x W x H) |
| Weight | 6.0kg |
| Pre-Installed Fans | |
| Front | 3x Antec 120mm ARGB PWM Fans (Intake) |
| Top | N/A |
| Rear | 1x Antec 120mm ARGB PWM Fan (Exhaust) |
| Fan Support | |
| Front | 3x 120mm Fans or 3x 140mm Fans |
| Top | 2x 120mm Fans or 2x 140mm Fans |
| Rear | 1x 120mm Fan |
| PSU Shroud | 2x 120mm Fans |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm Radiator |
| Top | 120 / 140 / 240 / 280mm Radiator |
| Rear | 120mm Radiator |
| Clearance | |
| CPU Cooler Height Limitation | 160mm |
| GPU Length Limitation | 340mm |
| Cable Management | Yes |
| PSU Length Limit | Up to 175mm (with drive cage installed) |
| Up to 365mm (with drive cage removed) | |
| General | |
| Dust Filters | Yes, Front, Bottom, Top dust filters |
| Chassis Lighting | ARGB hub supports all major ARGB controllers with 3-pin connectors |
| Supports MSI Mystic Light, ASUS AURA, Gigabyte RGB Fusion, ASRock Polychrome, Razer Chroma, etc. | |
| 6-Port ARGB Hub splitter pre-installed | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
