Description

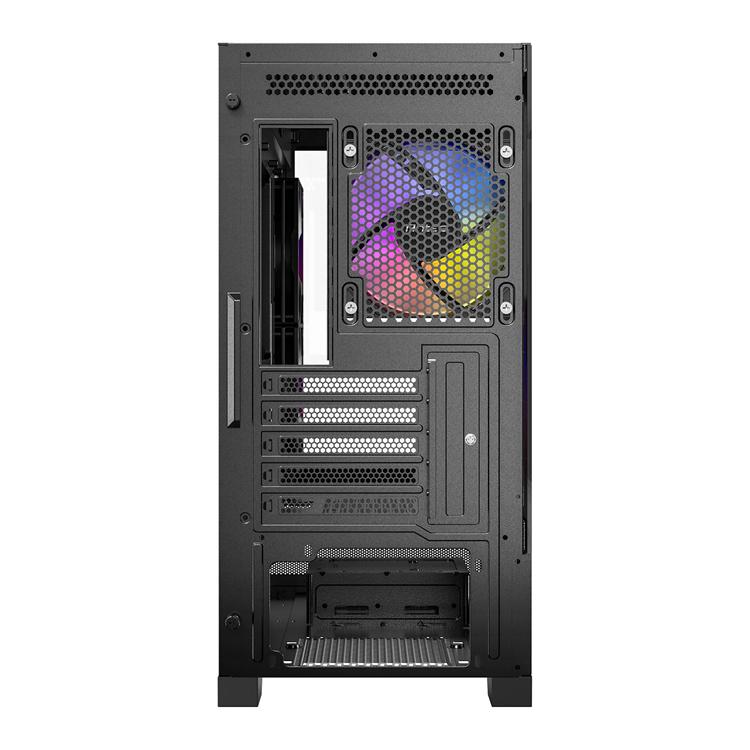

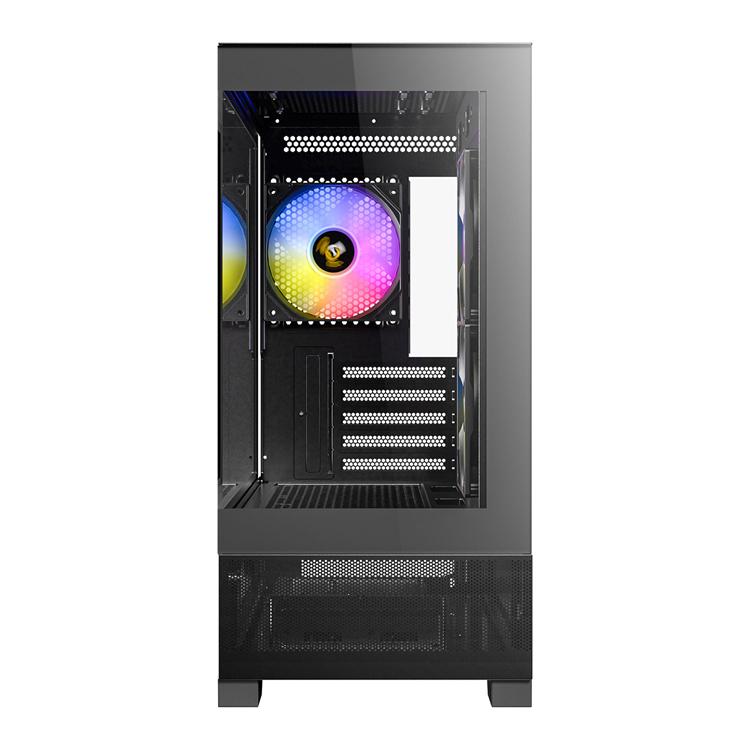

Introducing the Antec CX500M Gaming Chassis, which is designed for gamers who want both style and performance. Its panoramic design provides a sleek, transparent appearance that highlights your hardware beautifully. The tool-free glass side and front panels feature a clip design for easy and safe installation, while the bottom mesh exterior improves cooling efficiency and prevents heat buildup. The CX500M allows for up to 9 fans and a 360mm water cooling radiator on top, ensuring rapid heat dissipation and optimal performance.
The CX500M has a 5-slot PCIe design that improves graphics card compatibility and provides more cooling space, reducing the risk of overheating. Additional features include a removable hard drive cage, magnetic top and bottom dust filters for clean air intake, and a Type-C 3.2 Gen 2 port for fast data transfer. It includes two 120mm reverse blade fans on the sides and one 120mm fan in the back, which are pre-connected for easy setup. Enhance your gaming experience with the Antec CX500M Gaming Chassis.
FEATURES:
- Panoramic 270° design for a transparent and sleek look.
- Tool-free glass side and front panels with a clip design for easy and safe installation.
- Vertical airflow supports up to 9 fans, speeding up heat dissipation.
- Includes a Type-C 3.2 Gen 2 port for high-speed data transfer.
- Top and Bottom Magnetic Dust Filters
SPECIFICATIONS
| Dimensions |
436 x 210 x 446mm (DWH) |
| Form Factor |
Mini Tower |
| Materials |
Steel + Glass |
| Mainboard Support |
Micro-ATX , ITX |
| Front Access & Controls |
Power, LED On/Off , USB3.0 x 2 , Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack |
| Side Panel |
4mm Tempered Glass |
|
| Drive Bays |
| Expansion Slots |
5 |
| 3.5″ /2.5″ |
2/1 |
| 2.5″ |
1 |
|
| Fan |
| Top |
3 x 120mm / 2 x 140mm |
| Side |
2 x 120mm |
| Power Supply Shroud |
3 x 120mm |
| Rear |
120mm |
| Included Fan(s) |
2 x 120mm fixed mode RGB reverse fans on right side
+ 1 x 120mm fixed mode RGB fan in rear |
|
| Radiator Support |
| Top |
120 / 140 / 240 / 280 / 360mm |
|
| Clearance |
| Max GPU Length |
≤415mm |
| Max CPU Cooler Height |
≤165mm |
| Max PSU Length |
(Include cable) ≤210mm (With HDD)
(Not Include cable) ≤270mm (Without HDD) |
|
| Miscellaneous |
| Dust Filter |
Top / Bottom |
| Net Weight |
6.34Kg |
| Gross Weight |
8.2Kg |
| Warranty |
1Year |
|
