Description
ModelVCX20M RGB ELITE

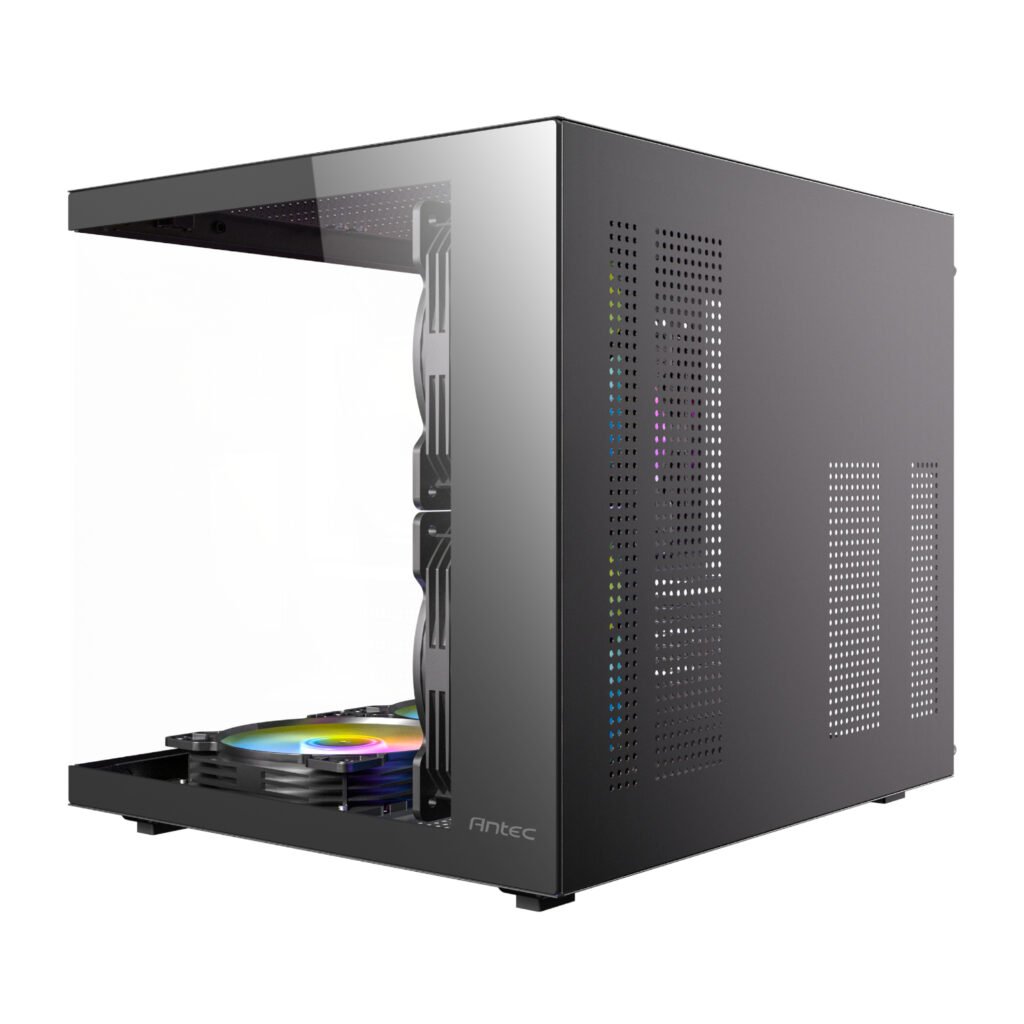

The Antec VCX20M RGB Elite Mini-Tower Gaming Chassis is purpose-built for gamers and PC enthusiasts seeking a compact yet performance-driven case. Designed to accommodate Micro-ATX and Mini-ITX motherboards, the VCX20M offers exceptional cooling and component compatibility in a space-saving footprint. With a sleek 270° panoramic glass panel design across the front and side, this chassis puts your build on full display while adding a touch of modern elegance to any setup.
Optimised for thermal performance, the dual-chamber layout separates heat-generating components like the CPU and GPU from the PSU and storage drives, improving airflow and maintaining system stability. The chassis features large mesh intake vents along the side and bottom, promoting strong vertical cooling to quickly dissipate heat. This smart layout not only ensures efficient airflow but also protects your components from thermal throttling and premature wear.

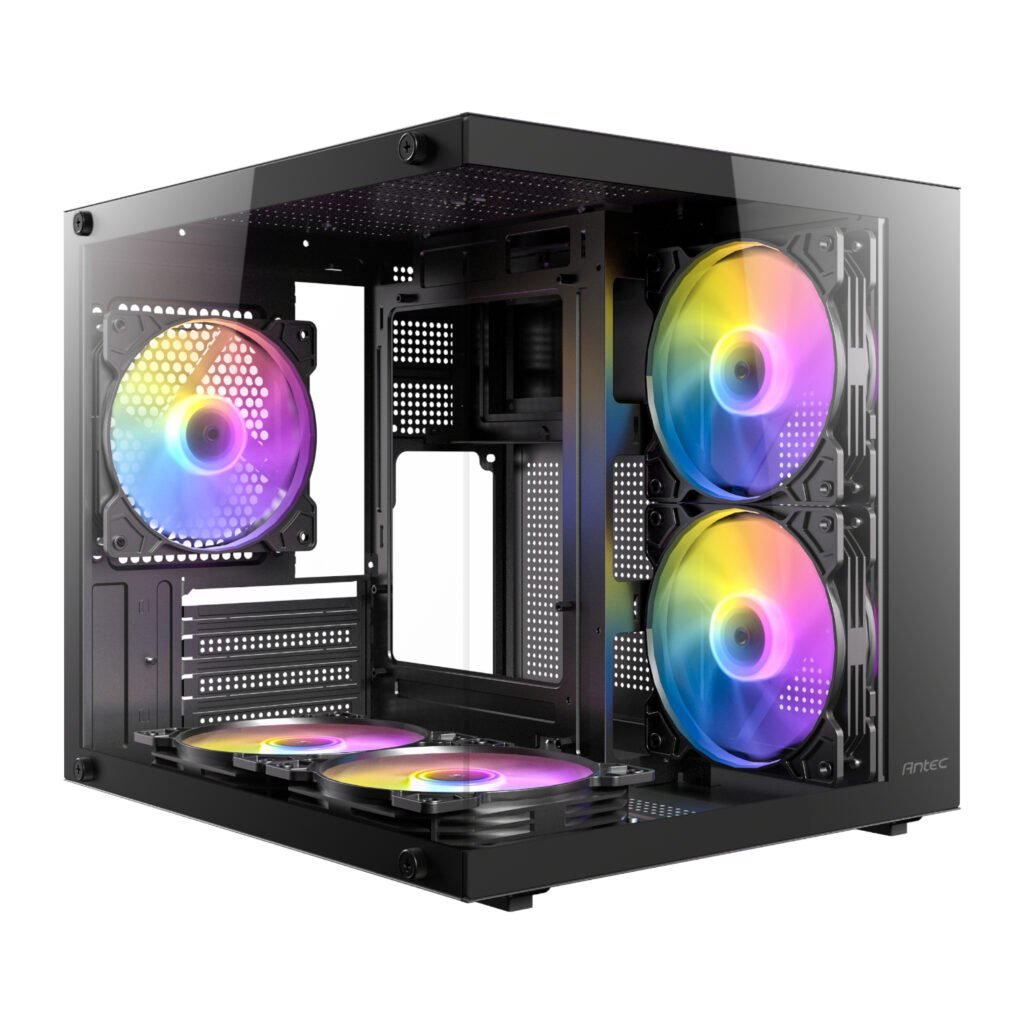

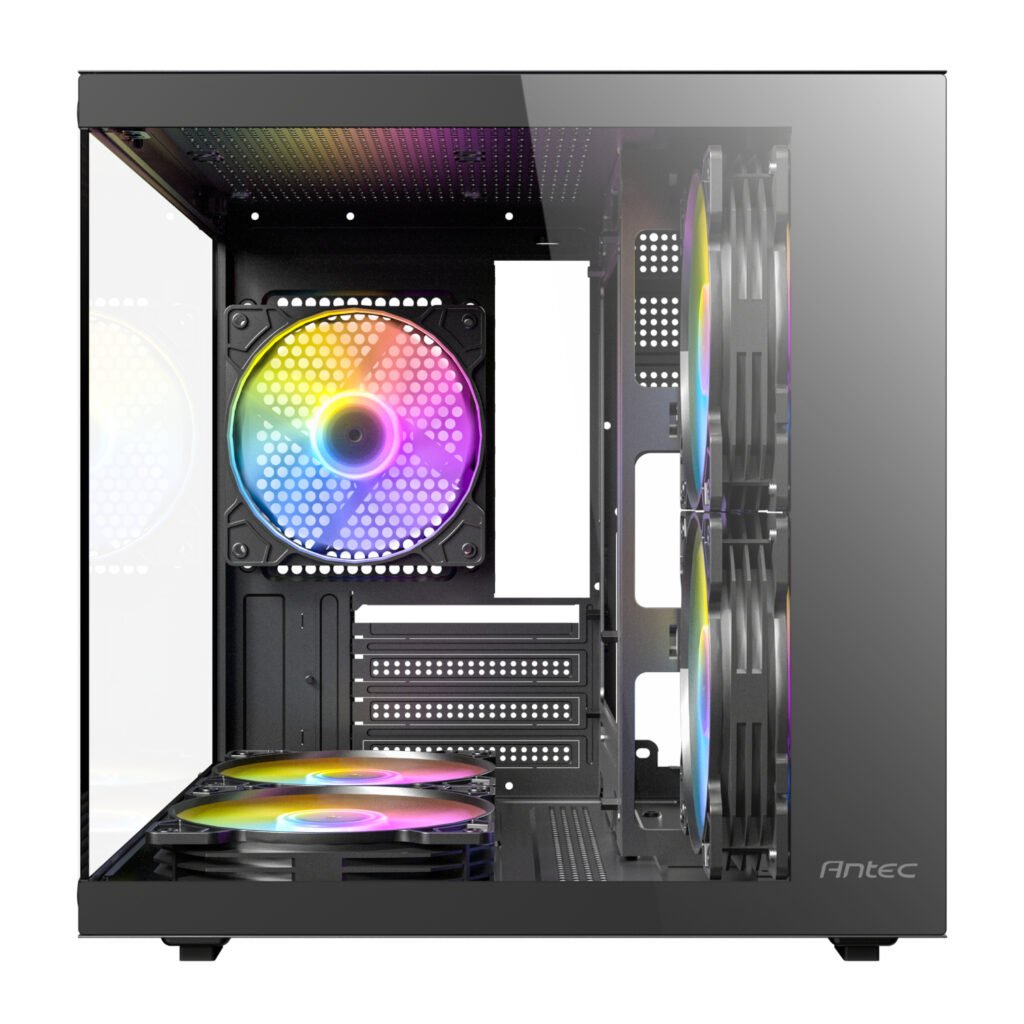

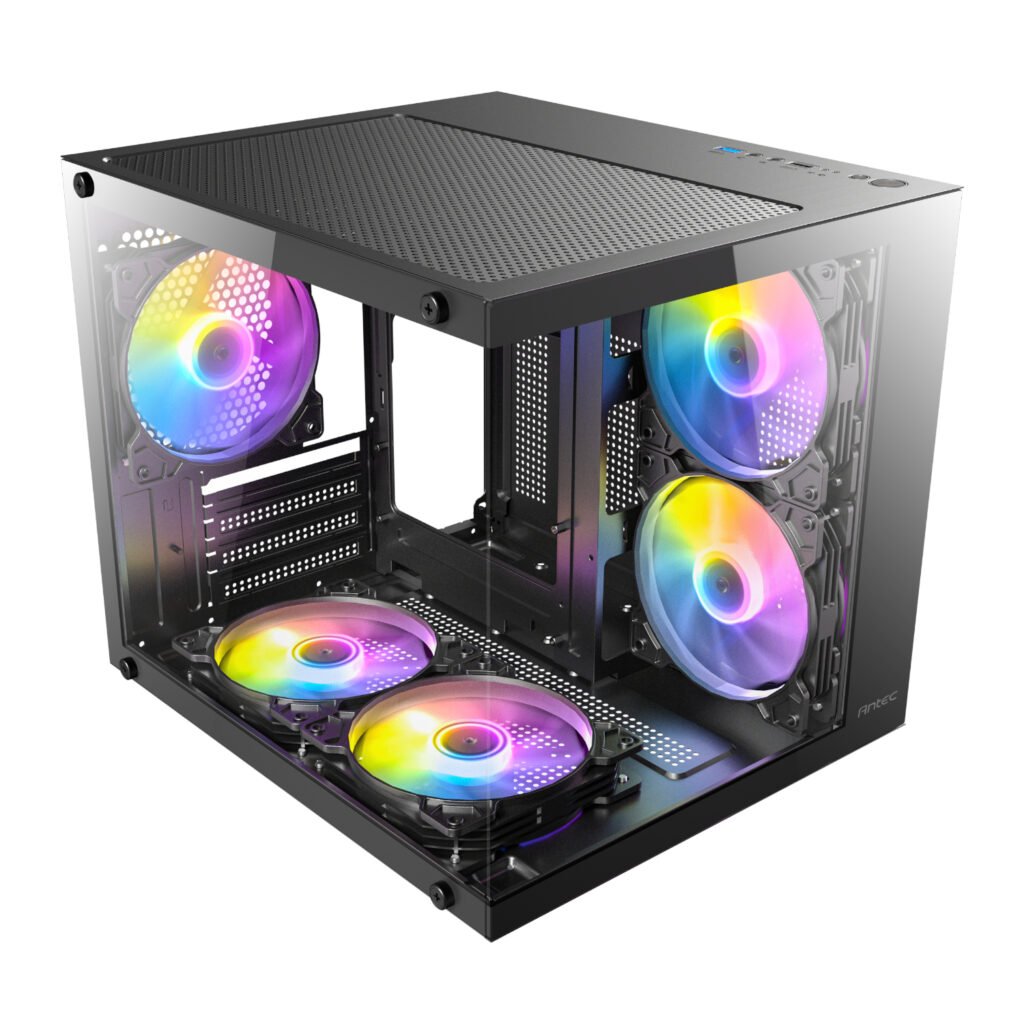

The VCX20M comes pre-equipped with five 120mm RGB fans—two reverse-mounted at the bottom, two on the side and one at the rear—ensuring vibrant lighting and excellent airflow right out of the box. With additional support for up to seven 120mm fans and a 120mm rear radiator, the case is ready for both air and AIO cooling solutions. This vertical airflow design maximises intake from below while effectively exhausting hot air, keeping your compact build cool under pressure.
Despite its smaller size, the VCX20M RGB Elite doesn’t compromise on functionality. With support for GPUs up to 320mm in length, CPU coolers up to 165mm, and PSUs up to 190mm, it delivers versatile hardware compatibility for gaming and productivity builds. The front I/O panel includes USB 3.0, USB 2.0, LED control, and HD audio, providing convenient access to your essential peripherals. Finished with tempered glass panels, a top-mounted dust filter, and modern RGB accents, the Antec VCX20M RGB Elite strikes the perfect balance between compact design, cooling efficiency, and visual appeal.
Specifications:
| Category | Details |
|---|---|
| Brand / Model | Antec VCX20M RGB Elite |
| Case Type | Mini-Tower (Micro-ATX / Mini-ITX) |
| Materials | Steel + tempered glass |
| Side / Front | Panoramic tempered-glass showcase |
| Dimensions (D × W × H) | 334 × 285 × 290 mm |
| Net Weight | ≈ 3.2 kg |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Expansion Slots | 4 |
| Drive Bays | 1 × 3.5″, 2 × 2.5″ |
| CPU Cooler Max Height | ≤ 165 mm |
| GPU Max Length | ≤ 320 mm |
| PSU Max Length (incl. cable) | ≤ 190 mm |
| Cooling — Top | 2 × 120 mm |
| Cooling — Side | 2 × 120 mm |
| Cooling — PSU Shroud (Bottom) | 2 × 120 mm (reverse) |
| Cooling — Rear | 1 × 120 mm |
| Included Fans | 5 × 120 mm RGB (fixed-mode) — 2× side, 2× bottom reverse, 1× rear |
| Radiator Support | Rear: 120 mm |
| Dust Filtration | Top filter |
| Front I/O | Power, LED control, USB-A 3.0 ×1, USB-A 2.0 ×1, HD-Audio |
| Colour | Black |
| Warranty | 1 Year |
