R1031.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Micro-ATX Form Factor
– AMD A520 Chipset
– Socket AM4
– Supports Ryzen 5000 / 5000G / 4000G-Series Processors
– Supports Ryzen 3000 / 3000G-Series Processors
– Supports Ryzen Processors with Radeon Vega Graphics
– 2x DDR4 DIMM Slots, Supports Up to 64GB
– Supports up to DDR4-4733 (OC)
– 1x PCIe 3.0 x16 Slot (x16 Physical)
– 1x PCIe 3.0 x1 Slot (x1 Physical)
– 1x M.2 2280 PCIe 3.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– 4x USB 5Gbps Type-A Ports
– 2x USB 2.0 Type-A Ports
– 1x HDMI 2.0b Port
– 1x VGA D-Sub Port
– 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
– 1x PS/2 Combo Port (Keyboard, Mouse)
– Realtek RTL8111H Gigabit Ethernet RJ-45 LAN Port
– Realtek ALC897 High-Definition Audio Codec
– ASRock A-Tuning Software
– ASRock XFast LAN Utility
– Supports Windows 10, Windows 11 64-bit
– 3 Year Warranty

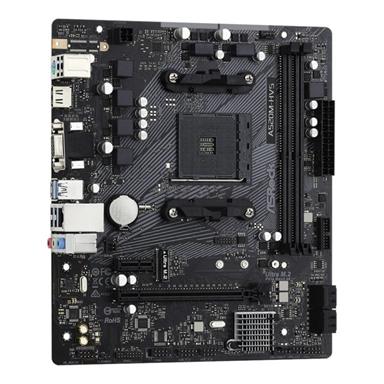

The ASRock A520M-HVS AMD AM4 m-ATX Motherboard is a robust and reliable foundation for building your next PC, offering exceptional performance and versatile connectivity. Built to support AMD AM4 Socket Ryzen™ 3000, 4000 G-Series, and 5000 Desktop Processors, it ensures compatibility with a wide range of CPUs, making it ideal for both gaming and productivity-focused builds. With a 6-phase power Design and ASRock’s premium 50A power chokes, this motherboard delivers improved Vcore voltage stability, ensuring optimal performance under demanding workloads.
Designed for high-speed performance, the A520M-HVS features an Ultra M.2 interface with PCIe Gen3 x4 support, enabling data transfer speeds of up to 32Gb/s. It also supports SATA3 6Gb/s M.2 modules, providing flexibility for modern storage solutions. AMD Smart Access Memory unleashes the full potential of GPU memory, removing performance bottlenecks and delivering a smoother, faster experience. Graphics enthusiasts will appreciate the HDMI 4K 60Hz output, which ensures fluid visuals with enhanced frame rates, as well as additional output options with D-Sub and HDMI ports for versatile display setups.
Built for durability, the A520M-HVS features a High-Density Glass Fabric PCB design that protects against electrical shorts caused by humidity. Its Sapphire Black PCB not only enhances its durability but also adds a sleek, modern aesthetic. The board supports DDR4 memory speeds up to 4733+ (OC), ensuring exceptional performance for demanding applications. With support for 7.1-channel HD audio, Gigabit LAN, and a range of USB 3.2 Gen1 and USB 2.0 ports, this motherboard offers a comprehensive suite of features for creating a reliable and high-performing system. Whether you’re gaming, streaming, or multitasking, the ASRock A520M-HVS delivers exceptional value and performance in a compact m-ATX form factor.
SPECIFICATIONS |
|
| Brand | ASRock |
| Series | A520M Motherboard Series |
| Model | A520M-HVS |
| CPU Support | Supports AMD Ryzen 5000, Ryzen 4000G Processors |
| Supports 3rd Gen AMD Ryzen Processors | |
| Supports Ryzen with Radeon Vega Graphics | |
| Supports 2nd Gen AMD Ryzen with Radeon Graphics | |
| Chipset | AMD A520 Chipset |
| Memory Support | |
| AMD Socket AM4 | 2x DDR4 memory slots, support up to 64GB |
| AMD Ryzen series CPUs (Vermeer) support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Matisse) support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series APUs (Cezanne) support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series APUs (Renoir) support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| Supports Dual Channel mode | |
| Support non-ECC UDIMM memory | |
| Video | |
| VGA D-Sub | 1x VGA D-Sub port, supports a maximum resolution of 2048×1280 @ 60Hz or 1920×1200 @ 60Hz |
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of UltraHD 4K @ 60Hz, Supports HDCP 2.3 and HDR |
| Integrated AMD Radeon graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 3.0 x16 Physical, x16 Electrical Slot |
| AMD A520 Chipset | 1x PCIe 3.0 x1 slot |
| Storage | |
| CPU Direct | 1x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
| AMD A520 Chipset | 4x SATA 6Gbps connectors |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Connectivity | |
| Ports | 4x USB 5Gbps Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port | |
| 1x VGA D-Sub Port | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x PS/2 Combo Port (Keyboard, Mouse) | |
| 1x Realtek RTL8111H Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x SPI TPM Header |
| 1x COM Port Header | |
| 1x Chassis Intrusion and Speaker Header | |
| 1x CPU Fan Connector (4-pin) | |
| 2x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1x 24 pin ATX Power Connector | |
| 1x 4 pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| I/O Controller | N/A |
| LED Displays | N/A |
| BIOS | 1x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| ACPI 5.1, SMBIOS 2.3 | |
| Form Factor | Micro-ATX Form Factor, 230 x 201 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | Quick Installation Guide |
| Support CD | |
| I/O Shield | |
| 2x SATA Data Cables | |
| 1x Screw for M.2 Socket | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Weight | 2 kg |
|---|---|
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
