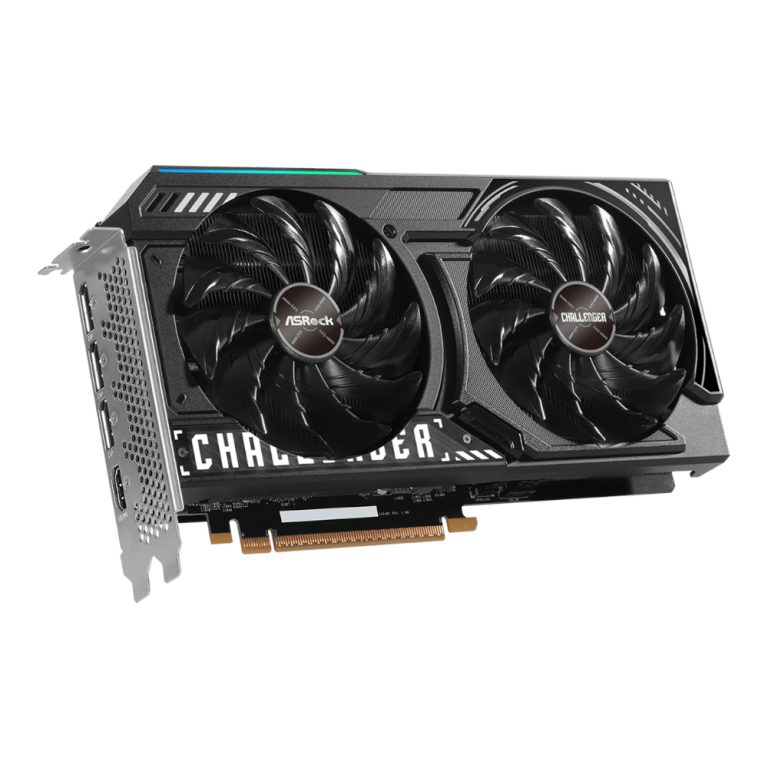

ASRock Arc B580 Challenger OC 12GB GDDR6 192-bit PCIe 4.0 Graphics Card
Original price was: R7062.00.R6490.00Current price is: R6490.00. Incl. Vat
KEY FEATURES:
– Boost Clock: Up to 2740MHz
– Xe Cores: 20 Xe2 Cores
– Intel Xe2-HPG Architecture
– Intel Arc Control Optimisation
– 2nd Gen Xe Super Sampling (XeSS) AI Upscaling Technology
– 2nd Gen Arc Ray Tracing Units
– VESA Adaptive-Sync VRR Technology
– Intel Arc Game On Drivers
– AV1 Decode / Encode Engines
– Video Memory: 12GB GDDR6
– Memory Clock: 19Gbps
– Memory Bus Width: 192-bit
– 1x DisplayPort 2.1 Port (UHBR13.5)
– 2x DisplayPort 2.1 Ports (UHBR10)
– 1x HDMI 2.1a Port
– Multi-Display Capability: 4x Displays
– Maximum Digital Resolution: Up to 7680×4320
– Metal Protective Backplate
– Super Alloy Design
– Supports Windows, Linux
– 3 Year Warranty
Description
ASRock Arc B580 Challenger OC 12GB GDDR6 192-bit PCIe 4.0 Graphics Card
90-GA5LZZ-00UANF
The ASRock Intel Arc B580 Challenger OC 12GB GDDR6 Graphics Card delivers a perfect balance of performance, cooling, and aesthetics. Designed for gamers and creators, this card combines powerful Intel® Arc™ B580 Graphics with a sleek design that features a stylish metal backplate. The Phantom Gaming look not only adds visual appeal but also reinforces the card’s construction. Additionally, a thermal pad on the backplate enhances heat dissipation, contributing to its overall efficiency during demanding tasks.
Optimized cooling is a key highlight of the B580 Challenger. The dual-fan design features ASRock’s custom Striped Axial Fan, which improves airflow using a stripe structure on the fan blades and a polished surface on the bottom side. These fans spin up under heavy loads to maintain optimal cooling and stop when temperatures drop for silent operation. The card’s heat pipes are designed to maximize contact with the GPU baseplate and stacked fins, efficiently transferring heat away from critical components.
ASRock has also integrated thoughtful engineering to improve thermal performance. The use of precise screw torque during assembly ensures optimal cooler mounting pressure, enhancing heat dissipation while protecting the GPU die. The innovative gap isolation between the heat pipes and stacked fins further boosts cooling efficiency, allowing the card to handle intense workloads with ease. A multi-colour LED indicator adds a touch of personalization, making the graphics card visually appealing in any setup.
Packed with cutting-edge features, the ASRock Intel Arc B580 Challenger OC boasts 12GB of 192-bit GDDR6 memory and an engine clock of up to 2740MHz. Built on Intel® Xe2-HPG Architecture, it supports advanced technologies like Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for stunning visuals. With support for resolutions up to 7680 x 4320 and multiple connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this card delivers exceptional performance for gaming and creative applications. Its robust build, efficient cooling, and sleek design make it a reliable choice for high-performance systems.
FEATURES:
- Base Clock: Up to 2740MHz / 19Gbps
- 12GB 192-bit GDDR6
- Intel® Arc™ B580 Graphics
- Intel® Xe2-HPG Architecture
- Intel® Xe Super Sampling 2 (Intel® XeSS 2)
- Intel® Xe Matrix eXtentions (Intel® XMX)
- PCI® Express 4.0 support
- Dual-Fan Design
- Striped Axial Fan
- Stylish Metal Backplate
SPECIFICATIONS |
|
| Brand | ASRock |
| Series | Arc Graphics Series |
| Model | Arc B580 Challenger OC 12GB (B580 CL 12GO) |
| Chipset | |
| GPU | Arc B580 |
| Chipset Manufacturer | Intel |
| Interface | PCIe 4.0 x8 (x16 Physical) |
| Graphics Clock | Up to 2740MHz |
| Xe-Cores | 20 Xe2 Cores |
| Render Slices | 5x slices |
| Ray Tracing Units | 20x second-generation RT units |
| Intel Xe Matrix Extensions (Intel XMX) Engines | 160 engines |
| Xe Vector Engines | 160 engines |
| Lithography Type | TSMC N5 Process |
| GPU Architecture | Intel Battlemage |
| Memory | |
| Effective Memory Clock | 19 Gbps |
| Memory Bandwidth | 465 GB/s |
| Memory Size | 12GB |
| Memory Interface | 192-bit |
| Memory Type | GDDR6 |
| Supported Technologies | |
| DirectX | DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Vulkan | 1.3 |
| OpenCL | 3.0 |
| Ray Tracing | Yes |
| Variable Rate Shading (VRS) | Yes |
| Adaptive Sync | Yes |
| Multi-Format Codec Engines | 2 |
| Intel Extension for PyTorch* (IPEX) | Yes, supported (software features may vary) |
| Connectivity | |
| Ports | 1x DisplayPort 2.1 port (UHBR13.5) |
| 2x DisplayPort 2.1 ports (UHBR10) | |
| 1x HDMI 2.1a port | |
| Multi-Monitor Support | 4 |
| Maximum Digital Resolution | 7680 x 4320@60Hz |
| General | |
| Features | H.264 Hardware Encode/Decode |
| H.265 (HEVC) Hardware Encode/Decode | |
| AV1 Encode/Decode | |
| VP9 Bitstream & Decoding | |
| Intel Deep Link Hyper Compute | |
| Intel Deep Link Hyper Encode | |
| Intel Deep Link Stream Assist | |
| Intel Xe Super Sampling (XeSS) | |
| Intel Xe HPG Microarchitecture | |
| Power Requirements | |
| Recommended Power Supply | 650W |
| TBP | 220W |
| Power Connector | 1x 8-Pin PCI PEG Connector |
| Form Factor | ATX |
| Slot Width | Dual-slot |
| Dimensions | 249 x 132 x 41mm (L x W x H) |
| Weight | 0.720kg |
| Unique Features | Dual Fan Design |
| Stylish Metal Backplate | |
| Striped Axial Fan | |
| LED Indicator | |
| 0dB Silent Cooling | |
| Super Alloy Graphics Card | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
