Description
ModelB450M-HDVR4

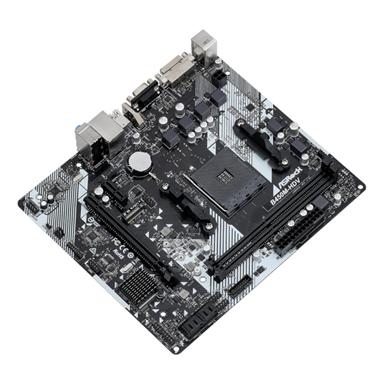

The ASRock B450M-HDV R4.0 AMD AM4 m-ATX Motherboard is a versatile and cost-effective choice for building a high-performance PC. Designed to support AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, and 5000 Desktop Processors, it offers broad compatibility, ensuring a smooth experience for gaming, multitasking, and productivity. With a 6 Power Phase Design, it provides stable power delivery for reliable performance under demanding conditions.
This motherboard is equipped with 2 DIMM slots, supporting DDR4 memory up to 3200+(OC) for faster data processing and efficient multitasking. It also features a PCIe 3.0 x16 slot and Ultra M.2 interface with support for PCIe Gen3 x4 and SATA3, enabling ultra-fast data transfer speeds for modern NVMe SSDs. With 4 SATA3 ports and RAID 0, 1, and 10 support, you can configure flexible and reliable storage solutions to meet your needs.
For multimedia and connectivity, the B450M-HDV R4.0 offers a wide array of options, including HDMI, DVI-D, and D-Sub outputs, providing flexibility for multi-monitor setups. Enjoy immersive audio with 7.1-channel HD sound powered by Realtek ALC887/897 Audio Codec, while Realtek Gigabit LAN ensures stable and high-speed internet connectivity. With 6 USB 3.1 Gen1 ports (2 front, 4 rear), this m-ATX motherboard combines functionality, reliability, and performance in a compact design, making it ideal for both first-time builders and seasoned enthusiasts.
FEATURES:
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
SPECIFICATIONS |
|
| Brand | ASRock |
| Series | B450M Motherboard Series |
| Model | B450M-HDV R4.0 |
| CPU Support | Supports AMD Ryzen 5000 Processors |
| Supports 1st, 2nd and 3rd Gen AMD Ryzen Processors | |
| Supports Ryzen with Radeon Vega Graphics | |
| Supports 2nd Gen AMD Ryzen with Radeon Graphics | |
| Chipset | AMD B450 Chipset |
| Memory Support | |
| AMD Socket AM4 | 2x DDR4 memory slots, support up to 64GB |
| AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200 (OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200 (OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory | |
| AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200 (OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory | |
| Supports Dual Channel mode | |
| Support non-ECC UDIMM memory | |
| Video | |
| VGA D-Sub | 1x VGA D-Sub port, supports a maximum resolution of 2048×1280 @ 60Hz or 1920×1200 @ 60Hz |
| DVI-D | 1x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz |
| HDMI | 1x HDMI 1.4b port, supports a maximum resolution of UltraHD 4K @ 30Hz, Supports HDCP 1.4 and HDR |
| Integrated AMD Radeon graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 3.0 x16 Physical, x16 Electrical Slot |
| AMD B450 Chipset | 1x PCIe 2.0 x1 slot |
| Storage | |
| CPU Direct | 1x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| M.2_1 supports PCIe 3.0 x2 on AMD Ryzen 2000 and older processors | |
| AMD B450 Chipset | 4x SATA 6Gbps connectors |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Connectivity | |

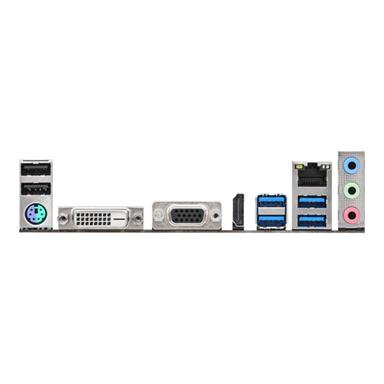

| Ports | 4x USB 5Gbps Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 1.4b Port | |
| 1x VGA D-Sub Port | |
| 1x DVI-D Port | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x PS/2 Combo Port (Keyboard, Mouse) | |
| 1x Realtek RTL8111H Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x COM Port Header |
| 1x TPM Header | |
| 1x Chassis Intrusion and Speaker Header | |
| 1x CPU Fan Connector (4-pin) | |
| 2x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin) | |
| 1x 24 pin ATX Power Connector | |
| 1x 4 pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) | |
| I/O Controller | N/A |
| LED Displays | N/A |
| BIOS | 1x 128 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| ACPI 5.1, SMBIOS 2.3 | |
| Form Factor | Micro-ATX Form Factor, 230 x 201 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | Quick Installation Guide |
| Support CD | |
| I/O Shield | |
| 2x SATA Data Cables | |
| 1x Screw for M.2 Socket | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
