Description
Optimized VRM Design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
High Speed M.2 Solution
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
EZ Setting
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

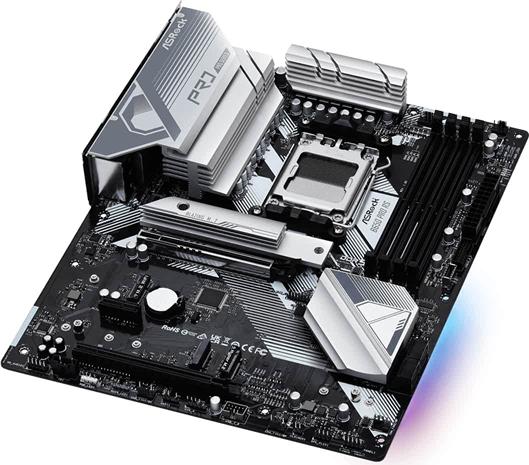

| SPECIFICATIONS | |
| Brand | ASRock |
| Series | PRO |
| Model | B650 PRO RS |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory Support | |
| AMD Ryzen 7000 Series | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots Up to 128GB | |
| Supports DDR5 non-ECC, un-buffered memory up to 6200MT/s (OC) | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| DisplayPort | 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Integrated AMD RDNA 2 graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot (PCIE1) |
| 1x PCIe 3.0 x16 Physical, x4 Electrical Slot (PCIE3) | |
| AMD B650E Chipset | 1 x PCIe 4.0 x1 Physical Slot |
| Supports AMD CrossFire | |
| Supports NVMe SSD as boot disk | |
| Storage | |
| CPU Direct | 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| AMD B650E Chipset | 1x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes |
| 1x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 2x SATA3 6.0 Gb/s Connectors | |
| ASMedia ASM1061 Chipset | 2x SATA3 6.0 Gb/s Connectors |
| Supports ASRock U.2 Kit | |
| Supports RAID 0 and RAID 1 for SATA storage devices | |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| Networking | |
| LAN | Realtek Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon 2.5G LAN Software | |
| WiFi | N/A, reserved M.2 Key E Slot for WiFi cards |
| Bluetooth | N/A |
| Audio | |
| Codec | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |

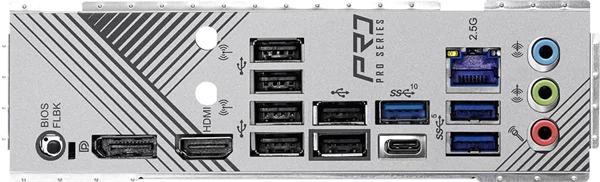

| Connectivity | |
| Ports | 2x Antenna Mounting Points |
| 1x HDMI Port | |
| 1x DisplayPort 1.4 | |
| 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| 2x USB 3.2 Gen1 Ports | |
| 6x USB 2.0 Ports | |
| 1x RJ-45 LAN Port | |
| 1x BIOS Flashback Button | |
| 2x 3.5mm HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Buttons | 1x BIOS Flashback Button |
| General | |
| Internal Connectors | 1x SPI TPM Header |
| 1x Power LED and Speaker Header | |
| 1x RGB LED Header | |
| 3x Addressable LED Headers | |
| 1x CPU Fan Connector (4-pin) | |
| 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1x 24 pin ATX Power Connector | |
| 1x 8 pin 12V Power Connector | |
| 1x 4 pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| 2x USB 2.0 Headers (Support 3 USB 2.0 ports) | |
| 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
| LED Displays | ASRock LED Diagnostic Display |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 1x User Manual |
| 2x SATA Data Cables | |
| 2x Screws for M.2 Sockets | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
