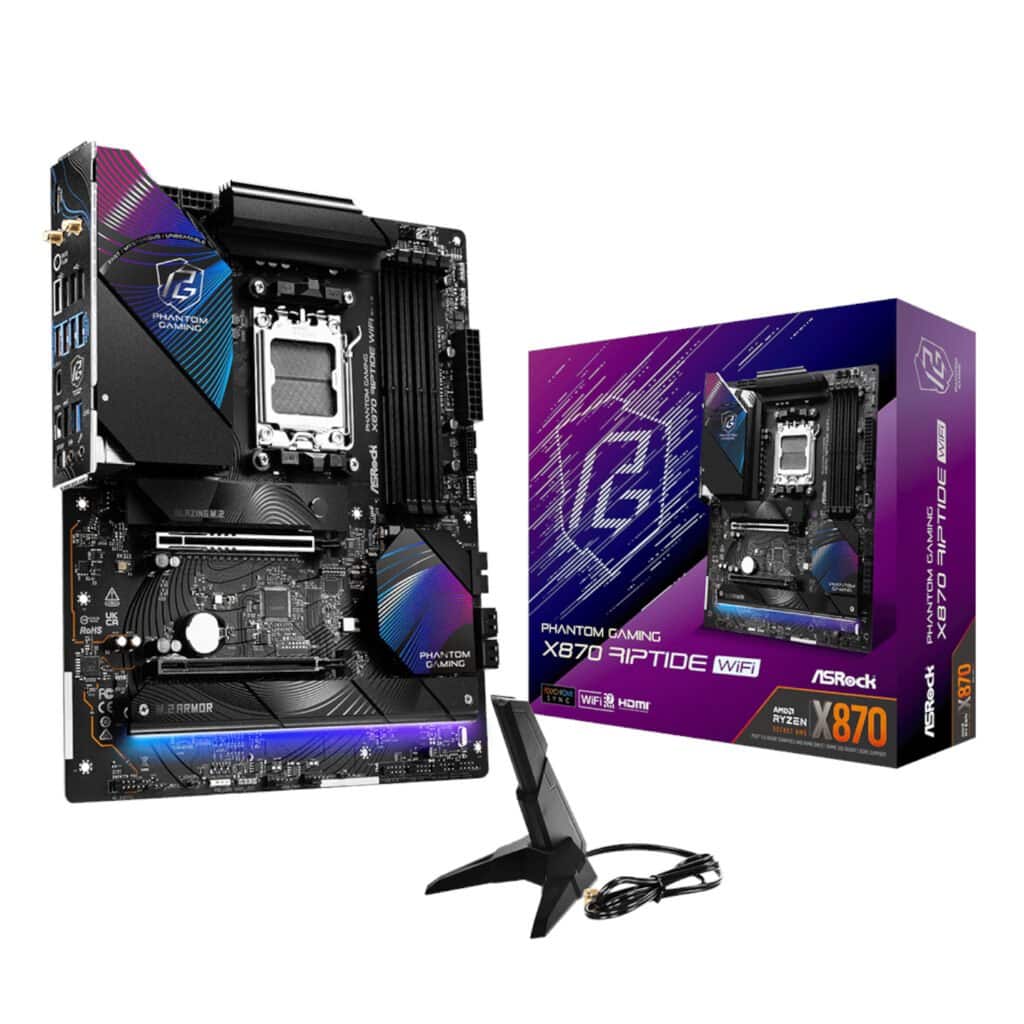

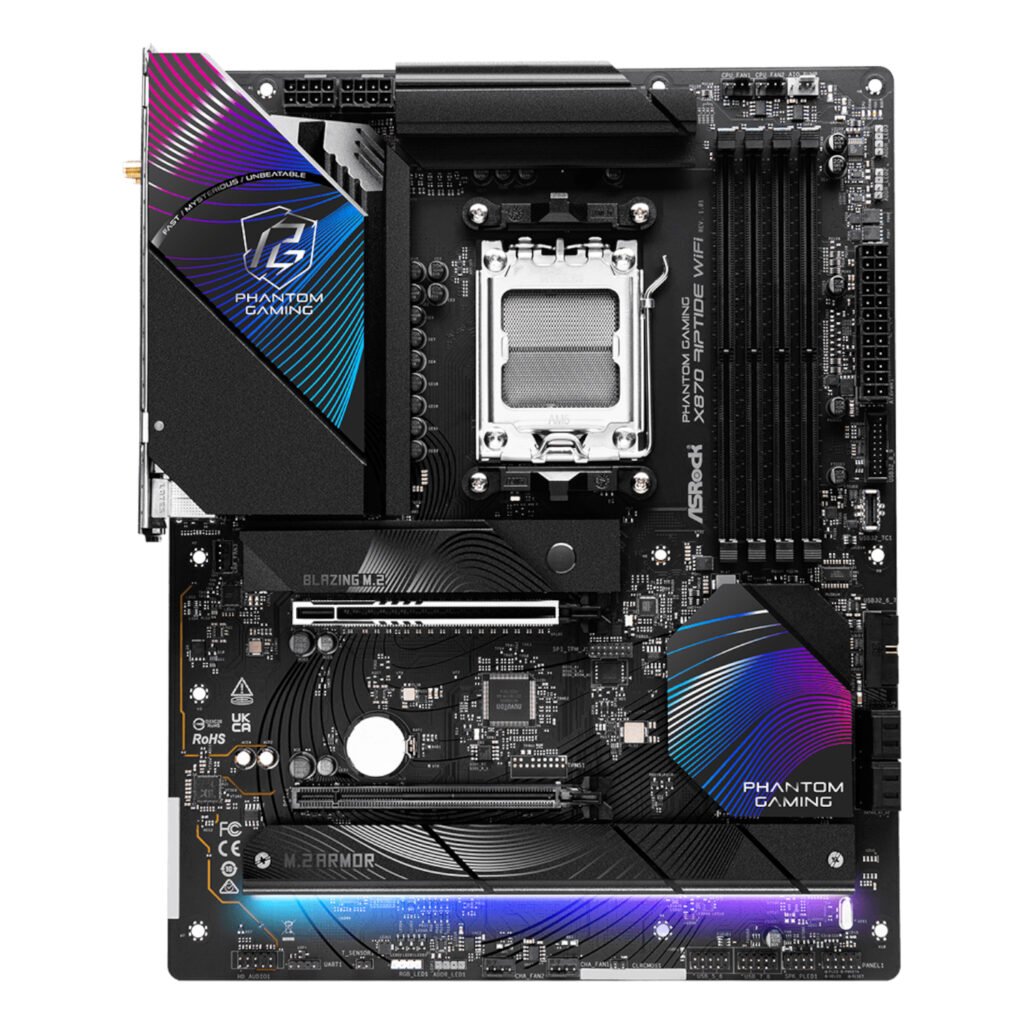

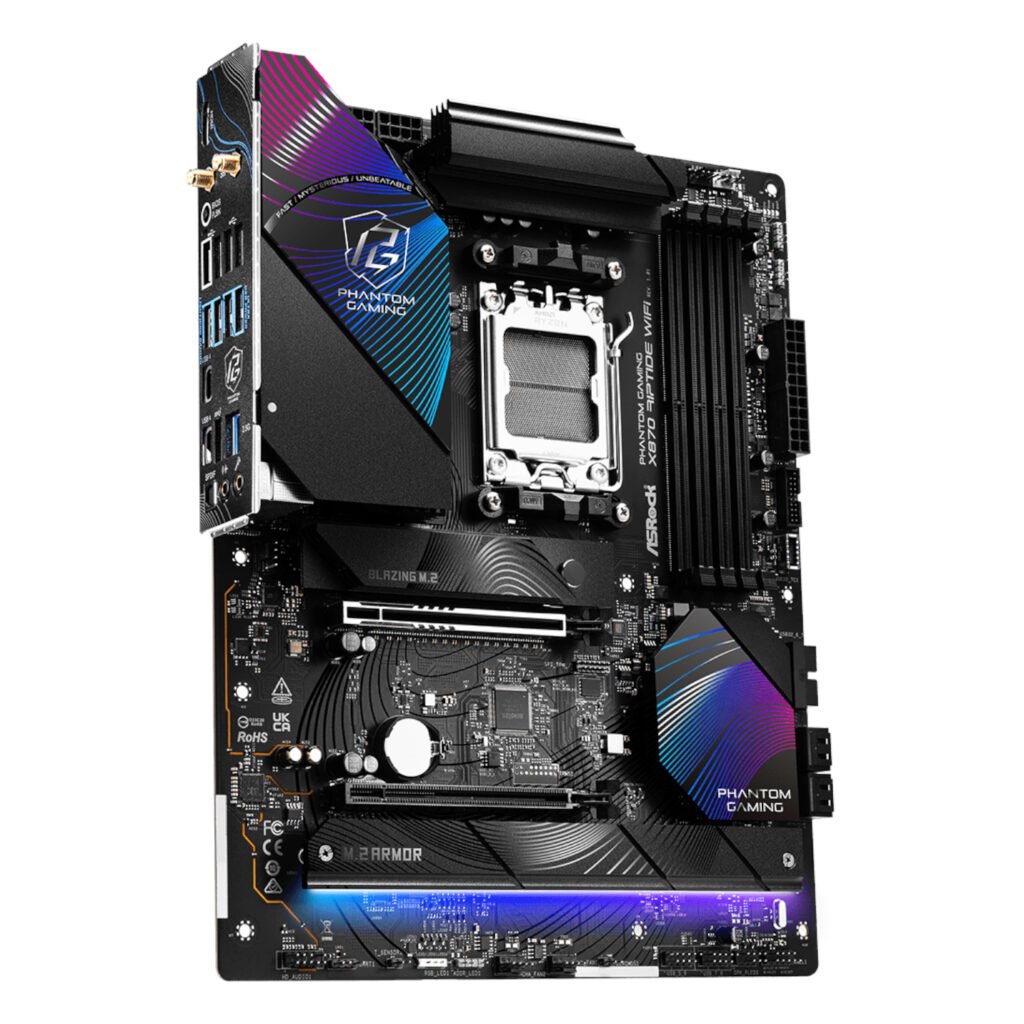

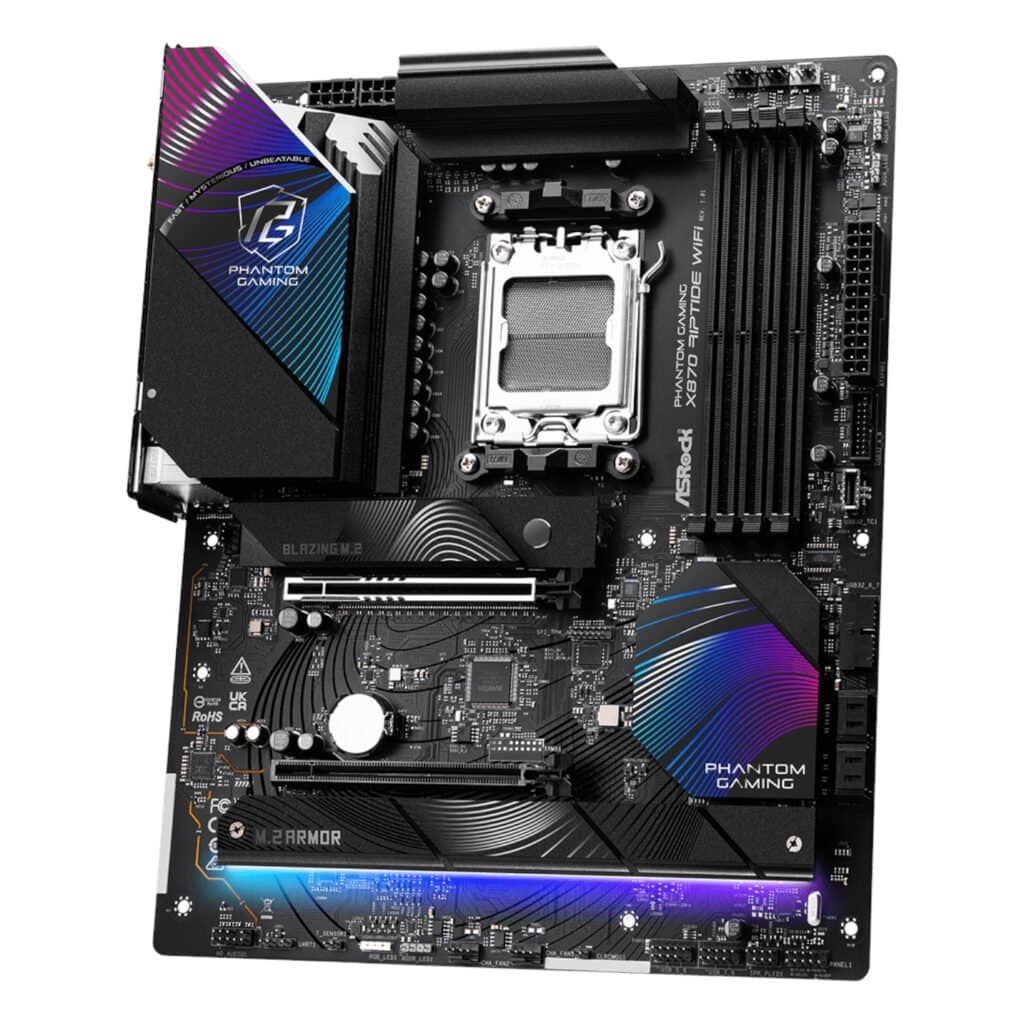

ASRock Phantom Gaming X870 Riptide WiFi AMD X870 Ryzen Socket AM5 ATX Motherboard
Original price was: R6693.00.R6251.00Current price is: R6251.00. Incl. Vat
Or as low as KEY FEATURES:
– ATX Form Factor
– AMD X870 Chipset
– Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
– 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
– Supports Up to DDR5-8000 (OC)
– Supports AMD EXPO & Intel XMP 3.0 Modules
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
– 2x M.2 2280 PCIe 4.0 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 20Gbps Type-C Ports
– 2x USB 40Gbps Type-C Ports with DisplayPort
– 2x USB 10Gbps Type-A Port
– 3x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 Port (FRL)
– 2x 3.5mm Audio Jacks, 1x S/PDIF Optical Port
– 2x SMA Connectors
– Intel Killer E3100G 2.5 Gigabit Ethernet RJ-45 LAN Port
– WiFi 7 Tri-Band Adapter, Bluetooth 5.4
– Realtek ALC4082 High-Definition Audio Codec
– Nahimic Audio Certified
– 14+2+1 Power Phase with Dr.MOS & Heatsink Armour
– EZ Update BIOS Flashback Button
– ASRock PolyChrome RGB Sync
– Supports Windows 11
– 3 Year Warranty
Description
ASRock Phantom Gaming X870 Riptide WiFi AMD X870 Ryzen Socket AM5 ATX Motherboard
X870-RIPTIDEWIFI
Experience the cutting edge of gaming performance and system flexibility with the ASRock X870 Riptide AM5 Wi-Fi Phantom Gaming Motherboard, engineered for enthusiasts who demand power, precision, and personalization. Designed around the powerful AMD X870 chipset and AM5 socket, this high-performance motherboard supports the latest Ryzen™ 9000, 8000, and 7000 Series processors, delivering exceptional responsiveness across gaming, streaming, and content creation. Featuring an 8-layer PCB, the X870 Riptide ensures superior thermal and power efficiency—perfect for extreme DDR5 memory overclocking up to 8000+ MHz. Whether you’re fine-tuning performance via AMD EXPO™ profiles or pushing your system to the edge, the Riptide offers rock-solid reliability with a sleek, gamer-centric aesthetic.
Connectivity and expansion are at the heart of the X870 Riptide. It supports PCIe 5.0 graphics cards and Gen5 NVMe SSDs, with a Blazing M.2 slot that achieves up to 128 Gb/s transfer rates for next-gen storage. With three M.2 slots, 4 SATA3 connectors, and a reinforced Steel PCIe x16 slot for GPU stability, the board balances power and expandability. Users benefit from USB4 Type-C ports offering up to 40 Gb/s of data throughput, along with USB 3.2 Gen2x2 front panel Type-C, making high-speed data access simple and future-proof. Networking is equally robust with Killer 2.5Gb LAN and Wi-Fi 7 + Bluetooth 5.4, delivering seamless online gameplay and ultra-low latency.
Audio and aesthetics haven’t been overlooked. Nahimic 7.1 HD Audio powered by the Realtek ALC4082 codec immerses gamers with crisp, spatial sound, while Polychrome SYNC and SignalRGB support allow for synchronized, addressable RGB lighting across your entire rig. The advanced aluminum heatsink design and M.2 heatsinks ensure top-tier thermal performance, keeping even the most demanding setups cool. Whether you’re building your dream gaming PC or an elite workstation, the ASRock X870 Riptide delivers everything you need—and more—to ride the wave of next-gen performance.
FEATURES:
- AMD AM5 socket supports Ryzen 9000, 8000, and 7000 Series processors
- PCIe 5.0 x16 Steel Slot for next-gen GPU bandwidth and durability
- Blazing-fast Wi-Fi 7 and 2.5G LAN for ultra-low-latency connectivity
- Supports DDR5 memory overclocking up to 8000+ MHz for extreme performance
- Three M.2 slots, including one Hyper Gen5 x4 for lightning-fast NVMe storage
- Extra large aluminum alloy M.2 heatsink effectively improves heat dissipation
- Enhanced USB4 Type-C technology brings speed and versatility
- Nahimic Audio offers you the most engaging listening experience
- Polychrome SYNC for vivid, addressable lighting control
SPECIFICATIONS |
|
| Brand | ASRock |
| Series | Phantom Gaming Series |
| Model | Phantom Gaming X870 Riptide WiFi |
| CPU Support | Supports Ryzen 7000, 8000, 9000-Series Processors |
| Chipset | AMD X870 Chipset |
| Memory Support | |
| AMD X870 Chipset | Dual Channel DDR5 Memory Technology |
| 4x DDR5 DIMM Slots | |
| Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000 (OC)* | |
| Max. capacity of system memory: 256GB | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| Video | |
| DisplayPort | 2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 8K @ 30 Hz, supports DisplayPort 1.4, HDCP & HDR |
| HDMI | 1x HDMI 2.1 FRL Port, supporting a maximum resolution of 8K @ 60 Hz, supports HDCP, VRR & HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Slot (x16 Physical)(PCIE1) |
| AMD X870 Chipset | 1x PCIe 4.0 x4 Slot (x16 Physical)(PCIE2) |
| Slot Configurations | PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| PCIE2 will be disabled if M.2_3 is occupied | |
| Storage | |
| CPU Direct | 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 |
| AMD X870 Chipset | 1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| 1x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| ASMedia ASM1061 Chipset | 4x SATA 6Gbps connectors |
| NOTE: | PCIE2 will be disabled if M.2_3 is occupied |
| RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Storage Configurations | M2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Networking | |
| LAN | Intel Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mbps |
| WiFi | WiFi 7 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek ALC4082 High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking, jack detection | |
| Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) | |
| Nahimic Audio | |

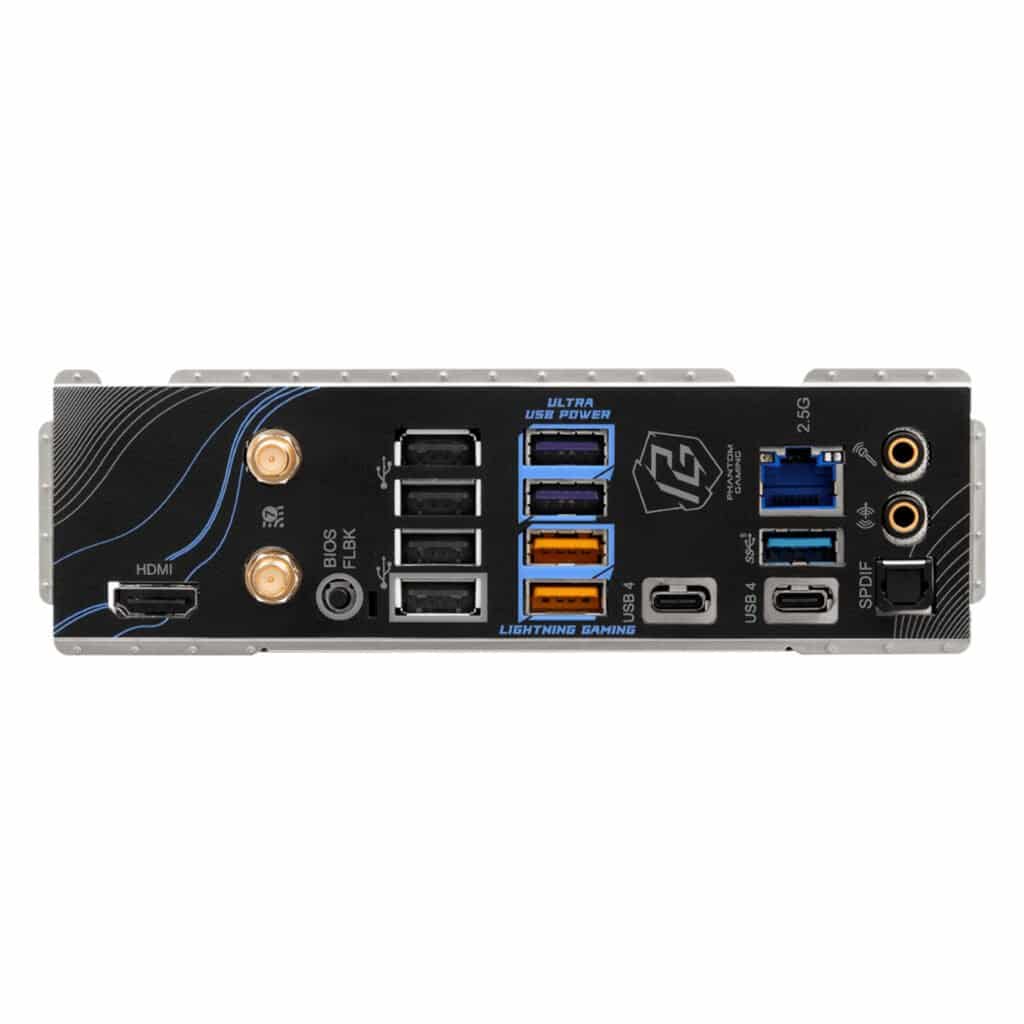

| Connectivity | |
| Ports | 2x USB 40Gbps Type-C Ports with DisplayPort |
| 2x USB 10Gbps Type-A Port | |
| 3x USB 5Gbps Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port (FRL) | |
| 2x 3.5mm Audio Jacks | |
| 1x S/PDIF Optical Port | |
| 2x SMA Connectors | |
| Buttons | 1x EZ Update BIOS Flashback Button |
| General | |
| Internal Connectors | 1x Thermistor Cable Header |
| 1x SPI TPM Header | |
| 1x Power LED and Speaker Header | |
| 1x RGB LED Header | |
| 3x Addressable LED Headers | |
| 2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 3x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 1x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 2x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| 1x Front Panel Audio Connector | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| I/O Controller | N/A |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Boxed Accessories | 2x SATA Data Cables |
| 1x ASRock WiFi 2.4/5/6 GHz Antenna | |
| 1x ARGB Splitter Cable | |
| 1x Thermistor Cable | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
