R17197.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Game Clock: Up to 2570 MHz
– Boost Clock: Up to 3100 MHz
– Stream Processors: 4096
– AMD RDNA 4 Architecture
– 3rd Gen Radeon Raytracing Accelerators
– 2nd Gen Radeon AI Accelerators
– AMD HYPR-RX with Fluid Motion Frames
– AMD Fidelity FX Super Resolution 4.0 Upscaling Technology
– AV1 Decode / Encode Engines
– Video Memory: 16GB GDDR6
– Infinity Cache: 64MB
– Memory Bus Width: 256-bit
– 3x DisplayPort 2.1, 1x HDMI 2.1 Ports
– Multi-Display Capability: 4x Displays

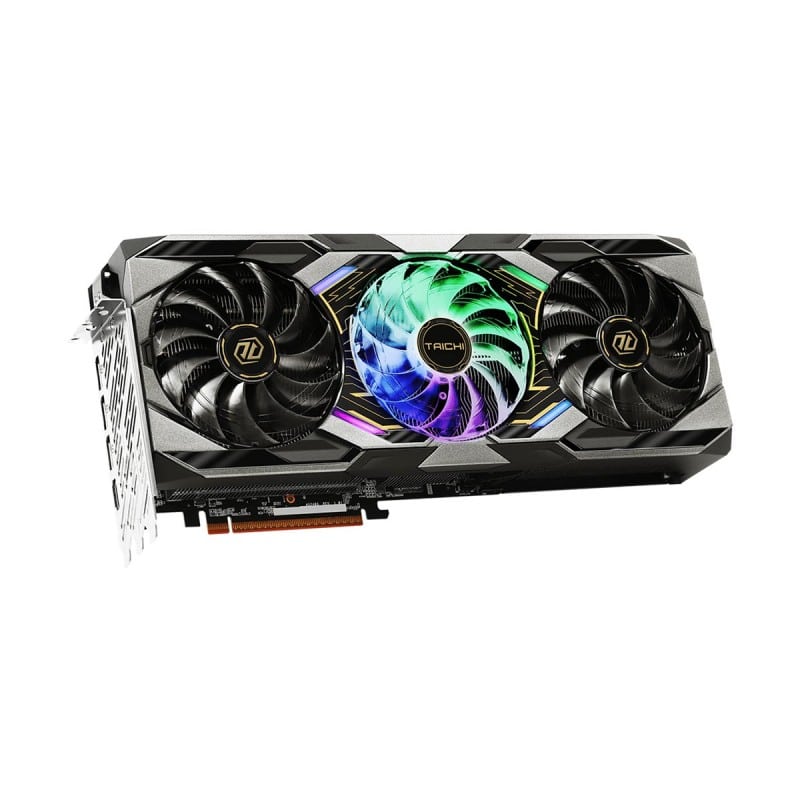

– Taichi 3X Cooling System with Striped Ring Fans
– Ultra Fit Heatpipe Block Cooler
– Ventilated Metal Back Plate
– ASRock PolyChrome RGB Utility
– 3 Year Warranty
SPECIFICATIONS |
|
| Brand | ASRock |
| Series | Taichi Series |
| Model | Radeon RX 9070 XT Taichi (RX9070XT TC 16GO) |
| Chipset | |
| GPU | Radeon RX 9070 XT |
| Chipset Manufacturer | AMD |
| Interface | PCIe 5.0 x16 |
| Compute Units | 64 Compute Units |
| Ray Accelerators | 64 units, gen 3 |
| Stream Processors | 4096 Unified |
| AI Accelerators | 128 accelerators, gen 2 |
| Base Clock | TBD |
| Game Clock | Up to 2570 MHz |
| Boost Clock | Up to 3100 MHz |
| GPU Architecture | AMD RDNA 4 Architecture |
| GPU Design | TSMC 4nm Monolithic Die |
| Memory | |
| Infinity Cache | 64MB |
| Effective Memory Clock | 20Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| 3D API Support | |
| DirectX | Direct3D 12_2 Ultimate |
| OpenGL | OpenGL 4.6 |
| OpenCL | OpenCL 2.2 |
| Vulkan | Vulkan 1.3 |
| Shader Model | Shader Model 6.7 |
| Connectivity | |

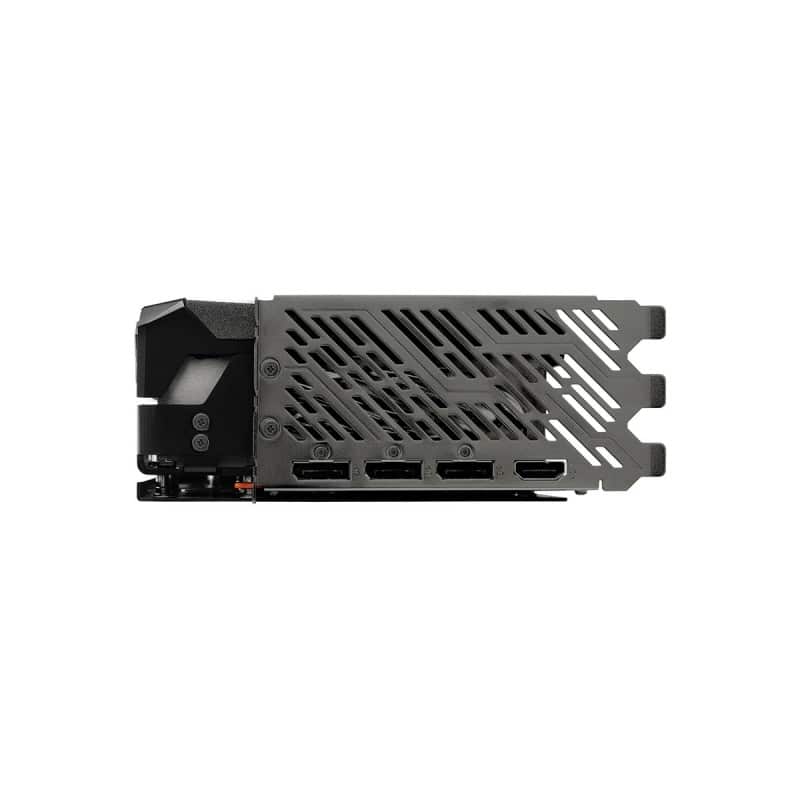

| Ports | 3x DisplayPort 2.1 with HDCP 2.3 (UHBR20) |
| 1x HDMI 2.1 with HDCP 2.3 (FRL 48Gbps) | |
| HDMI 4K Support | Yes, Up to UltraHD 4K 120Hz |
| VR Ready | Yes, Radeon VR Ready Premium |
| General | |
| Features | Taichi 3X Cooling System with Striped Ring Fans |
| Ultra Fit Heatpipe Block Cooler | |
| ASRock PolyChrome RGB Utility | |
| Ventilated Metal Back Plate | |
| AMD FreeSync Technology | |
| DisplayPort 2.1 | |
| HDMI 2.1 VRR | |
| HDMI 4K Support | |
| DisplayPort 2.1 8K Support | |
| Simultaneous AV1 & HEVC Encode and Decode. | |
| 8K60 AV1 / H265 / HEVC Decode | |
| 8K60 AV1 / H265 / HEVC Encode | |
| Video Streaming up to 8K | |
| AMD HYPR-RX Game Optimisation | |
| AMD Radeon FreeSync Premium | |
| AMD Radeon Pro Drivers | |
| AMD Radeon VR Ready Premium | |
| AMD FidelityFX Super Resolution | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Radeon Chill | |
| AMD Radeon Software | |
| Hardware-Accelerated Ray Tracing | |
| Power Requirements | |
| Total Graphics Power (TGP) | 340W |
| Minimum Recommended Power Supply | 850W |
| Power Connector | 1x 12V-2×6 16-Pin Connector (or 3x 8-Pin PCI PEG connectors, adapter included) |
| General | |
| Form Factor | ATX |
| Slot Width | 3.0 Slot |
| Dimensions | 330 x 140 x 61mm (L x H x W) |
| Weight | 1.554kg |
| Operating System Support | Windows 11 64-bit |
| Ubuntu x86 64-Bit | |
| Linux x86_64 | |
| Accessories | 1x Quick Installation Guide |
| 1x 16Pin to 3×8 Pin Power Cable | |
| 1x Graphics Card Stand | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Weight | 2.5 kg |
|---|---|
| GPU Brand | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Video Connectors | |
| GPU Series |
