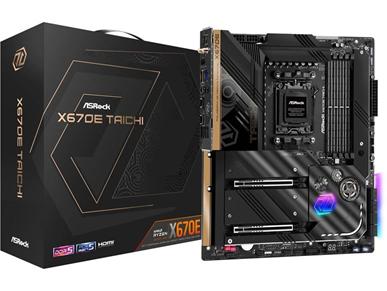

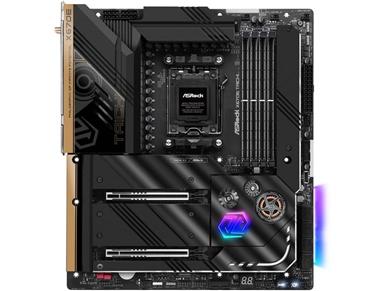

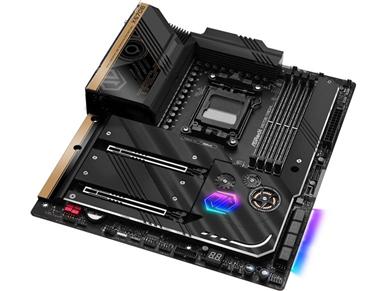

ASRock X670E Taichi AMD X670E Ryzen Socket AM5 E-ATX Desktop Motherboard

Philosophy of Infinite Potential

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

Optimised VRM Design

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

24+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Server Grade Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

8 Layer PCB design

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

DDR5 Memory with Protection Circuit

Reinforced DIMM Slot

The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

DIY Friendly Design

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

KiLLER Networking

KiLLER E3100 + AX1675

The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

KiLLER Doubleshot Pro

Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.

Benefits

• • Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.

• • Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.

• • Maximum Control: Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don’t interfere with higher priority apps.

USB4 Type-C

Enhanced USB4 Type-C

USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and supports up to 9V@3A 27W with the next generation PD 3.0 for superfast charging!

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!
*Actual charging rate may differ between devices.

High Definition Sound Effects

ESS SABRE9218 DAC

Embrace the audio stunning performance with ES9218 SABRE DAC!

• • True Hi-Fi Audio. No distorted digital signal

• • 130dB SNR

• • 112dB THD+N and supports higher impedance up to 600 Ω headphone

WIMA Audio Cap

Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

• • Static Noise Suppression

• • Echo Cancellation

• • Lateral Sound Cancellation

• • Voice Stabilizer

Ultimate Gaming Experience

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

High Speed M.2 Solution

PCIe Gen5 x4 for SSD

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

M.2 Fan-Heatsink

To unleash the full potential of the latest PCIe 5.0 M.2 SSD, a M.2 Fan Sink was specially designed for ASRock motherboard. It is able to deliver maximum cooling performance for stability and maintaining top performance.

Anti-Drop Screw

Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
*The availability of Wi-Fi 6E (6GHz) may vary between different countries.

Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

EZ Setting

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

• • Step 1: Install Auto Driver Installer

• • Step 2: ADI will automatically download and install all necessary drivers.

• • Step 3: Done!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Flexible Integrated IO Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

SPECIFICATIONS
Brand	ASRock
Series	Taichi
Model	X670E Taichi
CPU Support	AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD X670 / X670E
Memory Support
AMD Ryzen 7000 Series	Dual Channel DDR5 Memory Technology
	4 x DDR5 DIMM Slots Up to 128GB
	Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600 (OC)
	1DPC 1R Up to 6600 MHz (OC), 4800 MHz Natively.
	1DPC 2R Up to 6000 MHz (OC), 4800 MHz Natively.
	2DPC 1R Up to 6000 MHz (OC), 4000 MHz Natively.
	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Video
HDMI	1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
DisplayPort	2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz
	* Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics.
	* USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.
Expansion Slots
CPU Direct	2x PCIe 5.0 x16 Physical, x16 Electrical Slots
	PCIe 5.0 Slots support x16/x0 or x8/x8 Modes **
	Supports AMD Crossfire
	Supports NVMe SSD as boot disk
Storage
CPU Direct	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
AMD X670 Chipset	1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes *
	1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
	1x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
	4x SATA3 6.0 Gb/s Connectors
	* If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled.
ASMedia ASM1061 Chipset	4x SATA3 6.0 Gb/s Connectors
Networking
LAN	Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	Supports Killer LAN Software
	Supports Killer DoubleShot Pro
WiFi	AMD WiFi 6E 2×2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek ALC4082 Audio Codec 5.1 CH HD Audio with Content Protection
	Individual PCB Layers for R/L Audio Channel
	Impedance Sensing on Rear Out port
	Nahimic Audio
DAC	ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
DAC Features	WIMA Audio Capacitors (For Front Outputs)
	Individual PCB Layers for R/L Audio Channel
Connectivity

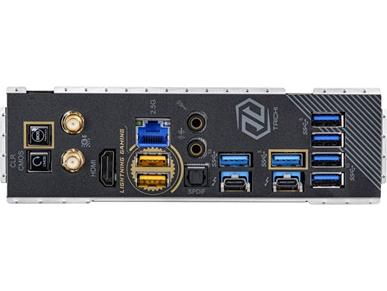

Ports	2x USB 4.0 40Gbps Type-C Intel JHL8540 Ports
	5x USB 3.2 Gen 2 10Gbps Type-A Ports
	3x USB 3.2 Gen 1 5Gbps Type-A Ports
	1x HDMI 2.1
	2x 3.5mm Audio Ports (Line Out, Microphone)
	1x S/PDIF Optical Audio Out
	2x SMA Connectors for WiFi Antennas
Buttons	1x BIOS FlashBack Button
	1x Clear CMOS button
General
Internal Connectors	1x Power LED and Speaker Header
	1x RGB LED Header
	3x Addressable LED Headers
	1x CPU Fan Connector (4-pin)
	1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	6x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector (Hi-Density Power Connector)
	2x 8 pin 12V Power Connectors (Hi-Density Power Connector)
	1x Front Panel Audio Connector (15μ Gold Audio Connector)
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
	1x Dr. Debug with LED
	1x Power Button with LED
	1x Reset Button with LED
LED Displays	ASRock DEBUG LED Diagnostic Display
BIOS	UEFI AMI BIOS
	128 Mb Flash ROM
	ACPI 6.0 Compliant wake up events
	SMBIOS 2.7 Support
	CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment
Form Factor	EATX Form Factor, 305 x 267 mm (H x W)
Operating System Support	Windows 10 64-bit
	Windows 11 64-bit
Box Contents	1x User Manual
	4x SATA Data Cables
	1x Wireless Dongle USB Bracket
	1x Blazing M.2 Gen5 Fan Heatsink
	1x ASRock WiFi 2.4/5/6 GHz Antenna
	4x Screws for M.2 Sockets
	1x Standoff for M.2 Socket
Warranty Information
Warranty	3 Year Warranty
