Description
20 Years of Innovation and Goes on! Taichi Carrara resembles the high strength as well as the esthetic of Carrara marble, the key elements while developing this motherboard
Optimized VRM Design
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Premium PCB Design
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
| SPECIFICATIONS | |
| Brand | ASRock |
| Series | Taichi |

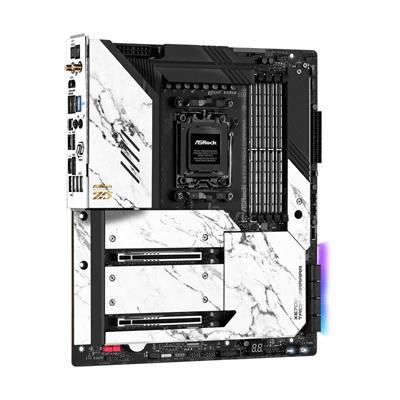

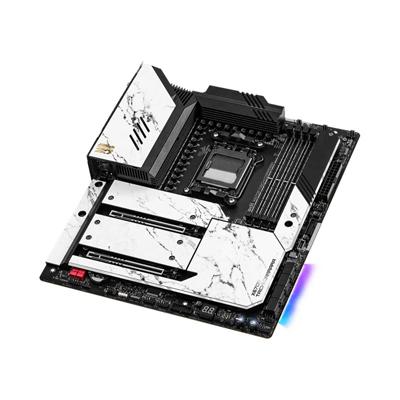

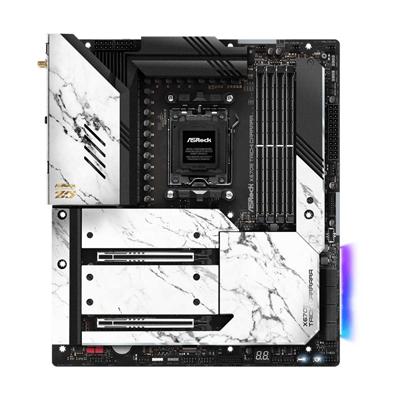

| Model | X670E Taichi Carrara |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 / X670E |
| Memory Support | |
| AMD Ryzen 7000 Series | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots Up to 128GB | |
| Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600 (OC) | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| Video | |
| HDMI | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| DisplayPort | 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz |
| * Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics. | |
| * USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead. | |
| Expansion Slots | |
| CPU Direct | 2x PCIe 5.0 x16 Physical, x16 Electrical Slots |
| PCIe 5.0 Slots support x16/x0 or x8/x8 Modes ** | |
| Supports AMD Crossfire | |
| Supports NVMe SSD as boot disk | |
| Storage | |
| CPU Direct | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| AMD X670 Chipset | 1x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes * |
| 1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 1x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 4x SATA3 6.0 Gb/s Connectors | |
| * If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled. | |
| ASMedia ASM1061 Chipset | 4x SATA3 6.0 Gb/s Connectors |
| Networking | |
| LAN | Killer E3100G 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Supports Killer LAN Software | |
| Supports Killer DoubleShot Pro | |
| WiFi | AMD WiFi 6E 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek ALC4082 Audio Codec 5.1 CH HD Audio with Content Protection |
| Individual PCB Layers for R/L Audio Channel | |
| Impedance Sensing on Rear Out port | |
| Nahimic Audio | |
| DAC | ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) |
| DAC Features | WIMA Audio Capacitors (For Front Outputs) |
| Individual PCB Layers for R/L Audio Channel | |
| Connectivity | |

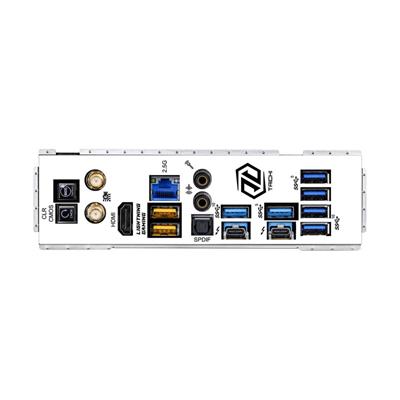

| Ports | 2x USB 4.0 40Gbps Type-C Intel JHL8540 Ports |
| 5x USB 3.2 Gen 2 10Gbps Type-A Ports | |
| 3x USB 3.2 Gen 1 5Gbps Type-A Ports | |
| 1x HDMI 2.1 | |
| 2x 3.5mm Audio Ports (Line Out, Microphone) | |
| 1x S/PDIF Optical Audio Out | |
| 2x SMA Connectors for WiFi Antennas | |
| Buttons | 1x BIOS FlashBack Button |
| 1x Clear CMOS button | |
| General | |
| Internal Connectors | 1x Power LED and Speaker Header |
| 1x RGB LED Header | |
| 3x Addressable LED Headers | |
| 1x CPU Fan Connector (4-pin) | |
| 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 6x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 2x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| 1x Front Panel Audio Connector (15μ Gold Audio Connector) | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| 1x Dr. Debug with LED | |
| 1x Power Button with LED | |
| 1x Reset Button with LED | |
| LED Displays | ASRock DEBUG LED Diagnostic Display |
| BIOS | UEFI AMI BIOS |
| 256 Mb Flash ROM | |
| Form Factor | EATX Form Factor, 305 x 267 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |

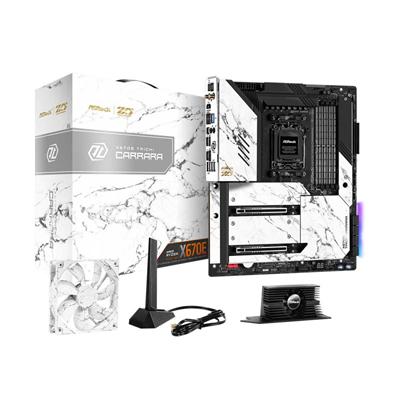

| Box Contents | 1x User Manual |
| 4x SATA Data Cables | |
| 1x Wireless Dongle USB Bracket | |
| 1x Blazing M.2 Gen5 Fan Heatsink | |
| 1x 12CM Carrara Edition Cooling FAN | |
| 1x ASRock WiFi 2.4/5/6 GHz Antenna | |
| 4x Screws for M.2 Sockets | |
| 1x Standoff for M.2 Socket | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
