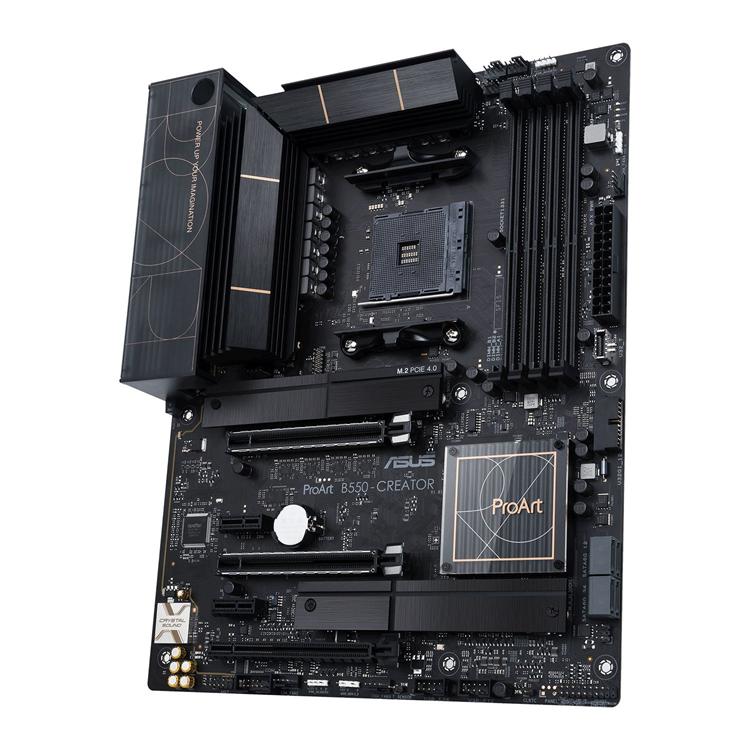

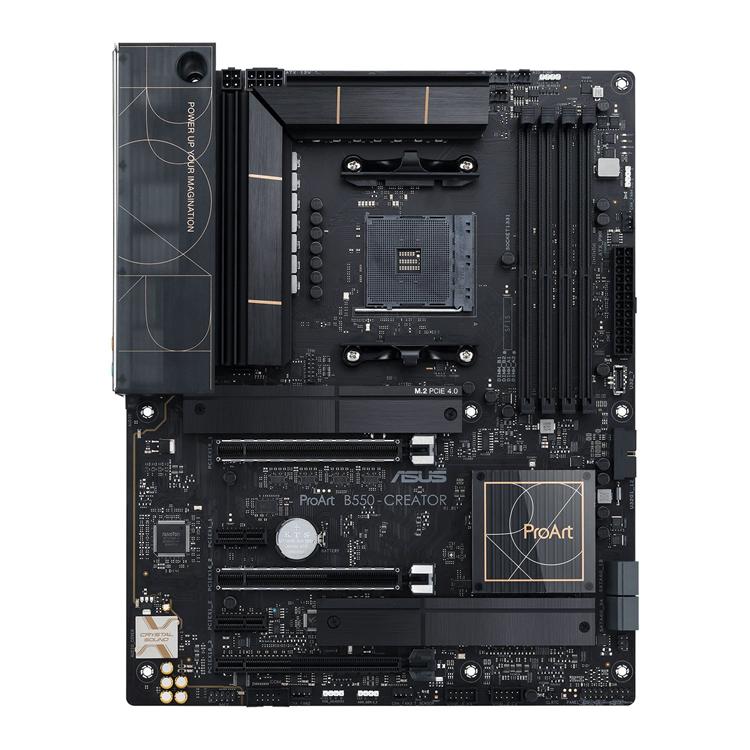

ASUS AMD ProArt B550-Creator AMD B550 ATX Motherboard

n
nThe ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the computing power of the latest AMD Ryzen processors to let you create faster and get more done.
n

• n
  • AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors

n

• • Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output

n

• • Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors

n

• • Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express

n

• • ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control

n

• • Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability

n

n
n
n

n
nLightning-Speed Connectivity
nA comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports — enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.
n
nDual Thunderbolt™ 4 Type-C®
nEach Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps
n
nDual 2.5G Ethernet.
nExperience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work.
n
nUnthrottled Performance
nProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.
n
nGo Faster with PCIe 4.0
nTo maximize the potential of the AMD Ryzen 3000 and 5000 Series processors, ProArt B550-Creator features faster PCIe®4.0 x16 slots for high-powered graphics cards as well as PCIe 4.0 and PCIe 3.0 M.2 sockets to support high-bandwidth NVMe SSD RAID for faster content creation.
n
nRobust Power Design
nProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability.
n

• n
  • Teamed Power Stages
    n12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.

n

• • Digi+ Power Control
    nThe ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

n

• • ProCool II Power Connector
    nThe ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

n

• • Choke and Capacitor
    nSuperior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

n

• • The 6-layer PCB
    nThe 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.

n

nCool to the Core
nThe VRM and M.2 heatsink designs ensure effective cooling of the CPU and SSD to ensure system stability and fast storage performance for seamless content creation workflows.
n

• n
  • VRM Heatsink & Thermal Pad
    nLarge, high-mass heatsinks with an extensive surface area along with high-quality thermal pads help transfer heat from VRM and choke areas to improve heat dissipation.

n

• • M.2 Heatsink
    nBoth M.2 drives sit under a passive heatsink to ward off the throttling that can occur with sustained transfers.

n

• • Stack Cool 3+
    nLayers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.

n

nIndustry-Leading Security
nAdvanced security from ASUS Control Center Express to protect your data and system.
n

• n
  • USB Port Management Enable or disable the USB port or set it to Read Only to prevent data leaks.

n

• • Software Blacklist A software blacklist is also available to prevent running of high-risk applications for IT security.

n

• • Registry Editor On/Off Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations for enhanced security.

n

nProArt Gives You More
nProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.
n

• n
  • Two-Way AI Noise Cancelation
    nWith working-from-home becoming the new normal, clear online communication is critical, even for content creators. Our latest audio utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so you can hear and be heard with crystal clarity while in calls.

n

• • ProArt Creator Hub
    nA user-friendly interface designed to enhance your workflow through central system monitoring and control of all connected ProArt Series products, including motherboards and displays.

n

• • CreationFirst
    nNetwork-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.

n

nTrusted Stability
nASUS ProArt B550-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers your creativity for years to come
n
nSafeSlot
nProtect your Graphics Card.
n

Additional Information:

nVisit the Manufacturer Product Web Page for Full Details
n
n

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Make and Model	Asus ProArt B550-CREATOR ATX Motherboard
Part Number	ProArt B550-CREATOR
CPU	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors nRefer to www.asus.com for CPU support list
Chipset	AMD B550
Memory	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors nDDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.) n3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * nAMD RyzenTM 4000 G-Series Processors nDDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.) n4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC nand non-ECC, Un-buffered Memory” OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Graphics	1 x HDMI™ 2.1 (4K@60Hz) n2 x Intel®Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs * n* Output at TBT4_E1 and TBT4_E2, the USB Type-C®ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types. n** VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manul.
Expansion Slots	2 x PCIe 4.0/3.0 x16 (x16, x8/x8) nAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors n2 x PCIe 4.0 x16 (x16 or dual x8)* nAMD RyzenTM 4000 G-Series Processor n2 x PCIe 3.0 x16 (x16 or dual x8)* nAMD B550 Chipset n1 x PCIe 3.0 x16 slot (supports x4 mode)** n2 x PCIe 3.0 x1 slots*** n* Support PCIe bandwidth bifurcation for RAID on CPU function. n** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output n*** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will
Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports nTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports nAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : nM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) nAMD RyzenTM 4000 G-Series Processor : nM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) nAMD B550 Chipset nM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) n4 x SATA 6Gb/s ports nSupports RAID 0, 1, 10
LAN	2 x Intel®I225-V 2.5Gb Ethernet
Audio	– Impedance sense for front and rear headphone outputs n- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers n- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking n- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) n- Supports up to 32-Bit/192 kHz playback*” nAudio Features n- Power pre-regulator reduces power input noise to ensure consistent performance n- Rear optical S/PDIF out port n- Premium Japanese audio capacitors n- Dedicated audio PCB layers n- Audio cover n- Unique de-pop circuit n* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
USB	Rear USB:Total 8 ports n2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support n4 x USB 3.2 Gen 2 port(s) (4 x Type-A) n2 x USB 2.0 port(s) (2 x Type-A) nFront USB:Total 7 ports n1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) n1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports n2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

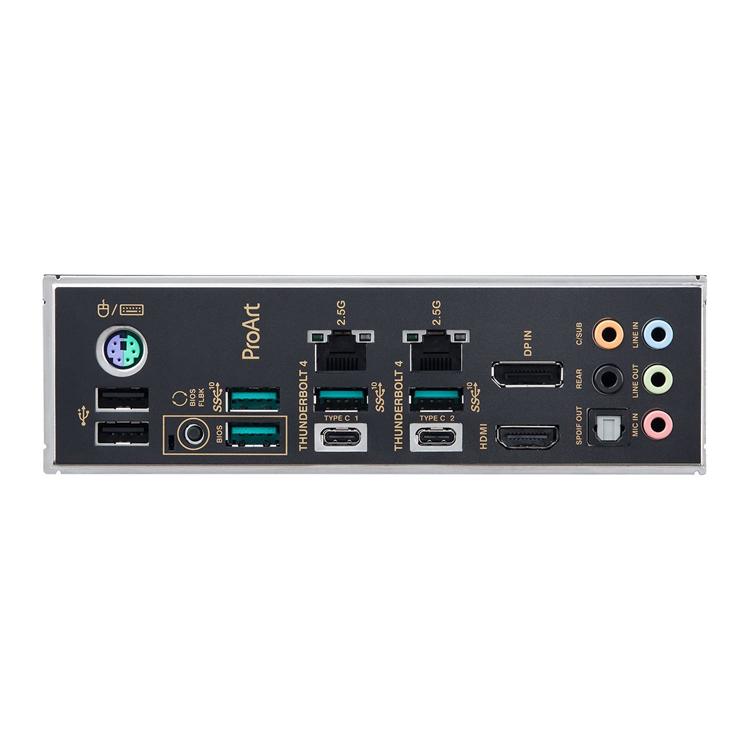

Back Panel I/O Ports	2 x Thunderbolt™ 4 USB Type-C®port(s) n4 x USB 3.2 Gen 2 port(s) (4 x Type-A) n2 x USB 2.0 port(s) (2 x Type-A) n1 x DisplayPort (Input only) n1 x HDMI™ port n2 x Intel®I225-V 2.5Gb Ethernet ports n5 x Audio jacks n1 x Optical S/PDIF out port n1 x BIOS FlashBack™ button n1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support nFan and Cooling related n1 x 4-pin CPU Fan header(s) n1 x 4-pin CPU OPT Fan header(s) n1 x 4-pin AIO Pump header(s) n4 x 4-pin Chassis Fan header(s) nPower related n1 x 24-pin Main Power connector n1 x 8-pin +12V Power connector n1 x 4-pin +12V Power connector nStorage related n2 x M.2 slots (Key M) n4 x SATA 6Gb/s ports nUSB n1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) n1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports n2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports nMiscellaneous n2 x AURA Addressable Gen 2 header(s) n2 x AURA RGB header(s) n1 x Clear CMOS header n1 x COM Port header n1 x Front Panel Audio header (AAFP) n1 x Speaker header n1 x SPI TPM header (14-1pin) n1 x 20-5 pin System Panel header n1 x Thermal Sensor header
Software Features	ASUS Exclusive Software nArmoury Crate n- AURA Creator n- AURA Sync n- Two-Way AI Noise Cancelation nAI Suite 3 n- 5-Way Optimization by Dual Intelligent Processors 5 nTPU nEPU nDigi+ VRM nFan Xpert 4 nTurbo app n- EZ update nASUS CPU-Z nIT Management software supported n- ASUS Control Center Express(ACCE) nProArt Creator Hub nAI Charger nDAEMON Tools nNorton Anti-virus software (Free Trial version) nWinRAR nUEFI BIOS nASUS EZ DIY n- ASUS CrashFree BIOS 3 n- ASUS EZ Flash 3 n- ASUS UEFI BIOS EZ Mode nFlexKey
Special Features	Extreme Engine Digi+ n- 5K Black Metallic Capacitors nASUS 5X PROTECTION III n- DIGI+ VRM (- Digital power design with Dr. MOS) n- Enhanced DRAM Overcurrent Protection n- ESD Guards n- LANGuard n- Overvoltage Protection n- SafeSlot Core n- Stainless-Steel Back I/O nASUS Q-Design n- Q-DIMM n- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) n- Q-Latch n- Q-Slot nASUS Thermal Solution n- M.2 heatsink n- VRM heatsink design nASUS EZ DIY n- BIOS FlashBack™ button n- BIOS FlashBack™ LED n- Box Headers n- ProCool II n- Pre-mounted I/O shield n- SafeSlot nAURA Sync n- AURA RGB header(s) n- Addressable Gen 2 RGB header(s) nBespoke Motherboard Design & Business Focused Features n- 24/7 Reliability n- Overcurrent Protection
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
OS Support	Windows®10 64-bit
Form Factor	ATX Form Factor n12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

n

n

• n
  • Asus Motherboard

n

• • 2 x SATA 6Gb/s cables

n

• • 1 x DP to DP cable for Thunderbolt™ 4

n

• • 1 x M.2 Rubber Package(s)

n

• • Installation Media

n

• • 1 x Support DVD

n

• • 1 x ACC Express Activation Key Card

n

• • 1 x User manual
