Description

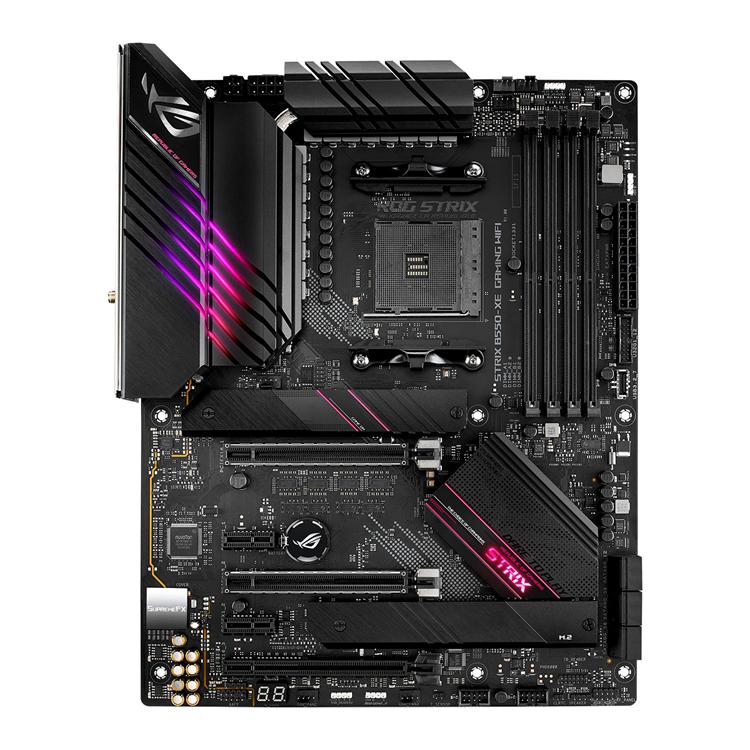

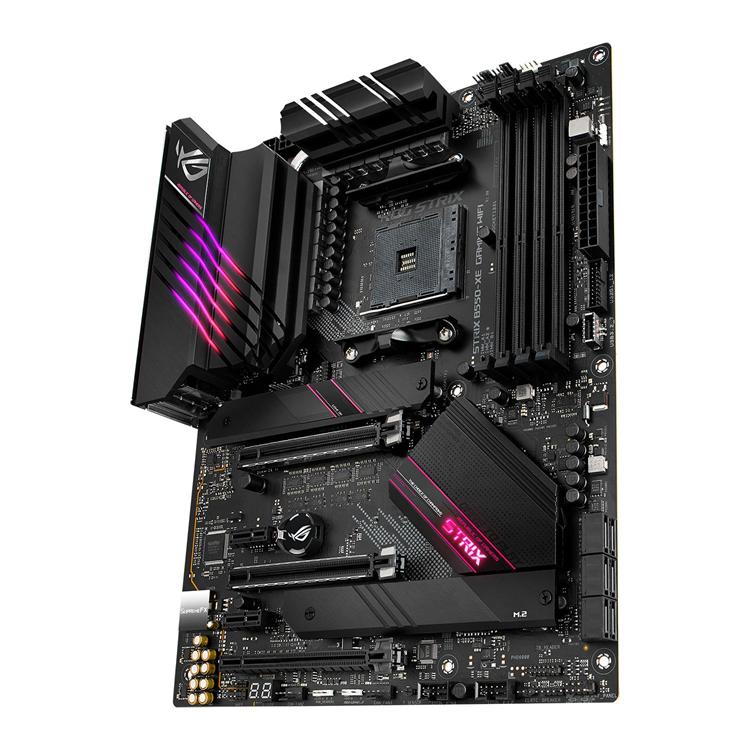

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCI Express® 4.0 interface. The flagship of the B550 motherboard range, ROG Strix B550-XE Gaming WIFI, offers robust power delivery and effective cooling, making it well-equipped to handle the popular 3rd Gen AMD Ryzen™ and the latest AMD Ryzen™ 5000 (Zen 3 architecture) processors.
-
- AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
-
- Best gaming connectivity: PCIe 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C™ plus HDMI 2.1 and DisplayPort 1.2 output
-
- Robust power solution: 14+2 power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
-
- Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks
-
- Superfast networking: Onboard Wi-Fi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
-
- Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
-
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey
-
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers
-
- Industry-leading Gaming Audio: Audio USB Type-C™, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
Unleash Unlimited Performance
ROG Strix B550-XE Gaming WIFI provides robust power delivery and comprehensive cooling to handle the latest Ryzen™ processors. It also supports faster memory and superfast high-capacity storage, providing everything you need to create a PC that’s ready to play in the big leagues.
PCIe 4.0-Ready
ROG Strix B550-XE Gaming WIFI features two onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the latest AMD Ryzen processors. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
Hyper M.2 x16 Gen 4 Card
ROG Strix B550-XE Gaming WIFI is also suited for work. In addition to the two onboard M.2 slots, the Hyper M.2 Gen 4 card offers four more M.2 slots for superfast high-capacity data storage.
Learn more about Hyper M.2 x16 Gen 4 card
Custom Delta Superflo Fan
A custom-made low-noise fan efficiently cools the area around the VRM by up to 9° C to give you more overclocking headroom, and it can be turned on or off via the UEFI BIOS. To ensure longevity, the fan utilizes durable bearings with an impressive 60,000-hour L10* lifespan.
* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearings are expected to still be functioning normally.
I/O Shroud and MOS Heatsink with L-shaped Heatpipe
An L-shaped heatpipe allows for rapid and even heat transfer, while the MOS heatsink provides a large contact area for the MOSFETs and chokes. Together with the aluminum I/O shroud, it offers effective cooling.
Thermal Pads
Helps transfer heat from inductor and phase array to heatsink.
Cooler by Design
ROG Strix B550 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
-
- CPU Fan Header: A dedicated pair of PWM/DC fan headers for CPU coolers.
-
- AIO Pump Fan Header: A dedicated PWM/DC header for self-contained water-cooling setups.
Power Design
Digital power control and an array of power stages ensure ROG Strix B550-XE Gaming WiFi has the muscle to control the latest AMD processors.
DDR4 OC 5100MHz
ROG Strix B550-XE Gaming WIFI supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins.
Advance Your Gaming Immersion
ROG Strix B550-XE Gaming WIFI provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
Wi-Fi 6 (802.11 ax)
Onboard Wi-Fi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6. Find out more about ASUS WiFi 6 solutions.
Intel® 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
SupremeFX
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-XE Gaming WIFI. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-XE Gaming WIFI are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
Undeniably ROG STRIX
ROG Strix B550-XE Gaming WIFI embodies the ROG spirit with eye-catching aesthetics. Parallel strakes cutting across the upper-left to the bottom-right of the board add a ferocious look, while embedded Aura RGB LEDs illuminate the aluminum I/O shroud and Strix logo. The LEDs can be synced with other Aura-compatible hardware for a unified look. These new design features move ROG Strix boldly into the future, while clearly reflecting the series’ gaming roots.
Outshine the Competition
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Addressable Gen 2 RGB Header
ROG Strix B550-XE Gaming WIFI’s Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Pre-mounted I/O Shield
Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install on the motherboard.
Q-Code
Diagnostic codes provide a quick reference to help resolve common installation or component issues.
FlexKey
Front-panel header allows customization of the front-panel chassis reset button, providing options for quick access to Aura lighting controls, DirectKey, or system reset.
BIOS FlashBack™
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren’t present.
Certified Compatibility
ROG Strix motherboards undergo an extensive certification program to ensure the very best compatibility with the widest range of components and devices. For a smooth build process, refer to our list of guaranteed-compatible components. To help with memory upgrades, the list also includes a dedicated Qualified Vendor list (QVL).
The ROG Strix Ecosystem Awaits
Level up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more! ROG offers more choices than any other brand.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
5-Way Optimization
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
AI Networking
The proprietary ROG GameFirst VI utility is designed to help all users – beginners, experts, and everyone in between – optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download the user manual, drivers and software. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.
RAMCache III
RAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
Additional Information:
Visit the Manufacturer Product Web Page for Full Details
Specifications
| CPU Support | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors – Refer to www.asus.com for CPU support list |
|---|---|
| Chipset | AMD® B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory – ECC Memory (ECC mode) support varies by CPU – Dual Channel Memory Architecture – OptiMem II – Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Display Support | Integrated Graphics Processor: – 1 x HDMI 2.1 – 1 x DisplayPort 1.2 |
| Multi-GPU Support | Supports NVIDIA 2-Way SLI® Technology Supports AMD® 3-Way CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 4.0 x16 (x16 or dual x8) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode)* 2 x PCIe 3.0 x1 AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 3.0 x16 (x16 or dual x8) |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* AMD Ryzen™ 5000 Series/ 4000 G-Series / 3000 Series Desktop Processors: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless LAN | Intel® Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A – Dual OP Amplifiers – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality120dBSNR stereo playback output and 113dBSNR recording input – Supports up to 32-Bit/192kHz playback* Audio Feature: – SupremeFX Shielding™ Technology – Rear audio USB Type-C™ port – Audio Shielding – Premium Japanese audio capacitors – Audio Cover |
| USB Ports | Rear USB Port (Total 8) 3 x USB 3.2 Gen 2 port(s)(2x Type-A + 1x USB Type-C™) 4 x USB 2.0 port(s)(4 x Type-A) 1 x USB 2.0 port(s)(1 x audio USB Type-C™) Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) |

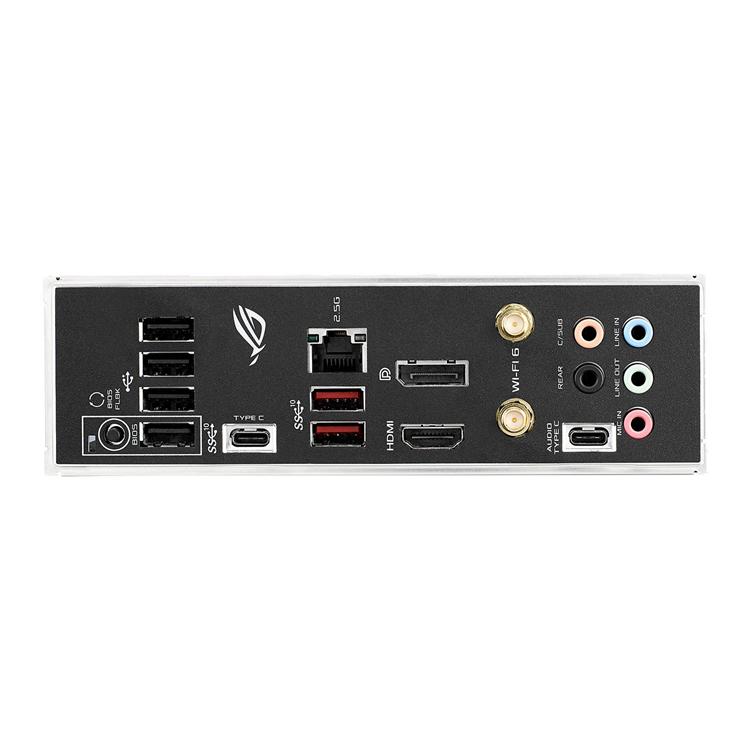

| Back Panel I/O Ports | 1 x Intel® I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C™) 5 x USB 2.0 (1 for audio USB Type-C™) 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C™) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Q-Code |
| Special Features | Aura Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) ASUS Q-Design – ASUS Q-CODE – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield – SafeSlot Rear audio USB Type-C™ connector |
| Supported OS | Windows® 10, 64-bit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | ATX Form Factor 12″ x 9.6″ (30.5 x 24.4 cm) |
Package Contents
-
- Asus ROG STRIX B550-XE GAMING WIFI ATX Motherboard
-
- 4 x SATA 6Gb/s Cable(s)
-
- 1 x Extension Cable for RGB Strips (80 cm)
-
- 1 x Extension Cable for Addressable LED
-
- 1 x Wi-Fi Moving Antenna
-
- 5 x M.2 SSD Screw Package(s)
-
- 3 x M.2 Rubber Package(s)
-
- 1 x ROG Audio USB Type-C™ Cable
-
- 1 x ROG Key Chain
-
- Cable Ties Pack(s)
-
- ROG STRIX Stickers
-
- ROG Thank You Card
-
- Supporting DVD
-
- User’s Manual
