Description
Part number90MB1B80-M0EAY0
ASUS Introduces the ROG CROSSHAIR X670E GENE Motherboard

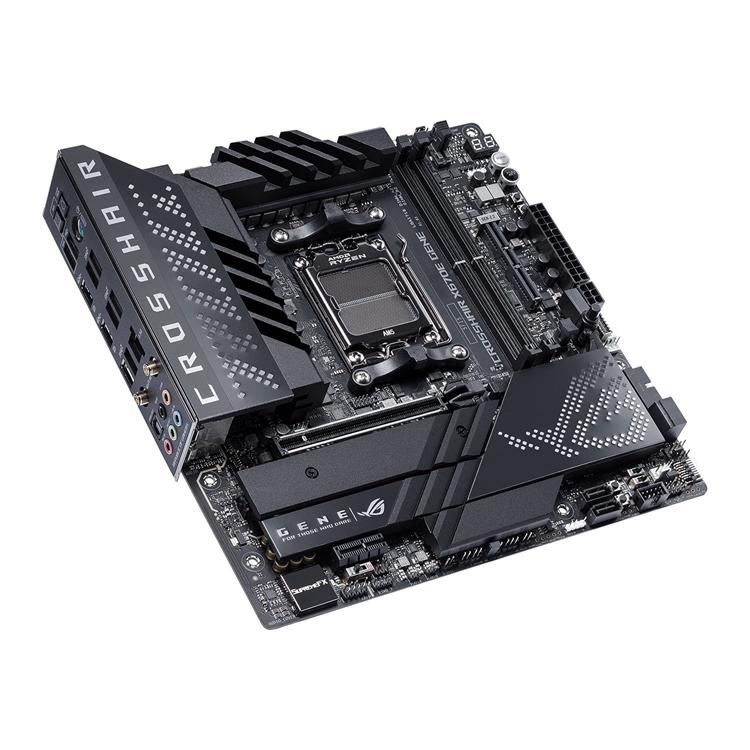

ASUS ROG CROSSHAIR X670E GENE WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 mATX gaming motherboard (16 + 2 power stages, PCIe® 5.0, DDR5 support, USB 3.2 Gen 2×2 front-panel connector with Quick Charge 4+ support, USB4® ports, Wi-Fi 6E)
ASUS ROG CROSSHAIR X670E GENE WIFI 6E is the perfect backbone for gamers who pursue ultimate performance out of AMD Ryzen 7000 CPU in a compact formfactor. With boosted power delivery and innovative cooling utilizing a skived-fin design, ROG STRIX X670E-I GAMING WIFI 6E is the perfect compact platform for your next gaming battle station.
Features
-
- AMD Socket AM5(LGA 1718) for AMD Ryzen™ 7000 Series Desktop Processors
-
- Intelligent Control: ASUS-exclusive tools including AI Cooling II, AI Networking, Two-Way AI Noise-Cancelation for easy configuration
-
- Robust Power Solution: 16 + 2 teamed power stages rated for 110A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
-
- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, ROG GEN-Z.2, high-conductivity thermal pad, triple M.2 heatsinks and single M.2 with embedded backplate
-
- High-Performance Networking: Onboard Wi-Fi 6E, Intel® 2.5 Gb Ethernet, and ASUS LANGaurd
-
- Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 onboard, ROG GEN-Z.2 card with PCIe 5.0 support, USB 3.2 Gen 2×2 front-panel connector with Quick Charge 4+ support, dual USB4® Type-C ports
-
- Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier for pinpoint positioning and dynamics
-
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and two addressable Gen 2 RGB headers
-
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Graphics Card Holder
-
- Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
Specifications
| Make and Model | Asus ROG CROSSHAIR X670E GENE MicroATX Motherboard |
|---|---|
| Part Number | ROG CROSSHAIR X670E GENE |
| Color | Black |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X670 |
| Memory | 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics | 2 x USB4® ports support USB Type-C® display outputs* * VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0 x1 slot * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) GEN-Z.2_1 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4)** AMD X670 Chipset GEN-Z.2_2 slot (Key M) via GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. **Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB | Rear USB (Total 10 ports) 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |

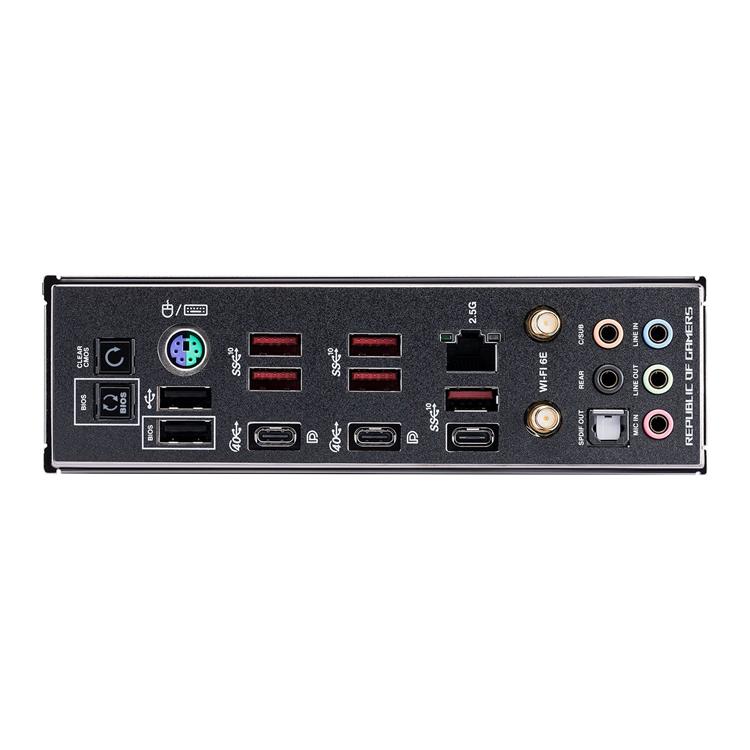

| Back Panel I/O Ports | 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) 6 x USB 3.2 Gen 2 port(s) (5 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x Wi-Fi Module 1 x Intel® I226-V 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan header 3 x 4-pin Full Speed Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 1 x M.2 slots (Key M) 1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 2 x Addressable Gen 2 headers 1 x Alteration Mode Switch 1 x Aura RGB header 2 x BCLK button 1 x FlexKey button 1 x 10-1 pin Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x Osc sence header 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features | Extreme OC Kit – FlexKey button – LN2 Mode – Probelt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Aura RGB header(s) – Addressable Gen 2 header(s) Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support – Support: up to 60W charging* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – ROG True Voltician – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 with AI Cooling II – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TPU – DIGI+ Power Control – Turbo app – PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
