Description
Part number90MB1BZ0-M0EAY0

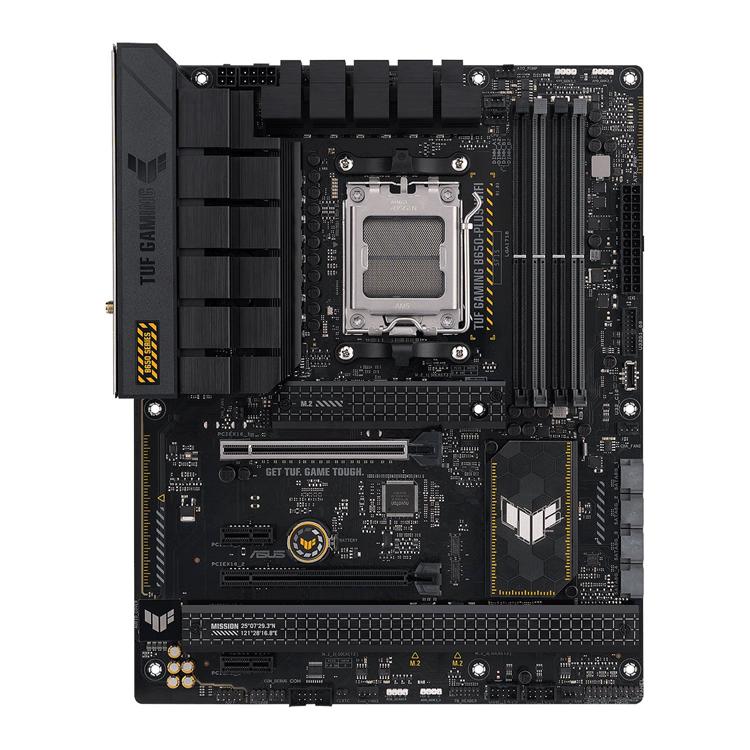

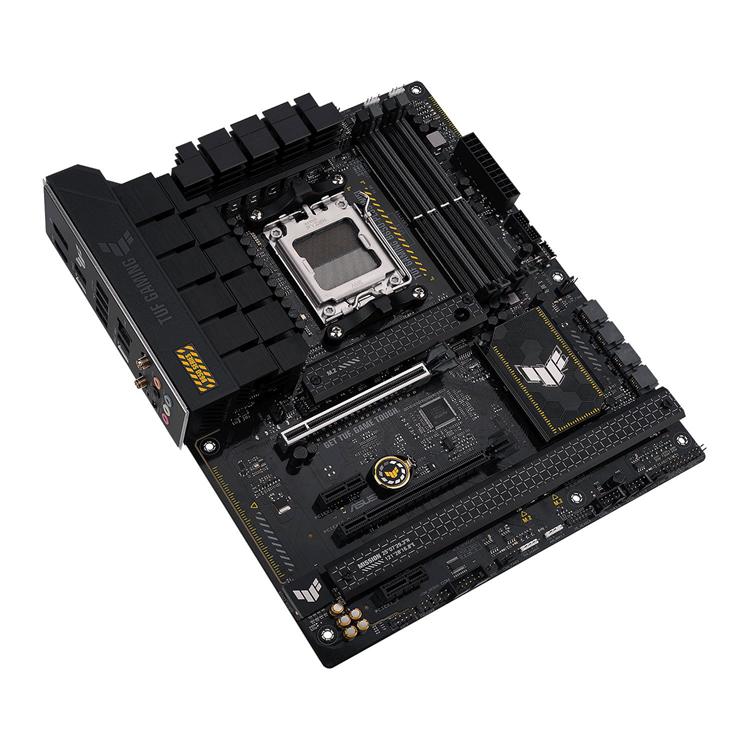

Asus TUF GAMING B650-PLUS WIFI Motherboard
ASUS TUF GAMING B650-PLUS WIFI Socket AM5 (LGA 1718) Ryzen 7000 ATX gaming motherboard(14 power stages, PCIe® 5.0 M.2 support, DDR5 memory, 2.5 Gb Ethernet, WiFi 6, USB4® support and Aura Sync)
ASUS TUF GAMING B650-PLUS WIFI is designed with military-grade components and game-ready features to provide unwavering gaming stability with the latest AMD Ryzen 7000 series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, ASUS TUF GAMING B650-PLUS WIFI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
-
- AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series desktop processors
-
- Enhanced power solution: 12+2 teamed power stages, 8+4 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
-
- Next-gen connectivity: M.2 PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 1 Type-C, USB4® support
-
- Made for online Gaming: WiFi 6, Realtek 2.5 Gb Ethernet and TUF LANGuard
-
- Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
-
- Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 2+ utility in Armoury Crate
-
- Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header
Specifications
| Make and Model | Asus TUF GAMING B650-PLUS WIFI Motherboard |
|---|---|
| Part Number | TUF GAMING B650-PLUS WIFI |
| Color | Black |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI®port*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Power pre-regulator reduces power input noise to ensure consistent performance – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

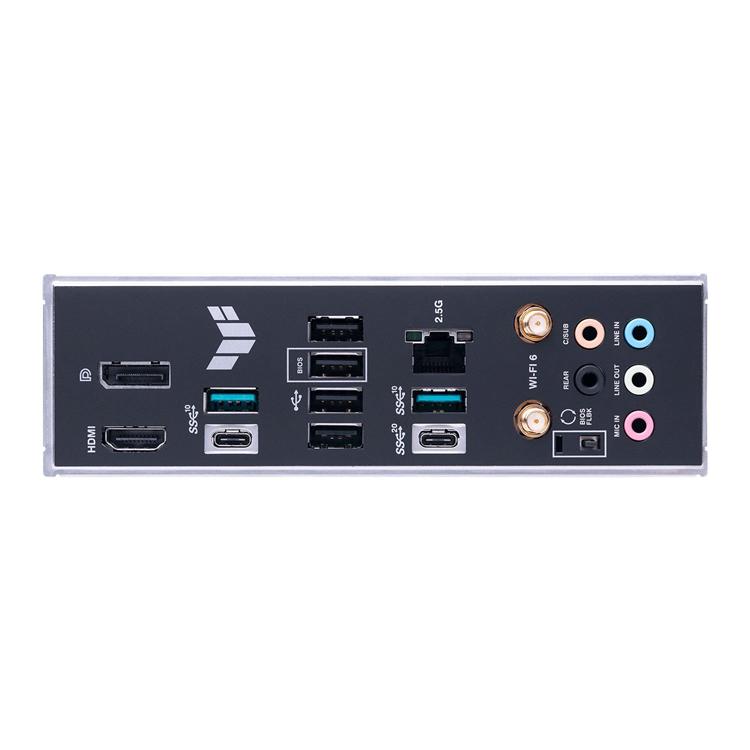

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Special Features | ASUS TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – ProCool – Pre-mounted I/O shield – SafeDIMM Aura Sync – Aura RGB header(s) – Addressable Gen 2 header(s) |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode 256 Mb Flash ROM, UEFI AMI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows®11, Windows®10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Package Contents
-
-
-
- Asus TUF Motherboard
-
-
Cables
-
-
-
- 2 x SATA 6Gb/s cables
-
-
Miscellaneous
-
-
-
- 2 x Rubber Package(s) for M.2
- 1x ASUS Wi-Fi moving antennas
-
- 1 x Screw package(s) for M.2 SSD
-
-
Documentation
-
-
-
- 1 x TUF Certification card
- 1 x User guide
-
-
Installation Media
-
- 1 x Support DVD
