Description
Part number90YE00U1-B0NB00

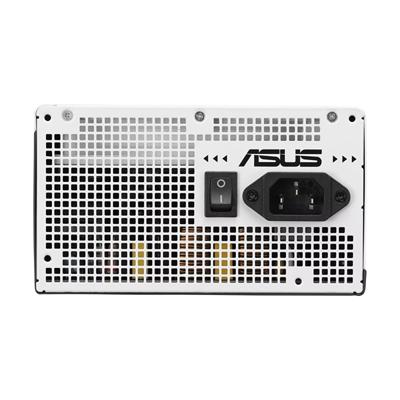

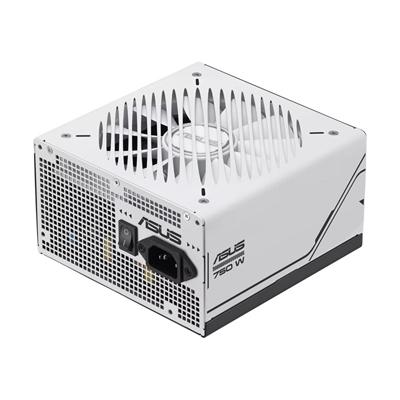

PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Prime |
| Model | AP-750G |
| Maximum Power | 750W |
| 80 Plus Efficiency | 80 Plus gold Certification |
| Colour | White |
| Fan | 135mm Dual ball Bearing Fan |
| Modular Design | Fully Modular |
| Cable Connectors | |
| 24 Pin ATX | 1x 24 Pin ATX Connector |
| EPS (CPU) | 2x 4+4 Pin EPS Connectors |
| PCIe | 1x PCI-E 16-pin (Both PSU & Connector Side) |
| 3x PCI-E 8-pin Connectors | |
| SATA | 5x SATA Connectors |
| Four-Pin Peripheral | 3x Four-Pin Peripheral Connectors |
| Cable Length | |
| ATX Cable | 1x 610mm Cable |
| EPS Cables | 2x 650mm Cables |
| PCIe Cables | 1x 675mm PCI-E Gen 5 16-pin Cable |
| 1x 675mm PCI-E (16-pin to 8-pin-8-pin) Cable | |
| 1x 675mm PCI-E 1-to-1 Cable | |
| SATA Cable | 1x 400mm + 120mm SATA 1-to-2 Cable |
| 1x 400mm + 120mm + 120mm SATA 1-to-3 Cable | |
| Four-Pin Peripheral Cables | 1x 400mm + 150mm + 150mm Peripheral 1-to-3 Cable |
| Input | |
| Input Voltage | 100Vac – 240Vac |
| Output | |
| Rails | +3.3V +5V +12V -12V +5Vsb |
| Max Outputs | 20A 20A 62A 0.3A 2.5A |
| 110W 110W 744W 3.6W 12.5W | |
| General | |
| Safety Certification | OPP/OVP/UVP/SCP/OCP/OTP |
| Dimensions | 150mm x 150mm x 86mm |
| Weight | 1.466kg |
| Warranty Information | |
| Warranty | 8 Year Warranty |
