Description
Part numberTUF-RTX4070S-O12G-GAMING
TUF is here to last, with the all-new ASUS TUF Gaming GeForce RTX™ 4070 SUPER OC Edition. This gaming graphics card provides you with all the power, stability, and durability you will ever need for your next-gen gaming system. The ASUS TUF Gaming NVIDIA GeForce RTX™ 4070 comes fully equipped with a vented exoskeleton, a compact PCB, and Military-grade capacitors for a sturdy, and reliable gaming experience.
Features
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC mode: 2595 MHz (OC mode)/ 2565 MHz (Default mode)
- Axial-tech fans scaled up for 21% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Vented exoskeleton adds structural rigidity and vents to increase heat reliability
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Specifications
| Model Name | TUF-RTX4070S-O12G-GAMING |
|---|---|
| Part Number | 90YV0K80-M0AA00 |
| Chipset | NVIDIA® GeForce RTX™ 4070 SUPER |
| CUDA Cores | 7168 CUDA Cores |
| Engine Clock | OC mode: 2595 MHz (Boost Clock) Default mode: 2565 Mhz (Boost Clock) |
| Memory | 12GB GDDR6X |
| Memory Clock | 21 Gbps |
| Memory Interface | 192-bit |
| Memory Bandwidth | N/A |
| Bus Interface | PCI Express 4.0 |
| SLI Capable | N/A |
| OpenGL | OpenGL®4.6 |
| Lighting | None |
| Cooler | N/A |
| Resolution | Digital: 7680 x 4320 |
| Max. Display Support | 4 |
| Connectors | |
| HDMI | 1 x Native HDMI 2.1a |
| DisplayPort | 3 x Native DisplayPort 1.4a |
| USB | None |
| Video Out | HDMI |
| HDCP Support | Yes, 2.3 |
| Video In | N/A |
| Power Consumption | N/A |
| Power Connectors | 1 x 16-pin |
| Slot | 3.15 |
| Dimensions (L x W x H) | 301 x 139 x 63 mm / 11.85 x 5.47 x 2.48 in |
| Weight | 1.1188 kg |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |

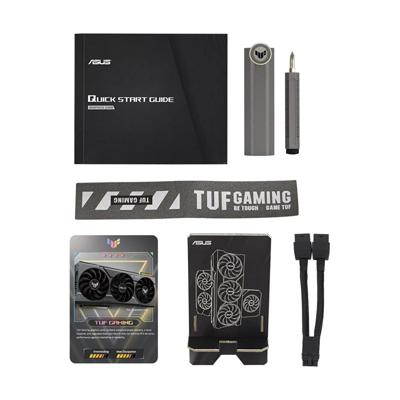

Package Contents
- 1 x ASUS TUF Gaming GeForce RTX™ 4070 SUPER OC Edition 12GB GDDR6X
- 1 x Collection Card
- 1 x Speedsetup Manual
- 1 x Thank You Card
- 1 x TUF Velcro Hook & Loop
- 1 x TUF Graphics Card Holder
- 1 x TUF Gaming Certificate
- 1 x Adapter Cable (1 to 2)
