Description
Part numberROG-STRIX-RTX3080TI-O12G-GAMING
TAKE FLIGHT WITH THE LATEST GPU TECHNOLOGY
The ROG Strix GeForce RTX™ 3080 Ti OC has been drastically improved to house the revolutionary new Ampere chips from NVIDIA and to deliver the next generation of gaming performance. This state-of-the-art fresh design uses more metal surrounds and a grouping of Axial-tech fans. Last gen’s uniform fan layout has been usurped by a new rotation scheme and specialised roles for central and auxiliary fans. Below the blades lies a larger, more impressive heatsink that’s ready for the most demanding thermal loads. The PCB also has some new tricks, and even the backplate has some new performance-boosting changes. This is the latest and greatest in GPU design.
10240 Cuda Cores
1370 MHz Core Clock
1845 MHz Boost Clock (OC Mode)
12GB GDDR6X Memory
Axial-Tech Fan Upgrades
EXTRA SURFACE AREA FOR EXTRA COOLING

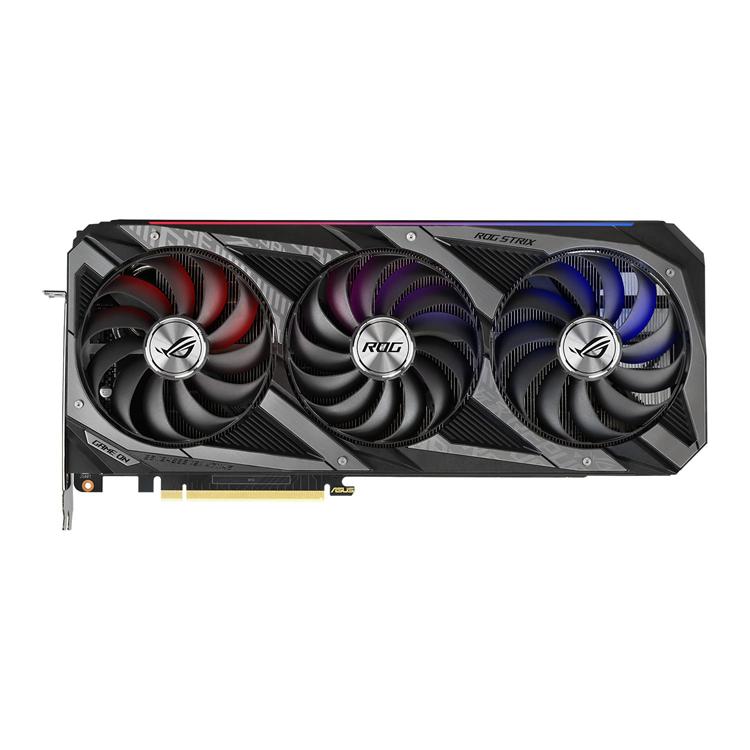

ASUS ROG Strix have re-optimised to suit a new larger heatsink that features more fins than previous generations, upgrades have also been made to the fans themselves, with the auxillary fans now boasting 11 blades and the main central fan housing 13. The barrier ring on the side of the axial tech fans has been slimmed down to increase lateral intake amd to give the cooling array an optimised airflow whilst also boosting static pressure to physically blast air directly onto the GPU heat spreader.
Keep Cool – Sub 55° GPU Temperatures
EACH FAN HAS ITS OWN ROLE
By keeping the rotational direction of the auxillary fans the same and having the central fan spin the opposite direction, ASUS ROG STRIX have reduced the turbulence inside the cooling array to boost the card’s overall thermal performance. The sum of all of these innovative upgrades results in lower fan speeds and raises the performance threshold of the ROG STRIX 3080 Ti OC achieving a sub-55 degree GPU temperature at which the fans will shut off completely to give you silent performance.
Maximum Contact for Maximum Cooling
POLISHED AND FINE-TUNED FOR MAXIMUM PERFORMANCE
In order to ensure maximum benefit from the upgraded axial-fan design ASUS have incorporated a new manufacturing process that polishes the surface of the heat-spreader down to a microscopic level. The even surface allows for maximum contact with the die and improved thermal transfer.
A Larger Footprint than Previous Generations
ENLARGED HEATSINK DESIGN
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.
Improved PCB Features
PREMIUM COMPONENTS
As to be expected from a premium brand like ASUS ROG Strix, top-shelf capacitors, chokes and MOSFETs have been used to effortlessly deliver large amounts of power at a Milliseconds notice. The Super Alloy Power II are soldered to the PCB using the amazing Auto-Extreme automated manufacturing process, allowing human error to be removed from the process ensuring each graphics card meets rigorous specifications.
FANCONNECT II
The rear of the ROG Strix graphics card sports two PWM FanConnect headers that provide additional DIY flexibility. Chassis fans can be directly attached to the GPU and tuned with a curve that is based on CPU or GPU temperature, providing extra intake or exhaust for demanding 3D tasks.
Updated Shroud Design is Both Functional and Beautiful
NOT JUST A PRETTY FACE

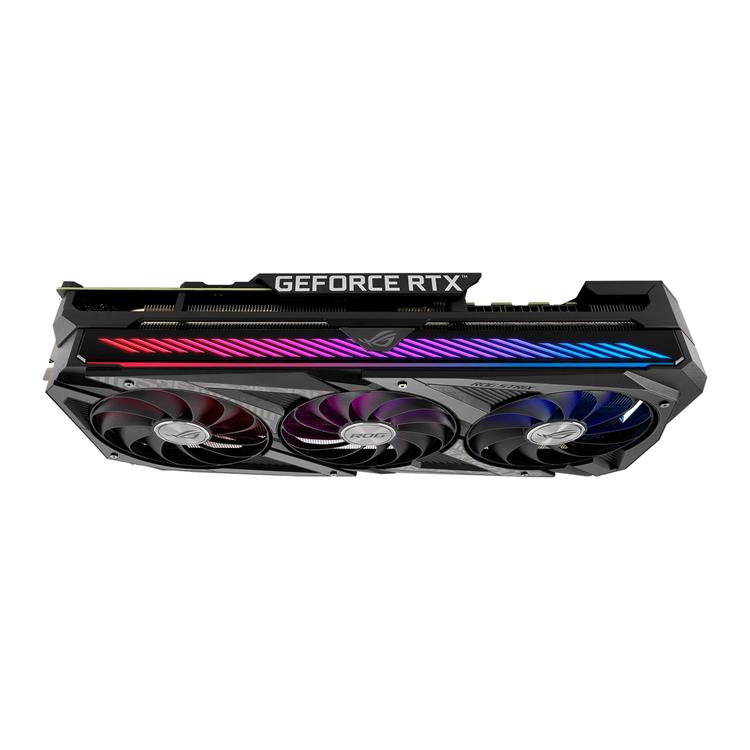

In addition to under-the-hood design changes, the ROG Strix features a new face with metal accents that mirror the design aesthetic of ROG and ROG Strix motherboards. Mixing surface textures and materials make a statement when vertically mounted and lit by chassis LEDs. For those who prefer a sleeker, more subtle look, the greyscale colorway allows it to seamlessly blend into the build. Combine this with the careful attention that has been paid to a new addressable RGB element that can be customised with Armoury Crate to create a uniform look along with other ROG components and with 3 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue.
It’s Cooler Out Back
A WHOLE HOST OF COOLING FEATURES

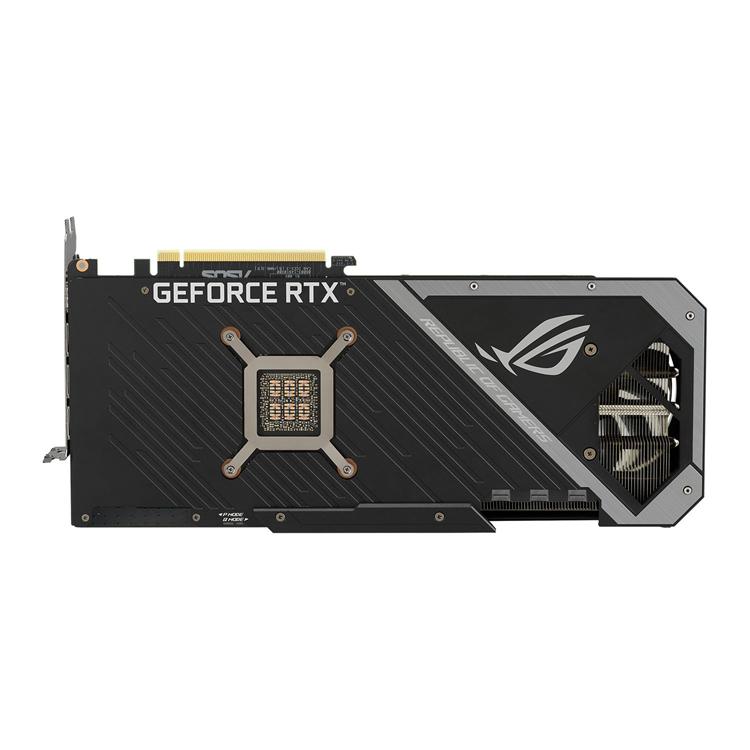

Flipping the card around reveals more design improvements. A wide backplate vent and shortened PCB allow hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” mode for basic customisation of the card’s default behavior without software.
NVIDIA Ampere Architecture
2ND GEN RT CORES 2X THROUGHPUT
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM 2X FP32 THROUGHPUT
DLSS AI Acceleration
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. IT’S ON.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
STREAM LIKE A BOSS
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GAMING
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
GEFORCE EXPERIENCE
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
GAME READY DRIVERS
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
VIRTUAL REALITY
Take your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
NVIDIA ANSEL
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
Specifications
| Make and Model | Asus ROG Strix GeForce RTX™ 3080 Ti OC Edition 12GB LHR Graphics Card |
|---|---|
| Part Number | STRIX-RTX3080TI-O12G |
| Color | Black |
| Chipset | NVIDIA® GeForce RTX™ 3080 Ti |
| CUDA Cores | 10,240 |
| Engine Clock | OC Mode: Boost Clock: 1845 MHzGaming Mode: Boost Clock:1815 MHz |
| Memory | 12GB GDDR6X |
| Memory Clock | 19Gbps Effective |
| Memory Interface | 384-bit |
| Memory Bandwidth | N/A |
| Bus Interface | PCI Express x16 4.0 |
| Crossfire Support | N/A |
| Lighting | RGB lighting |
| Cooler | 2.9-Slot Active Cooler w/ 3x Cooling Fans |
| Resolution & Refresh Rate | Digital: 7,680 x 4,320 |
| Display Support | Up to 4 displays |
| Connectors | |
| DVI | None |
| HDMI | 2x HDMI 2.1 |
| DisplayPort | 3x DisplayPort 1.4a |
| USB | None |
| Video Out | HDMI |
| HDCP Support | Yes, 2.3 |
| OpenGL | OpenGL®4.6 |
| Video In | N/A |
| Recommended PSU | 850W |
| Power Connectors | 3x 8-pin PCIe connectors |
| Dimensions | 318.5 x 140.1 x 57.78 mm |
| Weight | N/A |
