Description
Part numberTUF-RTX3090TI-O24G-GAMING
A TUF PIECE OF KIT
Prepare yourself for an unforgettable gaming experience with the ASUS TUF GAMING RTX 3090 Ti OC edition Gaming GPU, powered by the groundbreaking NVIDIA Ampere Architecture boasting 2nd generation RT cores and 3rd generation tensors with breathtaking improvements to graphical performance with a staggering 24GB of GDDR6X memory with a whopping 1TB of bandwidth. The TUF Gaming GeForce RTX™ 3090 Ti takes an expertly sculpted design and refines it even further. Its trio of Axial-tech fans are 20% taller and feature a half-width barrier ring designed for increased airflow. Additional fan turbulence optimizations keep noise levels down as the GPU dishes out frames, and a stop mode brings fans to a standstill during light usage. Passive cooling also gets a boost by expanding heatsink size, bringing the card’s total width to 3.2-slots. And alongside, a slew of enhancements championed by its award-winning predecessors ensure the TUF is an absolute powerhouse for builders on the hunt for gaming bliss.
Prepare yourself for an unforgettable gaming experience with the ASUS TUF GAMING RTX 3090 Ti OC edition Gaming GPU, powered by the groundbreaking NVIDIA Ampere Architecture boasting 2nd generation RT cores and 3rd generation tensors with breathtaking improvements to graphical performance with a staggering 24GB of GDDR6X memory with a whopping 1TB of bandwidth. The TUF Gaming GeForce RTX™ 3090 Ti takes an expertly sculpted design and refines it even further. Its trio of Axial-tech fans are 20% taller and feature a half-width barrier ring designed for increased airflow. Additional fan turbulence optimizations keep noise levels down as the GPU dishes out frames, and a stop mode brings fans to a standstill during light usage. Passive cooling also gets a boost by expanding heatsink size, bringing the card’s total width to 3.2-slots. And alongside, a slew of enhancements championed by its award-winning predecessors ensure the TUF is an absolute powerhouse for builders on the hunt for gaming bliss.
10752 Cuda Cores
1920 MHz Core Clock
1950 MHz Boost Clock (OC Mode)
24GB GDDR6X Memory

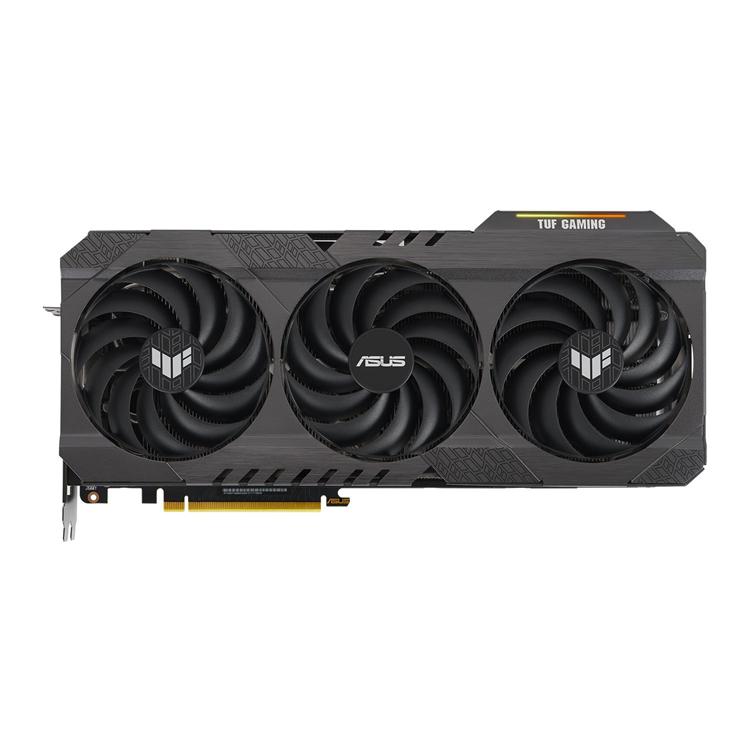

Axial-Tech Fan Upgrades
DUAL BALL BEARING FANS
TUF Gaming cards leverage the tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
TUF Gaming cards leverage the tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
Keep Cool – Sub 50° GPU Temperatures
EACH FAN HAS ITS OWN ROLE
The fans for the TUF 30 Series GPUs have been smartly tuned with a reversed rotation for the center fan, which reduces the overall air turbulence and allows Fan-Stop mode to kick in when temps fall below 50° increasing the longevity of your card and its components but also giving you unprecedented performance with less noise and minimal distraction.
The fans for the TUF 30 Series GPUs have been smartly tuned with a reversed rotation for the center fan, which reduces the overall air turbulence and allows Fan-Stop mode to kick in when temps fall below 50° increasing the longevity of your card and its components but also giving you unprecedented performance with less noise and minimal distraction.
Maximum Contact for Maximum Cooling
POLISHED FOR MAXIMUM PERFORMANCE
In order to ensure maximum benefit from the upgraded axial-fan design ASUS have incorporated a new manufacturing process that polishes the surface of the heat-spreader down to a microscopic level. The even surface allows for maximum contact with the die and improved thermal transfer.
In order to ensure maximum benefit from the upgraded axial-fan design ASUS have incorporated a new manufacturing process that polishes the surface of the heat-spreader down to a microscopic level. The even surface allows for maximum contact with the die and improved thermal transfer.
Bigger Heatsink to Provide Better Cooling
3.2 – SLOT DESIGN
The heat spreader wicks heat up into heatpipes that distribute it throughout the fin stack. The increased heatsink size provides more thermal headroom for the new high-performance chipset. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.
The heat spreader wicks heat up into heatpipes that distribute it throughout the fin stack. The increased heatsink size provides more thermal headroom for the new high-performance chipset. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.
Updated Shroud Design is Both Functional and Beautiful
NOT JUST A PRETTY FACE
The TUF 30 series graphics cards boast an all-aluminium no nonsense industrial designed shroud with a greyscale colourway that will allow the GPU to easily fit into any setup without drawing too much attention. The topside RGB element can be customised via ASUS Armory Crate and synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3090 ti, one 16-pin connector is present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
The TUF 30 series graphics cards boast an all-aluminium no nonsense industrial designed shroud with a greyscale colourway that will allow the GPU to easily fit into any setup without drawing too much attention. The topside RGB element can be customised via ASUS Armory Crate and synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3090 ti, one 16-pin connector is present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.
NVIDIA Ampere Architecture
2ND GEN RT CORES 2X THROUGHPUT
3RD GEN TENSOR CORES UP TO 2X THROUGHPUT
NEW SM 2X FP32 THROUGHPUT
DLSS AI Acceleration
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. IT’S ON.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
VICTORY MEASURED IN MILLISECONDS
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
NVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
UP YOUR CREATIVE GAME
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Take your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
STREAM LIKE A BOSS
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DIRECTX 12 ULTIMATE OFFERS FEATURES LIKE RAY TRACING AND VARIABLE RATE SHADING
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GAMING
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
Step up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
GEFORCE EXPERIENCE
The essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
GAME READY DRIVERS
Get the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
VIRTUAL REALITY
Take your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
NVIDIA G-SYNC
Get smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
NVIDIA ANSEL
Turn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
| SPECIFICATIONS | |
| Brand | Asus |
| Series | Tuf Gaming |
| Model | TUF-RTX3090TI-O24G-GAMING |
| Chipset | |
| GPU | GeForce RTX 3090 Ti |
| Chipset Manufacturer | NVIDIA |
| Interface | PCI-E 4.0 x16 |
| Base Clock | 1560 MHz |
| Boost Clock | 1920 MHz |
| CUDA Cores | 10752 |
| GPU Architecture | NVIDIA Ampere Architecture |
| Memory | |
| Effective Memory Clock | 21 Gbps |
| Memory Size | 24GB |
| Memory Interface | 384-bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Vulkan | 1.3 |
| Connectivity | |

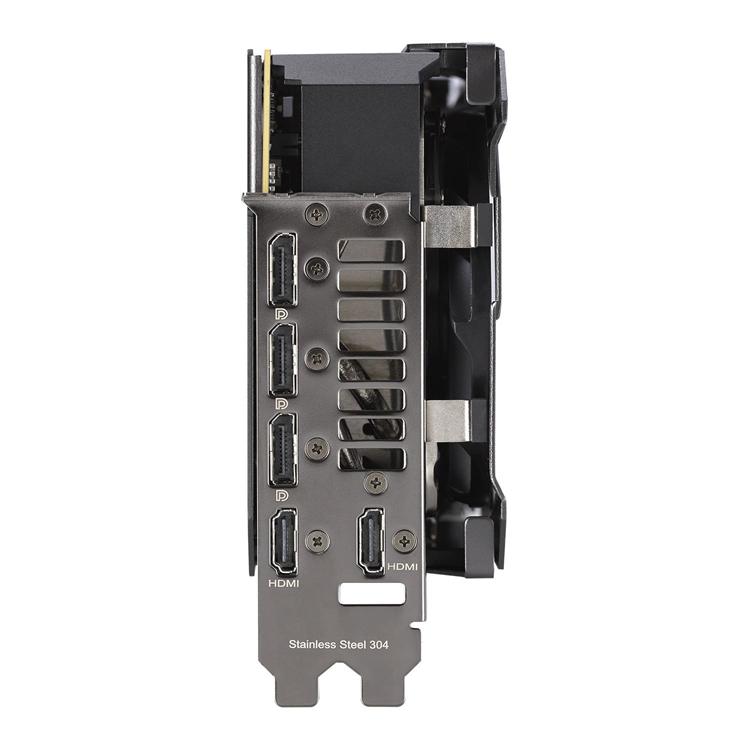

| Ports | 3x DisplayPort 1.4a |
| 2x HDMI 2.1 | |
| HDCP Support | Yes |
| Multi-Monitor Support | 4 |
| Maximum Digital Resolution | 7680×4320 |
| VR Ready | Yes |
| SLI Support | Yes |
| Features | Axial Tech Fans |
| MAXContact Technology | |
| Tuf Components | |
| Aluminium Shroud | |
| GPU Tweak II | |
| Aura Sync RGB Technology | |
| NVIDIA Ampere Architecture | |
| Real-Time Ray Tracing Technology | |
| NVIDIA DLSS Ground-Breaking AI Rendering Technology | |
| Microsoft DirectX 12 Ultimate | |
| NVIDIA GeForce Experience | |
| NVIDIA G-SYNC | |
| NVIDIA GPU Boost | |
| 7th Gen NVIDIA Encoder | |
| 5th Gen NVIDIA Decoder | |
| Power Requirements | |
| Recommended Power Supply | 850W |
| Power Consumption | 450W |
| Power Connector | 1x 16-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 3 Slots |
| Dimensions | 326 x 140 x 63 mm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
