Description
Part number90MB1C10-M0EAY0
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | PRIME B650 |

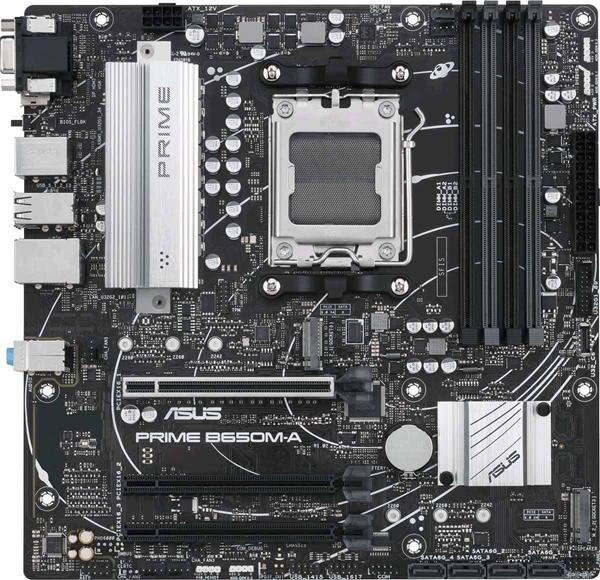

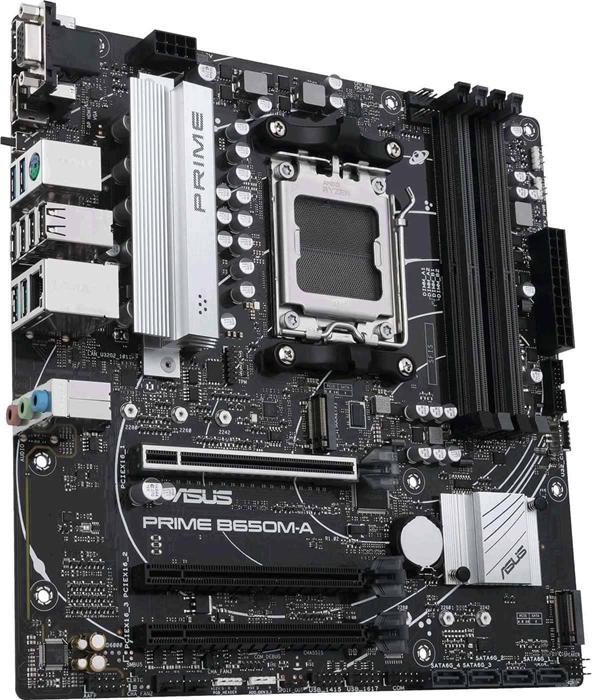

| Model | PRIME B650M-A |
| CPU | AMD Socket AM5 For AMD Ryzen 7000 Series Desktop Processors* |
| * Refer To www.asus.com For CPU Support List. | |
| Chipset | AMD B650 Chipset |
| Memory | 4 X DIMM, Max. 128GB, DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC And Non-ECC, Un-Buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles For Overclocking (EXPO) | |
| OptiMem II | |
| * Supported Memory Types, Data Rate(Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Refer To Www.Asus.Com For Memory Support List. | |
| * Non-ECC, Un-Buffered DDR5 Memory Supports On-Die ECC Function. | |
| Graphics | 1x DisplayPort** |
| 1x VGA Port | |
| 1x HDMI Port*** | |
| * Graphics Specifications May Vary Between CPU Types. Please Refer To AMD CPU Specifications. | |
| ** Supports Max. 8K@60Hz As Specified In DisplayPort 1.4. | |
| *** Supports 4K@60Hz As Specified In HDMI 2.1. | |
| Expansion Slots | AMD Ryzen 7000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD B650 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x1 mode) | |
| Storage | Total Supports 2x M.2 Slots And 4 X SATA 6Gb/S Ports* |
| AMD Ryzen 7000 Series Desktop Processors | |
| M.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 5.0 X4 Mode) | |
| AMD B650 Chipset | |
| M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) | |
| 4 X SATA 6Gb/S Ports | |
| * AMD RAIDXpert2 Technology Supports Both PCIe RAID 0/1/10 And SATA RAID 0/1/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 8 Ports) |
| 2x USB 3.2 Gen 2 Ports (2 X Type-A) | |
| 2x USB 3.2 Gen 1 Ports (2 X Type-A) | |
| 4x USB 2.0 Ports (4 X Type-A) | |
| Front USB (Total 7 Ports) | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C) | |
| 1x USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support 4 Additional USB 2.0 Ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| – Supports Up To 24-Bit/192 KHz Playback | |
| Audio Features | |
| – Audio Shielding | |
| – Premium Audio Capacitors | |
| – Dedicated Audio PCB Layers | |
| * A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output. | |

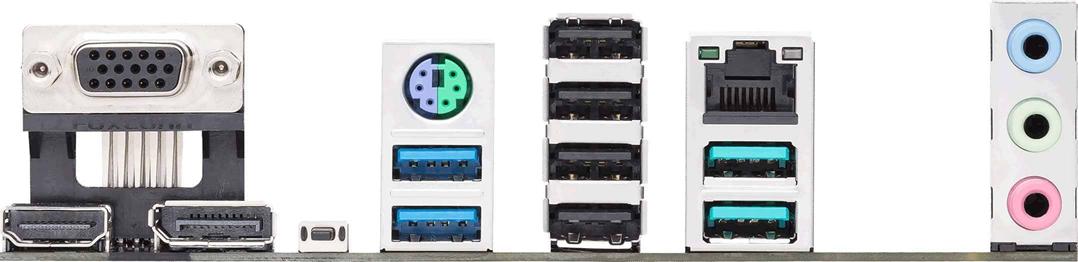

| Back Panel I/O Ports | 2x USB 3.2 Gen 2 Ports (2 X Type-A) |
| 2x USB 3.2 Gen 1 Ports (2 X Type-A) | |
| 4x USB 2.0 Ports (4 X Type-A) | |
| 1x DisplayPort | |
| 1x VGA Port | |
| 1x HDMI Port | |
| 1x Realtek 2.5Gb Ethernet Port | |
| 3x Audio Jacks | |
| 1x BIOS FlashBack Button | |
| 1x PS/2 Keyboard/Mouse Combo Port | |
| Internal I/O Connectors | Fan And Cooling Related |
| 1x 4-Pin CPU Fan Header | |
| 1x 4-Pin CPU OPT Fan Header | |
| 3x 4-Pin Chassis Fan Headers | |
| Power Related | |
| 1x 24-Pin Main Power Connector | |
| 1x 8-Pin 12V Power Connector | |
| Storage Related | |
| 2x M.2 Slots (Key M) | |
| 4x SATA 6Gb/S Ports | |
| USB | |
| 1x USB 3.2 Gen 1 Connector (Supports USB Type-C ) | |
| 1x USB 3.2 Gen 1 Header Supports 2 Additional USB 3.2 Gen 1 Ports | |
| 2x USB 2.0 Headers Support 4 Additional USB 2.0 Ports | |
| Miscellaneous | |
| 3x Addressable Gen 2 Headers | |
| 1x Aura RGB Header | |
| 1x Clear CMOS Header | |
| 1x COM Port Header | |
| 1x Front Panel Audio Header (AAFP) | |
| 1x S/PDIF Out Header | |
| 1x Speaker Header | |
| 1x SPI TPM Header (14-1pin) | |
| 1x 10-1 Pin System Panel Header | |
| Special Features | ASUS 5X PROTECTION III |
| – DIGI VRM | |
| – LANGuard | |
| – Overvoltage Protection | |
| – Safeslot Core | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – Q-DIMM | |
| – Q-LED Core | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – VRM Heatsink Design | |
| ASUS EZ DIY | |
| – BIOS FlashBack Button | |
| – BIOS FlashBack LED | |
| Aura Sync | |
| – Aura RGB Header | |
| – Addressable Gen 2 Headers | |
| BIOS | 256 Mb Flash ROM |
| UEFI AMI BIOS | |
| Form Factor | mATX Form Factor |
| 24.4 cm x 24.4 cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
