Description
Part number90MB1EH0-M0EAY0
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | PRIME Series |

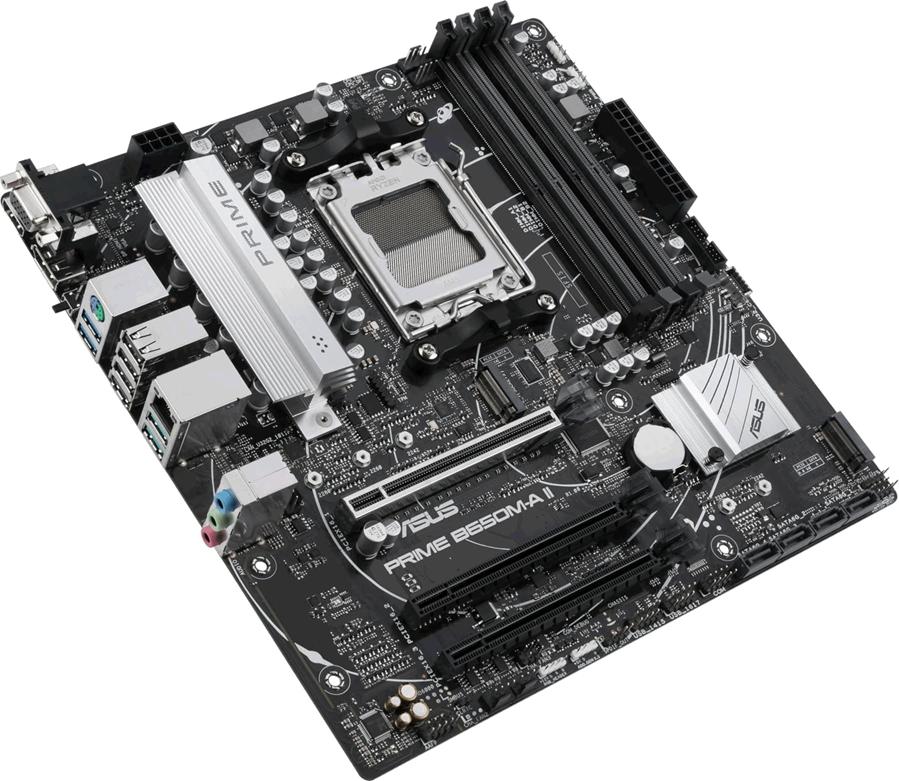

| Model | PRIME B650M-A II (90MB1EH0-M0EAY0) |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory Support | |
| AMD Ryzen 7000 Series | 4x DIMM slots, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO) | |
| OptiMem II | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160 @ 60Hz |
| DisplayPort | 1x DisplayPort 1.4 ports, supporting a maximum resolution of 8K 7680×4320 @ 60Hz, Support for HDCP 2.3 |
| VGA | 1x VGA D-Sub Support maximum resolution of 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz |
| Integrated AMD graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| AMD B650 Chipset | 2x PCIe 4.0 x16 Physical, x1 Electrical Slots |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| AMD B650 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4 x SATA3 6.0 Gb/s Connectors | |
| Supports RAID 0, RAID 1, RAID 10 for SATA storage devices | |
| Supports RAID 0, RAID 1, RAID 10 for NVMe storage devices | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN Port 10/100/1000/2500Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Connectivity | |

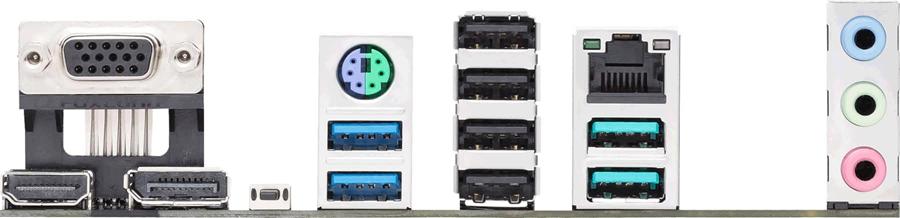

| Ports | 2x USB 10Gb/s Type-A Ports |
| 2x USB 5Gb/s Type-A Ports | |
| 4x USB 2.0 Type-A Ports | |
| 1x BIOS FlashBack button | |
| 1x HDMI 2.1 TMDS | |
| 1x DisplayPort 1.4 | |
| 1x VGA D-Sub Port | |
| 1x PS/2 Combo Port | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x BIOS FlashBack button |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 3x 4-pin Chassis Fan headers | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 1 connector (supports USB Type-C ) | |
| 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 3x Addressable Gen 2 headers | |
| 1x Aura RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF Out header | |
| 1x Speaker header | |
| 1x SPI TPM header (14-1pin) | |
| 1x 10-1 pin System Panel header | |
| LED Displays | 1x BIOS FlashBack LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | 2x SATA 6Gb/s cables |
| 1x I/O Shield | |
| 1x Screw package for M.2 SSD | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
