Description
Part number90MB1BL0-M0EAY0
ASUS Introduces the PRIME X670E-PRO WIFI Motherboard: Designed To Enhance AMD Socket AM5 Processors

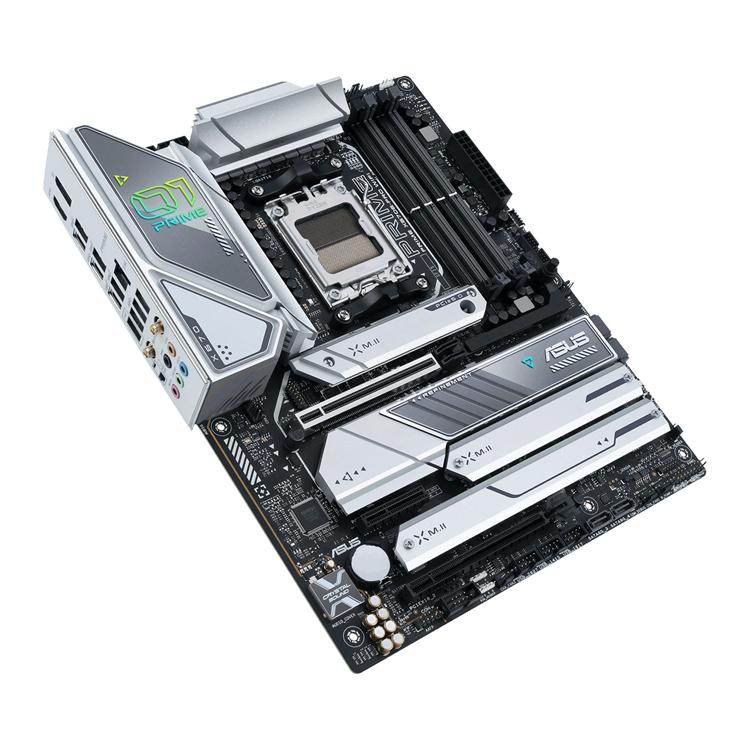

ASUS Prime X670E-PRO WIFI Socket AM5 (LGA 1718) Ryzen 7000 ATX Motherboard w/ PCIe 5.0, 4x DDR5 Slots, 14+2 Teamed Power Stages, 4x M.2 slots, 2x USB 3.2 Gen 2×2 (20Gbps) Type-C ports, Thunderbolt 4 / USB 4 Type-C (40Gbps) header, WIFI 6E, and 2.5G Ethernet
The ASUS Prime X670E-PRO WIFI 6E built for productivity with a robust power design, comprehensive cooling solutions and intelligent tuning options to unleash the full potential of AM4 Ryzen processors.
This ASUS Prime X670E-PRO WIFI 6E Motherboard is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.
The ASUS Prime X670E-PRO WIFI 6E built for productivity with a robust power design, comprehensive cooling solutions and intelligent tuning options to unleash the full potential of AM4 Ryzen processors.
This ASUS Prime X670E-PRO WIFI 6E Motherboard is perfect for those seeking to create a sleek, futuristic-looking build, thanks to its black and white finish and iridescent metallic nameplate and PCB cover.
-
- AMD Socket AM5:
The brand new AM5 Socket LGA 1718 is specifically designed for AMD Ryzen™ 7000 Series Desktop Processors
- AMD Socket AM5:
-
- Comprehensive Cooling:
Large VRM Heatsinks, M.2 heatsinks, PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™, Hybrid Fan Headers and Fan Xpert 4
- Comprehensive Cooling:
Features
-
- AMD Socket AM5 (1,718 Pins): Ready for AMD Ryzen™ 7000 Series Desktop Processors
-
- Enhanced Power Solution: 14+2 teamed power stages, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
-
- Next-Gen Connectivity: PCIe® 5.0, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type-C, USB4® header support
-
- Made For Online Gaming: Realtek 2.5 Gb Ethernet, WiFi 6E and LANGuard
-
- Two-Way AI Noise Cancelation: Reduces background noise from the mic and audio outputs for crystal-clear communication in games or video calls
-
- Outshine RGB Aura Effect: Stylish edge lighting design, addressable RGB headers and RGB strip header support
Supports AMD Ryzen™ 7000 Series Desktop Processors for AMD Socket AM5 (LGA 1718)
High-Performance Networking:
Enjoy an onboard WiFi 6E with IEEE 802.11 ax + Bluetooth v5.2, an Intel® 2.5 Gb RJ45 Port along with ASUS LANGuard give you incredible networking.
Fast Gaming Connectivity:
A single PCIe® 5.0 x16 Slot (x16 mode only), 1x PCIe 5.0 M.2 slot + 2x PCIe 4.0 M.2 slots + 1x PCIe 3.0 M.2 slots, and 4x SATA III ports. AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Unmatched Personalization:
ASUS-exclusive Aura Sync RGB lighting includes one Aura Sync RGB header and two addressable Gen 2 RGB headers.
Compatibility
Supports AMD Ryzen™ 7000 Series Desktop Processors for AMD Socket AM5 (LGA 1718)
System Requirements
-
- Windows® 11, 64bit
Specifications
| Make and Model | ASUS Prime X670E-PRO WIFI Motherboard |
|---|---|
| Part Number | PRIME X670E-PRO WIFI |
| Windows® Support | Windows® 11, 64 bit |
| CPU Support | Ryzen™ 7000 Series Desktop Processors for Socket AM5 |
| Chipset | AMD X670 Chipset |
| CPU Socket | AMD Socket AM5 |
| Memory | 4x DDR5 RAM Slots, 128GB Maximum (4x 32GB) of ECC & non-ECC Un-buffered Memory Supports Overclocked DDR5 RAM: DDR5-6400+ / 6400 / 6200 / 6000 / 5800 MHz Supports Stock Clocked DDR5 RAM: DDR5-5600 / 5400 / 5200 / 5000 / 4800 MHzDual Channel Memory Architecture Supports AMD EXtended Profiles for Overclocking (EXPO™) OptiMem II |
| Onboard Graphics | 1x HDMI v2.1 port (Up to 4K UHD @ 60Hz) 1x DisplayPort v1.4 port (Up to 8K UHD @ 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 slot (supporting Video Cards in x16 mode only) 1x PCIe 4.0 x16 slot (supports x4 mode) 1x PCIe 4.0 x4 slot (supports x4 mode) |
| Storage | 4x M.2 NVMe Slots: M.2_1 slot (Key M) PCIe 5.0 x4, type 2242 / 2260 / 2280 M.2_2 slot (Key M), PCIe 3.0 x4 or SATA, type 2242 / 2260 / 2280 / 22110* * M.2_2 slot shares bandwidth with SATA_1&2 ports. When M.2_w runs at PCIe x4 mode, SATA_1&2 will be disabled M.2_3 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 M.2_4 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 AMD RAID Xpert Technology supports NVMe RAID 0 / 1 / 10 4x SATA 6Gb/s ports AMD RAID Xpert Technology supports SATA RAID 0/1/10 |
| USB | Rear USB Ports: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 3x USB 3.2 Gen 2 (10Gbps) Type-A ports 1x USB 3.2 Gen 1 (5Gbps) Type-C port 4x USB 3.2 Gen 1 (5Gbps) Type-A ports Internal USB Ports via USB Headers: 1x USB 4.0 (40Gbps) Type-C / Thunderbolt™ 4 (40Gbps) header 1x USB 3.2 Gen 2 (10Gbps) header supports 1x USB 3.2 Type-C port 1x USB 3.2 Gen 1 (5Gbps) header supports 2x USB 3.2 Gen 1 (5Gbps) Type-A ports 3x USB 2.0 headers support 6x USB 2.0 (480Mbps) ports |
| Thunderbolt 4 Port | 1x Thunderbolt™ 4 (40Gbps) / USB 4.0 (40Gbps) Type-C header |
| LAN | Realtek LAN Chipset: 1x 2.5GbE RJ45 LAN port ASUS LANGuard |
| Wi-Fi | Wi-Fi 6E Wireless Chipset: IEEE 802.11 a/b/g/n/ac/ax TriBand (2.4 / 5 / 6GHz) WiFi w/ 2×2 Antenna |
| Bluetooth | Wi-Fi 6E Wireless Chipset: Bluetooth® v5.2 |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*: * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* * (Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.) Audio Features: – DTS® Ultra 3D Audio Processing – Power pre-regulator reduces power input noise to ensure consistent performance – Premium Audio Capacitors – Dedicated Audio PCB Layers – Audio Cover – Unique De-Pop Circuit |

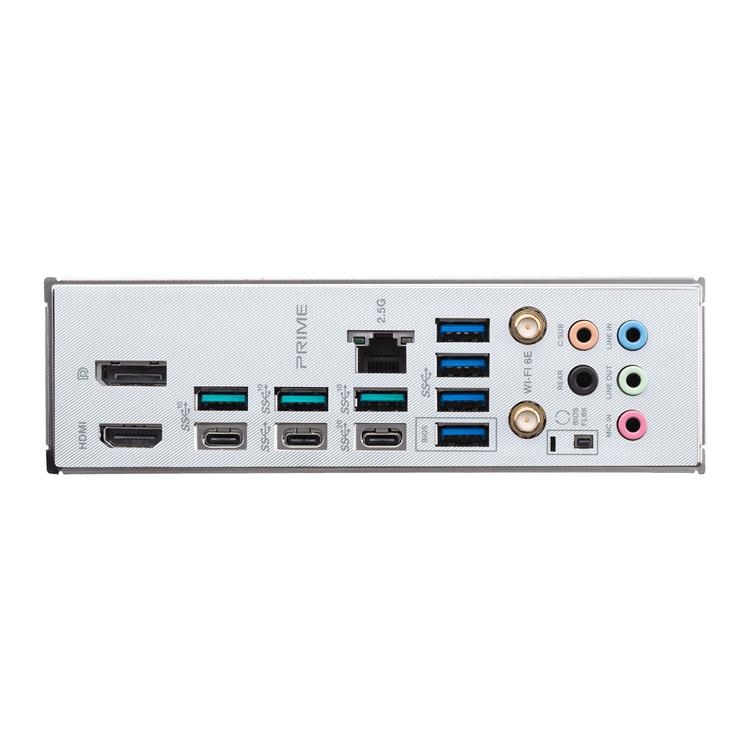

| Rear I/O Ports | 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 3x USB 3.2 Gen 2 (10Gbps) Type-A ports 1x USB 3.2 Gen 1 (5Gbps) Type-C port 4x USB 3.2 Gen 1 (5Gbps) Type-A ports 1x HDMI v2.1 port (4K UHD @ 60Hz) 1x DisplayPort v1.4 port (8K UHD @ 60Hz)1x 2.5Gb RJ45 Ethernet port 2x WiFi Antenna jacks 5x 3.5mm Audio jacks1x BIOS FlashBack™ Button |
| Internal I/O Connectors | Fan and Cooling: 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan header 1x W_PUMP+ header Power: 1x 24-pin Main Power connector 2x 8-pin +12V Power connectorsStorage: M.2_1 slot (Key M) PCIe 5.0 x4, type 2242 / 2260 / 2280 M.2_2 slot (Key M), PCIe 3.0 x4 or SATA, type 2242 / 2260 / 2280 / 22110* M.2_3 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 M.2_4 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 4x SATA III 6Gb/s ports USB: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 3x USB 3.2 Gen 2 (10Gbps) Type-A ports 5x USB 3.2 Gen 1 (5Gbps) Type-A portsMiscellaneous: 1x Thunderbolt™ 4 (40Gbps) / USB 4.0 (40Gbps) Type-C header 2x Addressable Gen 2 headers 1x AURA RGB header 1x Clear CMOS button 1x COM Port header 1x CPU Over Voltage jumper 1x Front Panel Audio header (AAFP) 1x Power button 1x SPI TPM header (14-1pin) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thermal Sensor header |
| BIOS Management | 256Mb Flash w/ UEFI AMI BIOS WOL by PME, PXE |
| Software Features | ASUS Exclusive Software: Armoury Crate – Aura Sync – Fan Xpert 4 with AI Cooling II – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Easy Optimization – DIGI+ VRM – Turbo app – PC CleanerTUF GAMING CPU-Z DTS® Ultra 3D Audio ProcessingMyAsus Norton Anti-virus software (Free Trial version) WinRAR |
| Special Features | Armoury Crate: – AURA Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving – Two-Way AI Noise Cancelation AI Suite 3: – Easy Optimization – DIGI+ VRM – Turbo app – PC CleanerASUS CPU-Z DTS:X® UltraMyAsus Norton Anti-virus software (Free Trial version) WinRAR ASUS EZ DIY: MemTest86 |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | 305 x 244mm |
| Weight | N/A |
Package Contents
-
- ASUS Prime X670E-PRO WIFI Motherboard
-
- 2x SATA 6Gb/s cables
-
- 1x ASUS Wi-Fi moving antenna
-
- 2x Rubber Packages for M.2
-
- 2x Screw packages for M.2 SSD
-
- 1x Q-Connector
-
- 1x Support DVD
-
- 1x User Guide
