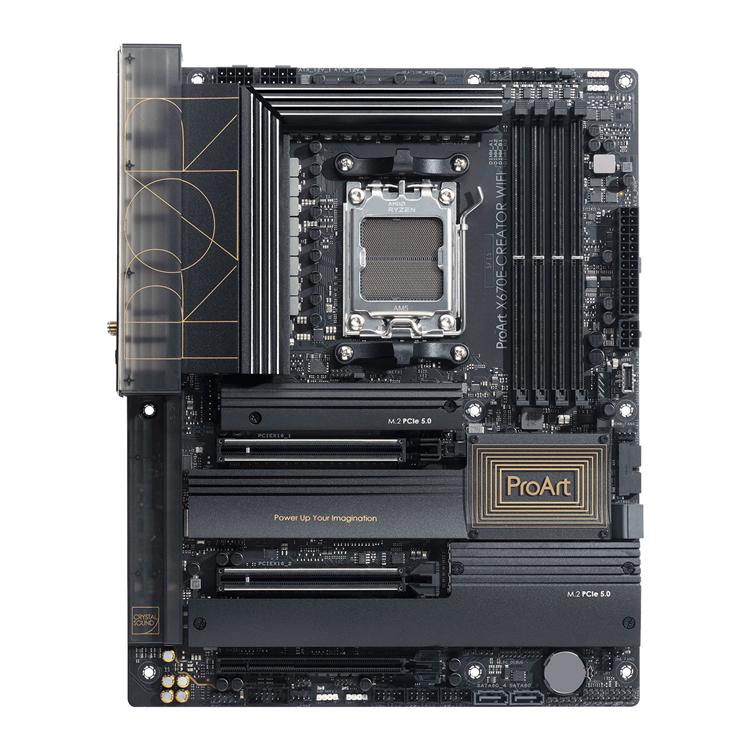

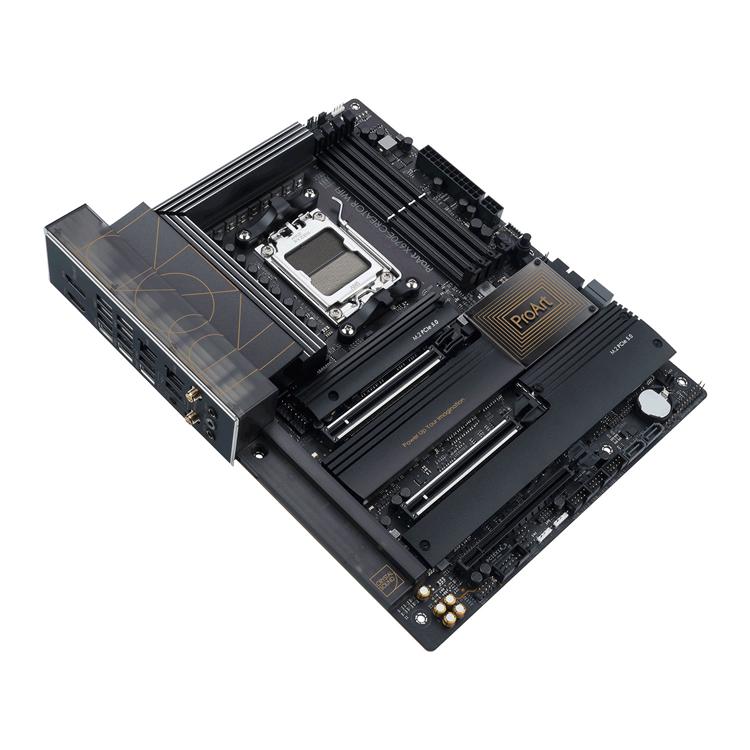

ASUS PROART X670E-CREATOR WIFI AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard
ASUS PROART X670E-CREATOR WIFI AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard - Image 2
ASUS PROART X670E-CREATOR WIFI AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard - Image 3
ASUS PROART X670E-CREATOR WIFI AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard - Image 4

ASUS PROART X670E-CREATOR WIFI AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard

R11107.00 Incl. Vat

KEY FEATURES:
– ATX Form Factor
– AMD X670 Chipset
– Socket AM5
– 4x DDR5 DIMM Slots, Supports Up To 128GB
– Supports Up to DDR5-6400MHz (OC)
– Supports AMD EXPO DDR5 Modules
– 2x PCIe 5.0 x16 Slots
– 1x PCIe 4.0 x16 Slots (Support x2 Mode)
– 2x M.2 2280 PCIe 5.0 x4 NVMe SSD Slots
– 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 6.0Gbps Ports
– 2x USB 4.0 40Gbps Type-C
– 7x USB 3.2 Gen 2 10Gbps Type-A Ports
– 1x USB 2.0 Type-A Ports
– 1x DisplayPort (Input Mode Only), 1x HDMI Port
– Intel 2.5 Gigabit Ethernet RJ-45 LAN
– Marvell AQtion 10 Gigabit Ethernet RJ-45 LAN
– AMD WiFi 6E 2×2 MIMO Tri-Band Adapter, Bluetooth 5.2
– Realtek High Definition Audio CODEC S1220A
– ASUS 5X PROTECTION III
– ASUS Armoury Crate
– ASUS Q-Design
– Bespoke Motherboard Design & Business Focused Features
– 3 Year Warranty

Out of stock

SKU: ASUS PROART X670E-CREATOR WIFI Categories: , , , , , , Tags: , , , , , , , , ,

Description

Part number90MB1B90-M0EAY0

ASUS Introduces The PROART X670E-CREATOR WIFI Motherboard: Designed To Enhance AMD Socket AM5 Processors

The ASUS ProArt X670E-Creator WiFi 6E perfects the art of performance, empowering creativity and maximizing the computing power of the latest AMD® Ryzen™ 7000 Series Processors with powerful hardware and software, efficient cooling and lightning-fast connectivity; including PCIe 5.0 x16 slots (x16 or x8/x8 modes), NVMe M.2 PCIe 5.0 Slots, USB 4.0 Ports (40Gbps), 10Gb & 2.5Gb LAN Ports, and WiFi 6E with Bluetooth v5.2 Wireless.
ProArt Series Motherboards Give You More
ASUS uses a 2-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control.

    • AMD Socket AM5
      The brand new AM5 Socket LGA 1718 is specifically designed for AMD Ryzen™ 7000 Series Desktop Processors
    • Robust Power Solution:
      16 + 2 teamed power stages, ProCool power connectors, high-quality alloy chokes and durable capacitors

Features

Supports AMD Ryzen™ 7000 Series Desktop Processors for AMD Socket AM5 (LGA 1718)

Overclocking Technologies:
Dynamic OC Switcher, Ryzen Core Flex, and AI Overclocking get more out of your AMD Rysen 7000 Series Processor.
High-Performance Networking:
Onboard WiFi 6E with IEEE 802.11 ax + Bluetooth v5.2, Intel® 10GB + 2.5 Gb RJ45 Ports along with ASUS LANGuard give you incredible netoworking.
The Fastest Gaming Connectivity:

Dual PCIe® 5.0 x16 Slots (x16 or x8/x8 modes), 2x PCIe 5.0 M.2 slots + 2x PCIe 4.0 M.2 slots, 2x PCIe 4.0 M.2 slots, Dual USB 4.0 (40Gbps) ports and Thunderbolt™ header.
Unmatched Personalization:
ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, SafeSlot, SafeDIMM, pre-mounted I/O shield, BIOS FlashBack™, and Q-Connector make building a PC with this ProArt Motherboard.
Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability.

Compatibility

Supports AMD Ryzen™ 7000 Series Desktop Processors for AMD Socket AM5 (LGA 1718)

System Requirements

    • Windows® 11 / 10, 64bit

Specifications

Make and Model ASUS PROART X670E-CREATOR WIFI Motherboard
Part Number PROART X670E-CREATOR WIFI
Windows® Support Windows® 11 / 10, 64 bit
CPU Support Ryzen™ 7000 Series Desktop Processors for Socket AM5
Chipset AMD X670 Chipset
CPU Socket AMD Socket AM5
Memory 4x DDR5 RAM Slots, 128GB Maximum (4x 32GB) of ECC & non-ECC Un-buffered Memory
Supports Overclocked DDR5 RAM: DDR5-6400+ / 6400 / 6200 / 6000 / 5800 MHz
Supports Stock Clocked DDR5 RAM: DDR5-5600 / 5400 / 5200 / 5000 / 4800 MHzSupports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Expansion Slots 2x PCIe 5.0 x16 slots (supporting Video Cards in x16 or x8/x8 modes)
1x PCIe 4.0 x16 slot (supports x2 mode)*
*The PCIe 4.0 x16 slot shares bandwidth with M.2_3 slot. The BIOS must be used to activate the PCIe 4.0 x16 slot.
Onboard Graphics 1x HDMI v2.1 port (Up to 4K UHD @ 60Hz)
2x USB 4.0 Type-C ports support Alt Display Mode*
(2x DisplayPort v1.4 outputs support up to 8K UHD @ 60Hz)
*Using USB 4.0 Type-C port Alt Display Mode requires an optional USB Type-C to DisplayPort adapter cable
Storage 4x M.2 NVMe Slots:
2x M.2 (Key M) PCIe 5.0 x4 Slots, type 2242 / 2260 / 2280
1 M.2 (Key M) PCIe 4.0 x4 Slot*, type 2242 /2260 / 2280
1x M.2 (Key M) PCIe 4.0 x4 Slot, type 2242 / 2260 / 2280 / 22110
All M.2 Slots support RAID 0, 1 and 10 via AMD RAIDXpert2
*This M.2 (Key M) PCIe 4.0 x4 Slot shares bandwidth with the PCIe 4.0 x16 Card Slot. By default, the BIOS automatically activates the M.2 (Key M) PCIe 4.0 x4 Slot.4x SATA III 6Gb/s connectors support RAID 0, 1 and 10 via AMD RAIDXpert2
USB Rear USB Ports:
2x USB 4 (40Gbps) Type-C ports
1x USB 3.2 Gen 2×2 (20Gbps) Type-C port
7x USB 3.2 Gen 2 (10Gbps) Type-A ports
1x USB 2.0 (480Mbps) Type-A port
Internal USB Ports via USB Headers:
1x USB 3.2 Type-C Gen 2×2 header supports 1x USB 3.2 Type-C Gen 2×2 (20Gbps) port
(w/ 60W Power Delivery / Quick Charge 4+)
1x USB 3.2 Gen 1 header supports 2x USB 3.2 Gen 1 (5Gbps) ports
3x USB 2.0 headers supports 6x USB 2.0 (480Mbps) ports
LAN Marvell® AQtion 10Gb Chipset:
1x 10GbE RJ45 LAN port
Intel® LAN Chipset:
1x 2.5GbE RJ45 LAN portASUS LANGuard
Wi-Fi Wi-Fi 6E Wireless Chipset:
IEEE 802.11 a/b/g/n/ac/ax TriBand (2.4 / 5 / 6GHz) w/ 2×2 Antenna
Bluetooth Wi-Fi 6E Wireless Chipset:
Bluetooth® v5.2
Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC:
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
(Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.)
Audio Features:
– Power pre-regulator reduces power input noise to ensure consistent performance
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit

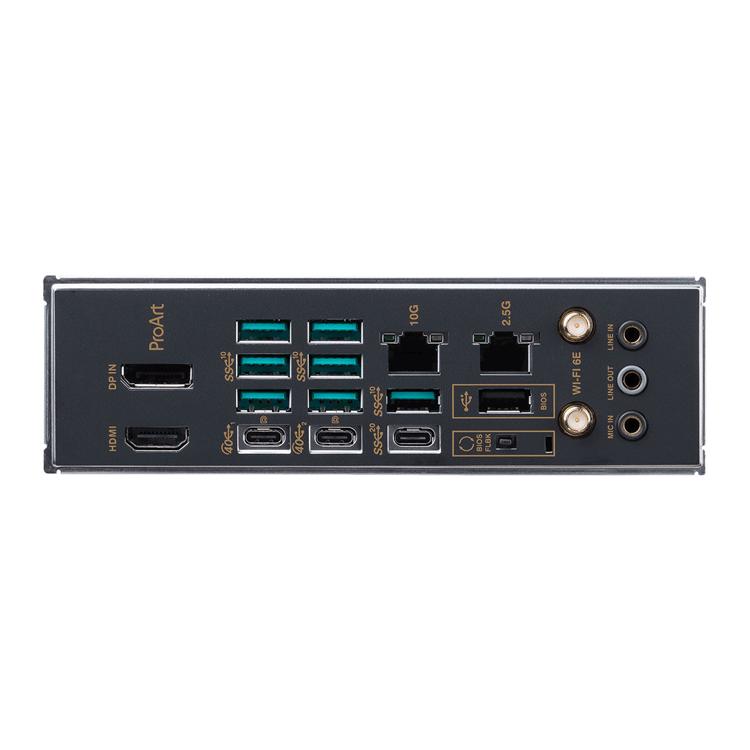

Rear I/O Ports 2x USB 4 (40Gbps) Type-C ports
1x USB 3.2 Gen 2×2 (20Gbps) Type-C port
7x USB 3.2 Gen 2 (10Gbps) Type-A ports
1x USB 2.0 (480Mbps) Type-A port
1x HDMI v2.1 port (4K UHD @ 60Hz)
2x DisplayPort v1.4 ports* via 2x Rear USB 4.0 Type-C ports (8K UHD @ 60Hz)
*Using USB 4.0 Type-C ports in Alt Display Mode requires an optional USB Type-C to DisplayPort adapter cable1x 10Gb RJ45 Ethernet port
1x 2.5Gb RJ45 Ethernet port
2x WiFi Antenna jacks
3x 3.5mm Audio jacks1x BIOS FlashBack™ Button
Internal I/O Connectors Fan and Cooling:
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
5x 4-pin Chassis Fan header
Power:
1x 24-pin Main Power connector
2x 8-pin +12V Power connectors
1x 6-pin PCIe Power connectorStorage:
M.2_1 PCIe 5.0 x4 slot (Key M) type 2242 / 2260 / 2280
M.2_2 PCIe 5.0 x4 slot (Key M) type 2242 / 2260 / 2280
M.2_3 PCIe 4.0 x4 slot (Key M) type 2242 / 2260 / 2280 / 22110
M.2_4 PCIe 4.0 x4 slot (Key M) type 2242 / 2260 / 2280
4x SATA III 6Gb/s ports
USB:
1x USB 3.2 Gen2x2 connector supports 1x USB 3.2 Gen1 (20Gbps) port
1x USB 3.2 Gen1 header supports 2x USB 3.2 Gen1 (5Gbps) ports
3x USB 2.0 headers supports 6x USB 2.0 (480 Gbps) portsMiscellaneous:
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
BIOS Management 256Mb Flash w/ UEFI AMI BIOS
WOL by PME, PXE
Software Features ASUS Exclusive Software:
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TPU
– DIGI+ VRM
– Turbo app
ASUS CPU-Z
IT Management software supported
– ASUS Control Center Express(ACCE)
CreationFirst
MyAsus
Norton Anti-virus software (Free Trial version)
ProArt Creator Hub
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsinks
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMMAURA Sync
– Aura RGB header
– Addressable Gen 2 headers
Bespoke Motherboard Design & Business Focused Features
– 24/7 Reliability
– Overcurrent ProtectionFront Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
– Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
– Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
– Support: up to 60W charging*
*To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
Form Factor ATX Form Factor
Dimensions (LxW) 305 x 244mm
Weight N/A

Package Contents

    • 1x ASUS Wi-Fi External Antenna
    • 1x Q-connector
    • 2x Rubber Packages for M.2
    • 1x M.2 Q-Latch package for M.2 Backplate
    • 1x Rubber Package for M.2 Backplate
    • 1x Screw packages for M.2 SSD
    • 1x ProArt Ruler
    • 1x DisplayPort Cable
    • 4x SATA 6Gb/s Cables
    • 1x ACC Express Activation Key Card
    • 1x User Guide

Additional information

Weight 2 kg
Motherboard Brand

Motherboard Socket Type

Motherboard Form Factor

Motherboard Ram Support

Motherboard Category

Motherboard Chipset
