Description
Part number90MB1B10-M0EAY0
-
- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors.
-
- Intelligent Control: ASUS-exclusive tools including Fan Xpert 4 with AI Cooling II, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration.
-
- Robust Power Solution: 20 + 2 teamed power stages rated for 110 Amps, MicroFine alloy chokes, premium metallic capacitors, and ProCool II power connectors.
-
- Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks, dual M.2 with embedded backplates, and the ROG Water-Cooling Zone.
-
- High-Performance Networking: Onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard.
-
- Ultra-fast Connectivity: PCIe® 5.0, ROG Gen Z.2 card, Gen 5 M.2 slots, USB 3.2 Gen 2×2 front-panel connector, USB4® ports.
-
- Industry Leading Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9218PQ DAC for ultra-low distortion.
-
- Unmatched Personalization: AniMe Matrix™ LED display, 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.
-
- DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, ROG True Voltician, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, and ROG graphics card holder.
-
- Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard.

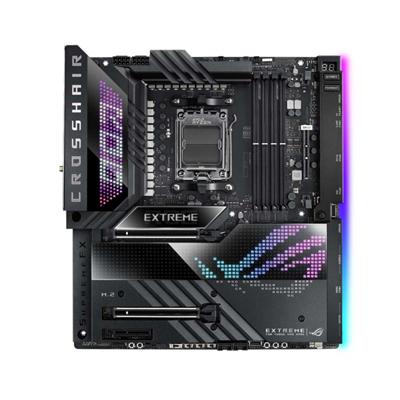

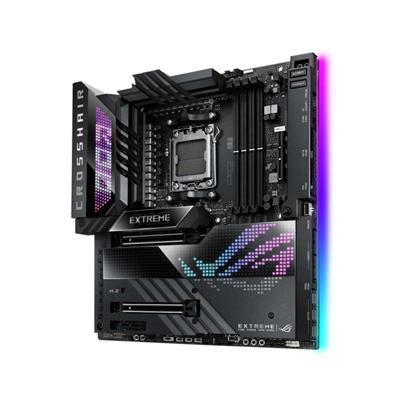

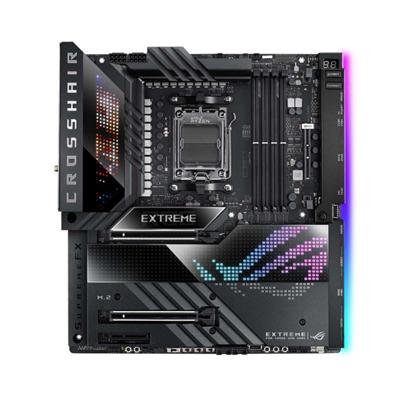

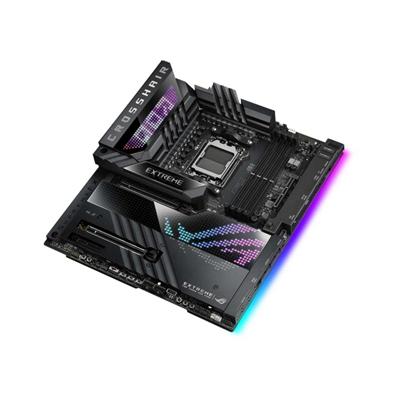

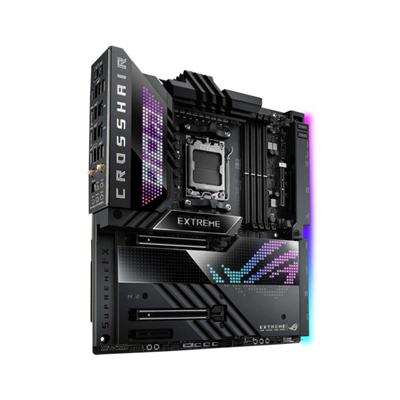

SPECIFICATIONS Brand ASUS Series Crosshair Extreme Model ROG CROSSHAIR X670E EXTREME CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors Chipset AMD X670 / X670E Memory Support AMD Ryzen 7000 Series 4x DIMM, Max. 128GB, DDR5 6400 (OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC,Un-buffered Memory * Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Video DisplayPort 2x USB 4.0 Type-C with DisplayPort Alt Mode, Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Graphics specifications may vary depending on the CPU installed. Expansion Slots CPU Direct 2x PCIe 5.0 x16 Physical, x16 Electrical Slots PCIe 5.0 Slots support x16/x0 or x8/x8 Modes ** *When the PCIe 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. *When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4. AMD X670 Chipset 1x PCIe 4.0 x4 Physical Slot Storage CPU Direct M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** GEN-Z.2_1 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** ** When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4. AMD X670 Chipset GEN-Z.2_2 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6x SATA 6Gb/s Ports* *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. Networking LAN 1x Intel I225-V 2.5 Gigabit Ethernet RJ-45 LAN Port 1x Marvell AQtion 10 Gigabit Ethernet RJ-45 LAN Port ASUS LANGuard WiFi AMD WiFi 6E 2×2 MIMO Tri-Band Adapter Bluetooth Bluetooth 5.3 Audio Codec ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input Supports up to 32-Bit/384 kHz playback DAC ESS ES9218 QUAD DAC Audio Features SupremeFX Shielding Technology LED-illuminated audio jacks Rear optical S/PDIF out port Premium audio capacitors Audio cover Connectivity Ports 2x USB 4.0 40Gbps Type-C Intel JHL8540 Ports 1x USB 3.2 Gen 2×2 20Gbps Type-C Port 1x USB 3.2 Gen 2 10Gbps Type-C Port 8x USB 3.2 Gen 2 10Gbps Type-A Ports 1x Intel 2.5 Gigabit Ethernet RJ-45 LAN Port 1x Marvell AQtion 10 Gigabit Ethernet RJ-45 LAN Port 5x 3.5mm Audio Ports (Support 7.1 Surround) 1x S/PDIF Optical Audio Out 2x SMA Connectors for WiFi Antennas Buttons 1x BIOS FlashBack Button 1x Clear CMOS button General Internal Connectors 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 2x 4-pin Chassis Fan headers 2x 4-pin Radiator Fan headers 2x W_PUMP headers 1x WB_SENSOR header 1x 2-pin Water In header 1x 2-pin Water Out header 1x 3-pin Water Flow header 1x 24-pin Main Power connector 2x 8-pin 12V Power connector 1x 6-pin PCIe Graphics Card connector 1x USB 3.2 Gen 2×2 connector (supports USB Type-C) 1x USB 3.2 Gen 2 connector (supports USB Type-C) 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports 1x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 1x Addressable Gen 2 header 1x Alteration Mode Switch 1x Aura RGB header 1x BIOS Switch button 2x BCLK button 1x FlexKey button 1x Front Panel Audio header (AAFP) 1x LN2 Mode jumper 1x Osc sence header 12x ProbeIt Measurement Points 1x ReTry button 1x RSVD switch 1x RSVD header 1x Safe Boot button 1x Slow Mode switch 1x Start button 1x V_Latch switch 1x 10-1 pin System Panel header 1x Thermal Sensor header LED Displays ASUS Q-LED Diagnostic Array BIOS UEFI AMI BIOS 2x 256 Mb Flash ROM, UEFI AMI BIOS Form Factor EATX Form Factor, 305 x 277 mm (H x W) Operating System Support Windows 10 64-bit Windows 11 64-bit Box Contents 1x 1-to-3 ARGB splitter cable 1x 1-to-2 ARGB splitter cable 2x 1-to-4 fan splitter cable 1x RGB extension cable 3x ROG weave SATA 6G cables pack 1x 3-in-1 Thermistor cables pack 1x ROG Fan Controller 1x Fan EXT PWR cable 1x ARGB input cable 1x USB input cable 1x ROG Fan Controller 3M Mounting tape package 1x Fan Controller manual 1x ROG GEN-Z.2 with heatsink 1x M.2 pad package for ROG GEN-Z.2 2x M.2 screw package for ROG GEN-Z.2 1x PCIe 5.0 M.2 Card with heatsink 1x M.2 screw package for ROG PCIe 5.0 M.2 Card 1x ROG True Voltician 4x cables for ROG True Voltician 1x Thermal pad for M.2 1x ASUS Wi-Fi moving antennas 1x Rubber Package for M.2 backplate 1x Q-connector 2x M.2 Q-Latch packages for M.2 backplate 1x ROG Graphics card holder 1x ROG key chain 1x ROG logo plate sticker 1x ROG screwdriver 1x ROG stickers 1x ROG thank you card 1x USB drive with utilities and drivers 1x User guide Warranty Information Warranty 3 Year Warranty
- Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard.
