Description
Part number90MB1NQ0-M0EAY0
The ASUS ROG Crosshair X870E Glacial is the ultimate AMD AM5 platform motherboard engineered for enthusiast gamers, overclockers, and creators demanding top-tier performance and future-proof connectivity. Built on the AMD X870E chipset, this E-ATX board supports the latest Ryzen™ 9000, 8000, and 7000 series processors, delivering high bandwidth across CPU, memory, storage, and GPU lanes.
A robust 24+2+2 power stage design combines with ASUS’s Dynamic OC Switcher and Core Flex technologies to provide stable and efficient power delivery for extreme CPU and memory overclocking. Memory support extends to up to 256 GB of DDR5, including advanced tuning with NitroPath DRAM enhancements and ASUS’s memory optimizations for performance and compatibility.
Storage flexibility is unmatched with up to seven M.2 slots (including native PCIe 5.0 and add-in cards) and multiple SATA ports, while connectivity includes USB4®, ultra-fast USB 20 Gbps Type-C, and a host of USB 10 Gbps ports. Networking is future-ready with Wi-Fi 7 and dual 10 Gb Ethernet, ensuring low-latency, high-bandwidth connections for gaming and large file transfers.
Unique to this model is a full-color 5″ LCD display on the I/O shroud for real-time stats and aesthetic flair, along with SupremeFX 7.1 audio with a premium DAC for immersive sound. Comprehensive ASUS AI features — including AI Cache Boost, AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II — make tuning and optimizing your system simpler and smarter.
Why It’s a Great Choice
– Ultimate AM5 performance platform: Designed to unleash the full power of AMD Ryzen™ 9000/8000/7000 series processors with a massive VRM and advanced power architecture.
– Top-tier connectivity: Wi-Fi 7 and dual 10 Gb Ethernet deliver ultra-fast networking for gaming, streaming, and large file transfers.
– Future-ready expansion: Support for PCIe 5.0 GPUs and storage plus seven M.2 slots means plenty of room to grow your system.
– Intelligent system tuning: ASUS AI tools make overclocking, cooling, and networking optimizations accessible without expert experience.
– Premium board extras: A built-in LCD display and elite audio codec enhance both aesthetics and immersion, ideal for showcase builds.
– Strong memory performance: Advanced DDR5 support and memory tuning tech help achieve high memory speeds and stability.
– Robust ecosystem: Full ASUS ROG support means easy BIOS updates, UI tuning, and cross-device compatibility with Aura Sync lighting.
Specifications:
| Specification | Details |
|---|---|
| Model | ASUS ROG Crosshair X870E Glacial |
| Form Factor | E-ATX (Extended ATX) |
| CPU Socket | AMD AM5 |
| Chipset | AMD X870E |
| Supported CPUs | AMD Ryzen™ 9000, 8000, 7000 Series Desktop CPUs |
| Power Delivery | 24+2+2 Power Stages, Dynamic OC Switcher, Core Flex |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Max Memory Capacity | 256 GB |
| Memory Features | NitroPath DRAM Tech, AEMP, server-grade enhancements |
| PCIe Slots | 2 × PCIe 5.0 x16 SafeSlots |
| M.2 Storage | Up to 7 × M.2 slots (Gen5 & Gen4 support) |
| SATA Ports | 4 × SATA 6 Gb/s |

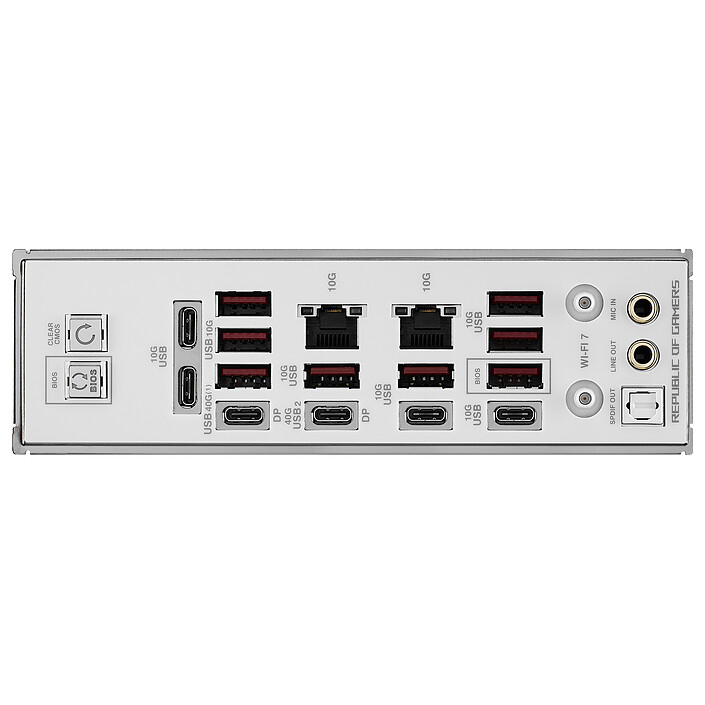

| USB Ports (Rear I/O) | 2 × USB4® (40 Gbps) 2 × USB 20 Gbps Type-C 12 × USB 10 Gbps |
| Internal USB Headers | 2 × USB 5 Gbps headers |
| Ethernet | 2 × 10 Gb Ethernet |
| Wireless | Wi-Fi 7, Bluetooth 5.4 |
| Audio | SupremeFX 7.1 ALC4082 + ESS ES9219 Quad DAC (120 dB SNR playback) |
| BIOS Features | ASUS AI Advisor, advanced UEFI BIOS |
| Cooling Support | Multiple heatsinks, fan headers, integrated I/O VRM heatsinks |
| Special Features | Integrated 5″ full-color LCD, robust ROG Q-Design, BIOS Flashback™ |
| ASUS Exclusive Tools | AI Cache Boost, AI Overclocking, AI Cooling II, AI Networking II |
| RGB Headers | ARGB Gen2 headers |
| Warranty | 3 Years Warranty |
