ASUS ROG Ryujin 360mm AIO OLED Intel/AMD Liquid CPU Cooler
90RC0020-M0UAY0
ROG Ryujin is the flagship all-in-one cooler for high-end builds designed to deliver the best thermal performance. Featuring Noctua IndustrialPPC fans for cooler and quieter operation, plus an embedded fan in the pump housing for additional cooling to the VRM and M.2, ROG Ryujin keeps your system running its absolute best. Coupled with a LiveDash OLED that displays system stats or custom graphics and Aura Sync RGB lighting, ROG Ryujin is the ultimate thermal solution destined to become a vital part of your gaming rig.
COOL TO THE CORE
Noctua IndustrialPPC fan
ROG Ryujin meets the thermal challenges of the latest multi-core CPUs with industrial-grade Noctua iPPC-2000 PWM fans on the radiator that deliver high performance and low-noise operation. The 120-mm fans generate 122 CFM of airflow at 2,000 RPM yet are extremely efficient with a 29.7-dB(A) acoustic footprint that’s much quieter than competing fans.
Pump embedded fan
While powerful, liquid cooling does not circulate air around the CPU socket like a traditional heatsink and fan. ROG Ryujin overcomes this limitation with a 60mm fan embedded in the pump housing that circulates air to the CPU VRMs, M.2 slot and surrounding components to dramatically reduce temperatures for improved performance and stability.
NEXT LEVEL OF CUSTOMIZATION
LiveDash OLED
ROG Ryujin is the world’s first AIO cooler to feature an embedded 1.77-inch LiveDash color OLED that displays useful system information*, such as temperatures, voltages, fan speeds, or frequencies. You can also customize LiveDash to display a customized image or animation** highlighting your clan insignia or gamertag.
*Hardware monitoring feature is only compatible with ASUS motherboards.
**OLED only support GIF’s and JPG files which are 160 x 128 pixels.
Complete LiveDash customizability
The LiveDash software utility lets you easily customize ROG Ryujin’s LiveDash OLED display and RGB lighting effects. Select which system stats to monitor, choose personalized GIFs and images to display, and control RGB lighting from an intuitive interface that arranges settings in a step-by-step flow from top to bottom.
Subtle, striking, sleek

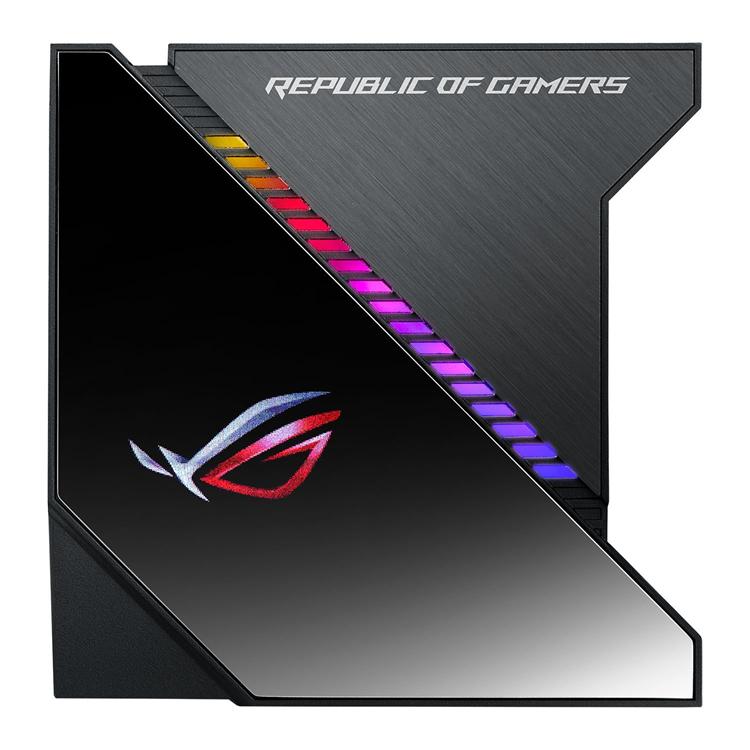

Infused with Aura RGB lighting in dramatic slash patterns on the shroud, Ryujin exudes a vibrant glow that highlights the CPU at the heart of your build
PERFECT SYNCHRONIZATION
The impact of Aura RGB lighting can be further enhanced with ASUS Aura Sync, which allows harmonized lighting effects with other Aura-enabled system components and external accessories. Aura software give you complete control of lighting across all compatible devices, letting you dial in the vibe you want to display quickly and easily.
EXTENDED COMPATIBILITY
ROG Ryujin is compatible with a wide range of Intel and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38cm of tubing to make mounting and routing easier.
CPU socket support
Intel LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD AM4, TR4*
*the mounting bracket is bundled with TR4 processor package
Main Features
- 1.77″ colour OLED for real-time system stats and personalized logos or animations
- Embedded microfan helps to cool VRM and M.2 area by up to 20°C
- Quality Noctua Industrial PPC PWM fans deliver high airflow and minimal noise
- ROG Vortex one-stop control center for lighting, OLED display, and cooling
- Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics
- Styled to complement ROG motherboards, at the center stage of your build
- Reinforced, sleeved tubing for increased durability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG Cooling |
| Model | ROG Ryujin 360 |
| Water Block | |
| Dimension | 100 x 100 x 70 mm |
| Material | Copper (CPU Plate) |
| CPU Socket Support | Intel: LGA 115x, 1366, 2011, 2011-3, 2066 |
| AMD: AM5, AM4, TR4* | |
| *The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN’s package | |
| Radiator | |
| Dimension | 394 x 121 x 27 mm |
| Material | Aluminium |
| Tubing | Sleeved Rubber Tube |
| Tube Length | 380 mm |
| Fan | |
| Included | 3x Noctua NF-F12 Industrial PPC 2000 PWM |
| Fan Dimensions | 120 x 120 x 25 mm |
| Speed | 450 to 2000 RPM /- 10% |
| Static Pressure | 3.94 mmH2O |
| Air Flow | 71.6 CFM |
| Noise | 29.7 dB(A) |
| Control Mode | PWM |
| General | |
| Special Features | 1.77″ Colour OLED for real-time system stats and personalised logos or animations. |
| Embedded microfan helps to cool VRM and M.2 area by up to 20°C | |
| Quality Noctua Industrial PPC PWM fans deliver high airflow and minimal noise | |
| LiveDash one-stop control center for lighting and OLED display | |
| Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics | |
| Styled to complement ROG motherboards, at the center stage of your build | |
| Reinforced, sleeved tubing for increased durability | |
| Compatibility | Intel: LGA 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 |
| AMD: AM5, AM4, TR4* | |
| *The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN’s package | |
| Package Contents | ROG RYUJIN 360 Liquid Cooler |
| Accesory Pack of Scews and brackets | |
| 3x 120mm Noctua NF-F12 iPPC 2000 PWM Fan | |
| Thermal compound (pre-applied) | |
| Quick Start Guide | |
| Note | *The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN’s package |
| ** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding | |
| *** Hardware monitor and fan control is optimized for ASUS motherboards | |
| **** for control radiator FAN from the Y-Cable and embedded fan on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
