ASUS ROG RYUO 120 RGB ALL-IN-ONE 120MM LIQUID CPU COOLER

Description

ASUS ROG Ryuo 120 RGB All-in-One 120mm Liquid CPU Cooler

90RC0010-M0UAY0

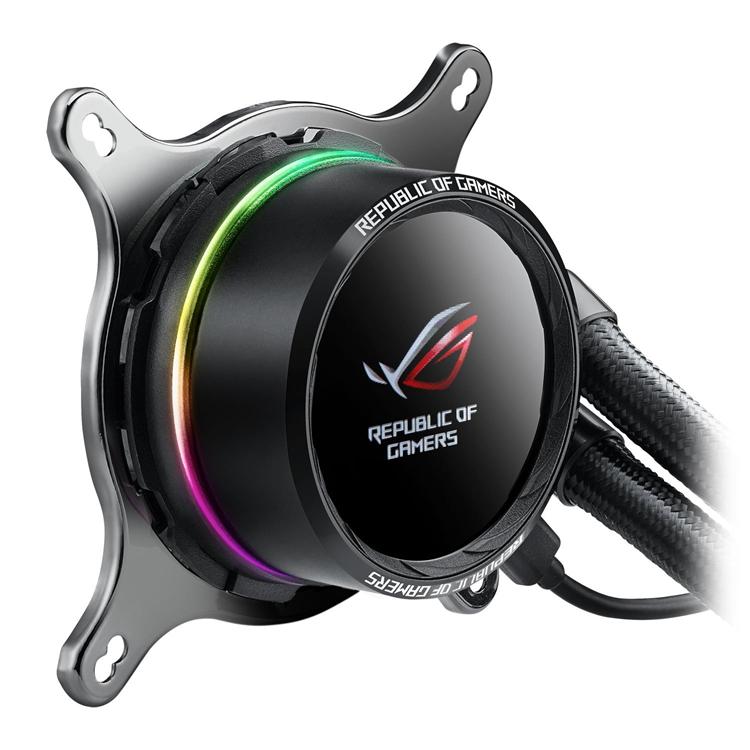

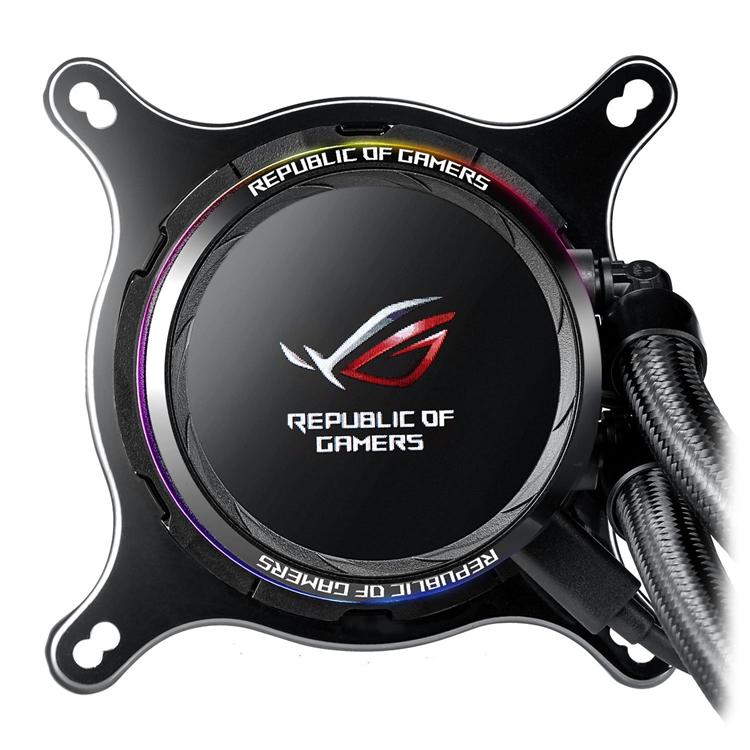

ROG Ryuo 120 all-in-one liquid CPU cooler with colour OLED, Aura Sync RGB, and dual ROG 120mm radiator fans

Features

• • 1.77” colour OLED for real-time system stats and personalized logos or animations

• • ROG-designed radiator fans for optimized airflow and static pressure

• • LiveDash one-stop control center for lighting and OLED display

• • Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics

• • Styled to complement ROG motherboards, at the center stage of your build

• • Reinforced, sleeved tubing for increased durability

ROG Ryuo is a series of high-performance CPU liquid coolers designed for compact and mid-sized gaming builds. As the first CPU coolers from ROG, the Ryuo series brings the performance, features and design details you expect from ROG to a vital part of your gaming system. Featuring an embedded 1.77-inch LiveDash color OLED display that enables monitoring of real-time system stats as well as displaying personalized image or animation, ROG Ryuo lets you ensure your system both runs and looks its best. Together with Aura Sync support for harmonized RGB lighting effects, ROG Ryuo coolers deliver stunning aesthetics along with game-changing performance.

NEXT LEVEL OF CUSTOMIZATION

LiveDash OLED
ROG Ryuo is the world’s first AIO cooler to feature an embedded 1.77-inch LiveDash color OLED that displays useful system information*, such as temperatures, voltages, fan speeds, or frequencies. You can also customize LiveDash to display a customized image or animation** highlighting your clan insignia or gamertag.
*Hardware monitoring feature is optimized for ASUS motherboards.
** Supports JPEG and GIF images sized 160 x 128 pixels

• • Hardware monitoring

• • Custom logo

Complete LiveDash customizability

The LiveDash software utility lets you easily customize ROG Ryuo’s LiveDash OLED display and RGB lighting effects. Select which system stats to monitor, choose personalized GIFs and images to display, and control RGB lighting from an intuitive interface that arranges settings in a step-by-step flow from top to bottom.

Subtle, striking, sleek

Infused with Aura RGB lighting, Ryuo adds a subtle glow that helps to highlight the CPU as the heart of any build. The lighting color and effects can be customized to match the OLED display and system colors for a unified look that’s totally your own.

PERFECT SYNCHRONIZATION

The impact of Aura RGB lighting can be further enhanced with ASUS Aura Sync, which allows harmonized lighting effects with other Aura-enabled system components and external accessories. Aura software provides complete control of lighting across all compatible devices, so you can dial in the vibe you want to display quickly and easily.
*Effects vary by model.

COOL TO THE CORE

Optimized fan design
The ROG radiator fan is specifically tuned to deliver optimum performance with Ryuo radiators, generating 81CFM/5.0mm H2O for superior cooling efficiency.
Improved pump design
ROG Ryuo is equipped with the latest cooling-plate design featuring micro-channels that provide more thermal dissipation area for processor heat. This innovative feature reduces thermal resistance for more efficient performance and cooler temps.
Four-pin PWM pump and fan control

With four-pin PWM control for both the pump and radiator fans, ROG Ryuo delivers precise speed control for the perfect balance of performance and acoustics in every scenario.

EXTENDED COMPATIBILITY

ROG Ryuo is compatible with a wide range of Intel and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38cm of tubing to make mounting and routing easier.
CPU socket support

• • Intel – LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066

• • AMD – AM4, TR4*

*the mounting bracket is bundled with TR4 processor package

Cooler Specifications
Edition	ROG RYUO 120
Cooler Form Factor	120mm All-In-One Hydro Cooler
Heatpipes	N/A
Cooler Features	1.77 ” Full Colour OLED Display Addressable Aura Sync RGB Lighting Aluminium Fins Copper Base ROG Vortex Control Center Sleeved Tubing
Socket Compatibility	1150 1151 1155 1156 1366 2011 2011-3 2066 AM4 TR4 (using bracket included with CPU)
Max. TDP

Fan Specifications
Included Fan Configuration	1 x 120mm
Fan Edition	ROG RYUO Fan Model 12
PWM Fan	Yes
Fan Bearing Type
Fan Colour	Black
LED Lighting	Addressable RGB Water Block/Pump w/ OLED Display
Fan/Pump Connectors	1 x 4-pin 1 x USB
Max. Fan Speed	2500 rpm
Max. Fan Airflow	80.95 CFM
Max. Air Pressure	5.0 mm H²O
Max. Sound Level	37 dBA

Materials
Cooler Materials	Aluminium / Copper
Included TIM (Thermal Interface Material)	Included (Pre-Applied)

Dimensions & Weight
Heatsink/Radiator Dimensions	122 x 150 x 27 mm (WxHxD)
Total Dimensions
Weight
