Description
Model90MB1BB0-M0EAY0

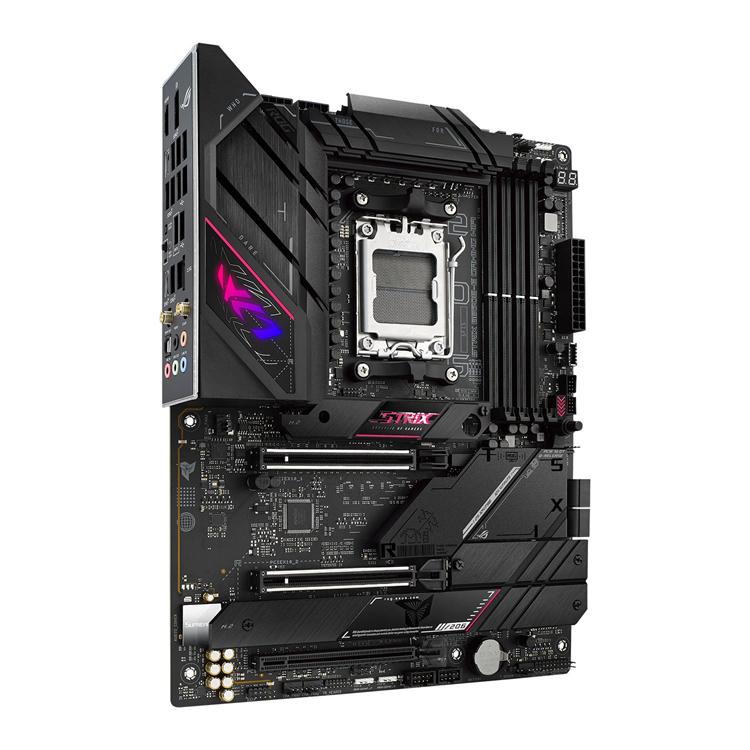

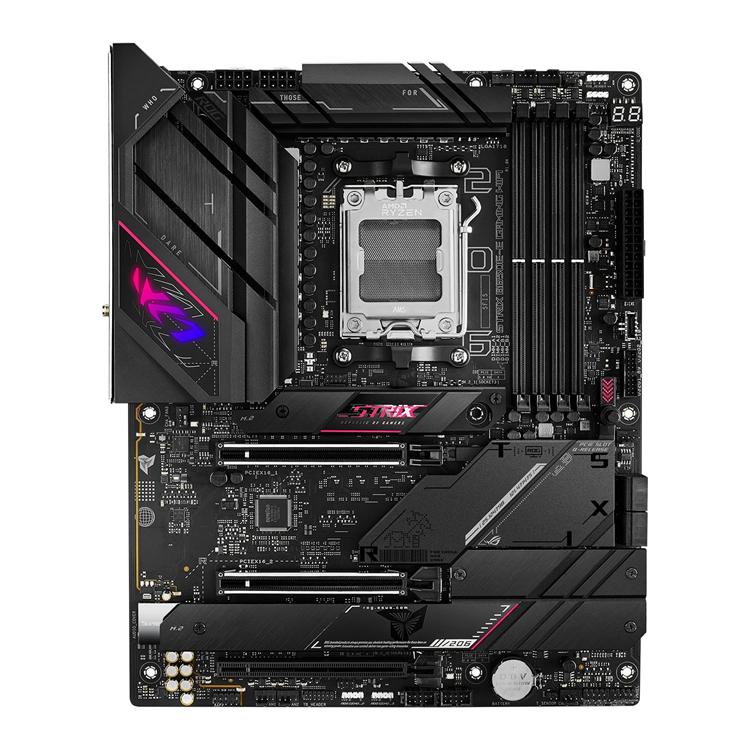

ASUS Introduces the ROG STRIX B650E-E GAMING WIFI Motherboard
-
- Supports AMD Ryzen™ 7000 Series Desktop Processors
-
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
-
- AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors
-
- Robust Power Solution: 16 + 2 teamed power stages with dual ProCool power connectors, high-quality ally chokes and durable capacitors to support multi-core processors
-
- Optimized VRM Thermals: Massive heatsinks with strategically cut airflow channels and bonded to the power stages with high conductivity thermal pads
-
- Next-Gen M.2 Support: Two PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots all covered with heatsinks to maximize performance
-
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-C® port and front-panel connector, eleven additional USB ports, two PCIe 5.0 x16 SafeSlots, HDMI® 2.1, and DisplayPort™ 1.4®
-
- High-Performance Networking: On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
-
- Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
-
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
-
- DIY Friendly Design: PCIe Slot Q-release, M.2 Q-Latch, Pre-mounted I/O shield and BIOS FlashBack™ button, and Clear CMOS button
-
- Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate to manage all ASUS devices from one place, and bundled 60-day AIDA64 Extreme trial subscription
Features
The ASUS ROG STRIX B650E-E GAMING WIFI motherboard Is Built For Gamers!
Pursue optimal in-game experience with boosted power delivery and an optimized cooling design to maximize the demand for Ryzen 7000 series processors. Along with the latest Wi-Fi 6E, DDR5 Memory, and PCI Express® 5.0 for superfast data transfer, memory, and storage performance, ROG STRIX B650E-E GAMING WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.
Compatibility
Processor Support:
This Motherboard supports AMD® AM5 Processors.
Operating System Support:
Requires Windows® 11 / 10, 64-bit
Specifications
| Make and Model | Asus ROG STRIX B650E-E GAMING WIFI Motherboard |
|---|---|
| Part Number | ROG STRIX B650E-E GAMING WIFI |
| Operating System | Supports Windows® 11 / 10, 64-bit |
| Chipset | AMD B650 Chipset |
| CPU Support | Supports AMD Ryzen™ 7000 Series Desktop Processors For Socket AM5 |
| Memory | 4x DDR5 DIMM RAM Sockets, up to 128 GB (4x 32GB) of non-ECC, un-buffered RAM Support for Stock Clocked DDR5 RAM: DDR-5200 / 5000 / 4800 Support for Overclocked DDR5 RAM: 6400+ / 6200 / 6000 / 5800 / 5600 / 5400Supports Dual Channel Memory Architecture Supports AMD EXPO RAM Overclocking OptiMem II |
| Expansion Slots | 3x PCI-E x16 slots: 2x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) 1x PCIe 4.0 x16 slot* (supports x4 mode) When the PCIe 4.0 x16 slot is occupied with a SSD device, the first PCIe 5.0 x16 slot (PCIEX16_1) will run as x8 only. |
| Multiple GPU Mode | Supports 2-Way AMD Crossfire™ in PCIe v5.0 x8/x4 mode |
| Onboard Graphics | 1x HDMI v2.1 port, up to 4K UHD @ 60Hz 1x DisplayPort v1.4 port, up to 8K UHD @ 60Hz |
| Storage | 4x M.2 Connector Slots: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) RAID 0, RAID 1 and RAID 10 support for M.2 Storage Devices 4x SATA 6Gb/s connectors RAID not supported by SATA Storage Devices |
| USB | Rear USB Ports: 1x USB 3.2 Gen2x2 (20Gbps) Type-C port 1x USB 3.2 Gen2 (10Gbps) Type-C port 6x USB 3.2 Gen2 (10Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports Front USB Ports: 1x USB 3.2 Gen2 Header supports 1x USB Gen2 (10Gbps) Type-C port 1x USB 3.2 Gen1 header supports 2x USB 3.2 (5Gbps) Type-A Gen 1 ports 2x USB 2.0 headers support 4x USB 2.0 (480Mbps) Type-A ports |
| LAN | Intel® LAN Chipset: 1x RJ45 2.5Gbe LAN port |
| Wireless Communication | Wi-Fi 6E Wireless Chipset: IEEE 802.11 a/b/g/n/ac/ax TriBand (2.4 / 5 / 6GHz) |
| Bluetooth | Wi-Fi 6E Wireless Chipset: Bluetooth v5.2 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback5x Rear 3.5mm Audio jacks 1x S/PDIF Audio portAudio Features: – Audio Shielding – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |

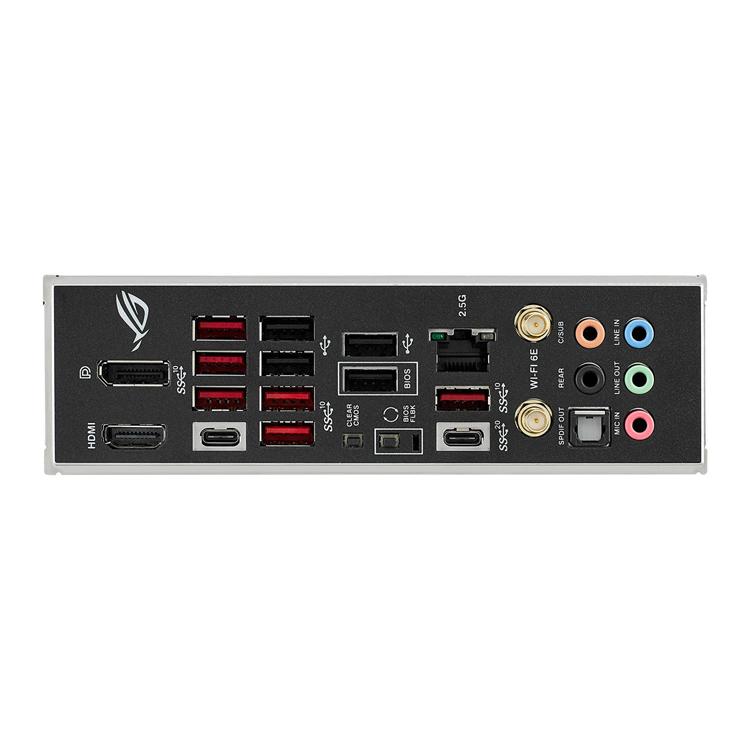

| Back Panel I/O | 1x USB 3.2 Gen2x2 (20Gbps) Type-C port 1x USB 3.2 Gen2 (10Gbps) Type-C port 6x USB 3.2 Gen2 (10Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports 1x DisplayPort 1x HDMI® port2x Antenna jacks 1x RJ45 2.5Gb Ethernet port5x 3.5mm Audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button |
| Internal I/O Connectors | 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 5x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 2x 8-pin +12V Power connector4x M.2 slots (Key M) 4x SATA 6Gb/s ports 1x USB 3.2 Gen2 Header supports 1x USB Gen2 (10Gbps) Type-C port 1x USB 3.2 Gen1 header supports 2x USB 3.2 (5Gbps) Type-A Gen 1 ports 2x USB 2.0 headers support 4x USB 2.0 (480Mbps) Type-A ports 1x Thunderbolt™ header3x Addressable Gen 2 headers 1x AURA RGB header 1x CPU Over Voltage jumper 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thermal Sensor header |
| BIOS | 256 Mb Flash ROM UEFI AMI BIOS WOL by PME, PXE |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | 305 x 244mm |
| Weight | N/A |
