Part number90MB18K0-M0EAY0

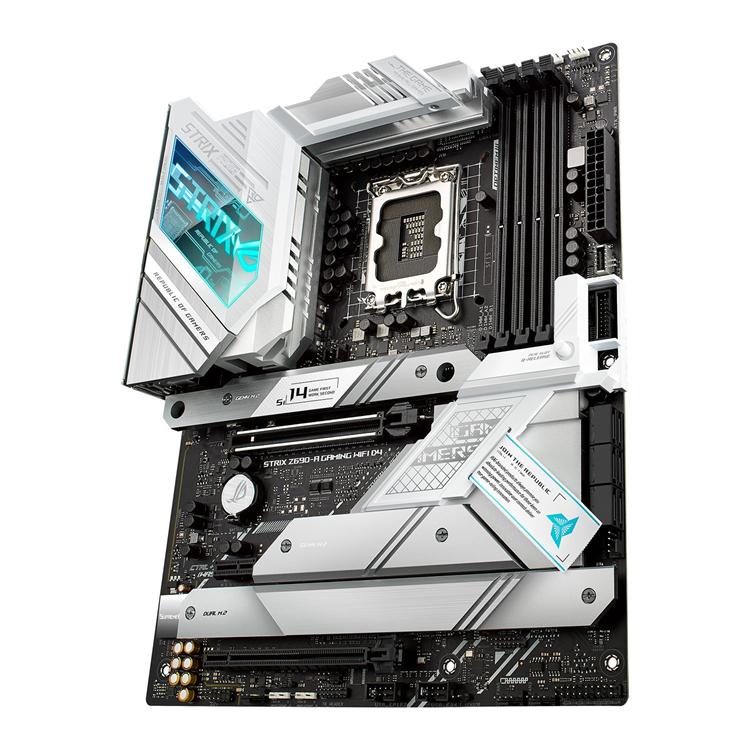

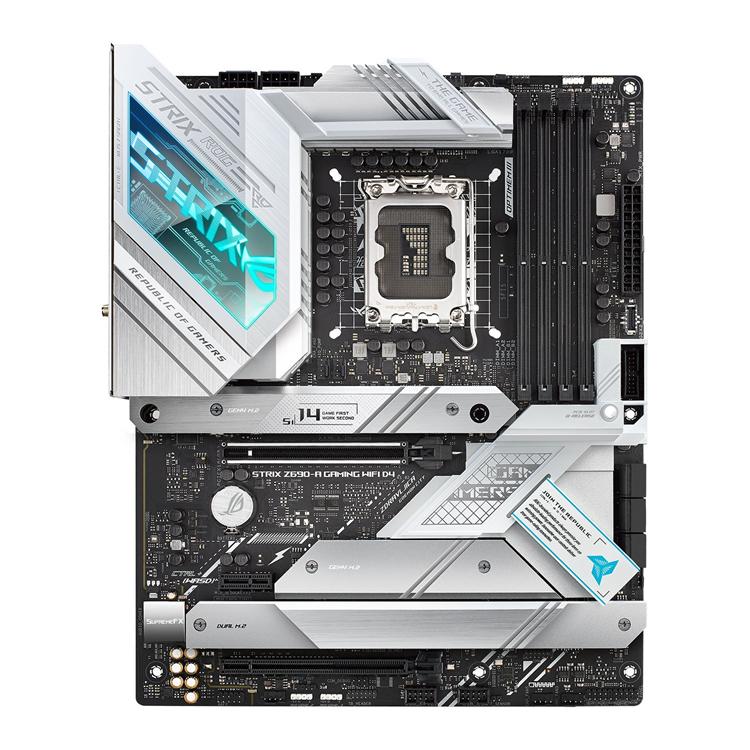

ASUS ROG Strix Z690-A Gaming WiFi D4 LGA 1700 (Intel® 12th Gen) ATX Gaming Motherboard (PCIe 5.0, DDR4, 16+1 Power Stages, Wi-Fi 6, Intel® 2.5 Gb LAN, Bluetooth v5.2, Thunderbolt™ 4, 4xM.2/NVMe SSD and Front Panel USB 3.2 Gen 2×2 Type-C™ Connector)
The ASUS ROG Strix Z690-A Gaming WiFi D4 white and silver scheme motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 12th Generation Intel® Core™ processors. Along with Wi-Fi 6 and PCI Express® 5.0 for superfast transfer speeds and storage, ROG Strix Z690-A Gaming WiFi D4 is ready to take the helm of your clean and neat white gaming gear.
Features
-
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® Core™ processors, support PCIe 5.0 and DDR4 and out of box Windows® 11 ready
-
- AI Motherboard: AI Overclocking, AI cooling, AI networking(GameFirst VI) and AI noise cancellation
-
- Robust Power Solution: 16+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
-
- Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
-
- High-performance Gaming Networking: On-board Wi-Fi 6 and Intel® 2.5 Gb Ethernet with ASUS LANGuard
-
- Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, and featuring quad M.2 and USB 3.2 Gen 2×2 Type-C & Type-A and Front panel USB 3.2 Gen 2×2 Type-C™ connectors
-
- PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, Pre-mount I/O shield, BIOS FlashBack™, Clr CMOS button, Q-Code and FlexKey (Reset, Aura on/off, Direct key)
-
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-
- New ROG Strix Aesthetics: New ID design, Illuminated Acrylic Display, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Compatibility
Intel® Processor Support:
This ASUS Motherboard supports 12th Gen Intel® Core™ Processors for Socket LGA-1700.
Operating System Support:
Windows® 11
Specifications
| Make and Model | ASUS ROG STRIX Z690-A GAMING WIFI D4 ATX Motherboard |
|---|---|
| CPU Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Integrated Graphics | Requires compatible Intel® Processor w/ Integrated Graphics: 1 x HDMI port 1 x DisplayPort * Graphics specifications may vary between CPU types. |
| Storage | Total supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors: 1 x M.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 12th Core™ processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset: |
| Expansion Slots | Intel® 12th Gen Processors: 1 x PCIe 5.0/4.0/3.0 x16 slot* Intel® Z690 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in Chapter 1. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. |
| Multi-GPU Support | N/A |
| USB Ports | Rear USB Port (Total 10) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x Audio USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB Port (Total 4) |
| LAN | Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless | Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.2 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features: – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear audio USB Type-C port – Premium audio capacitors – Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

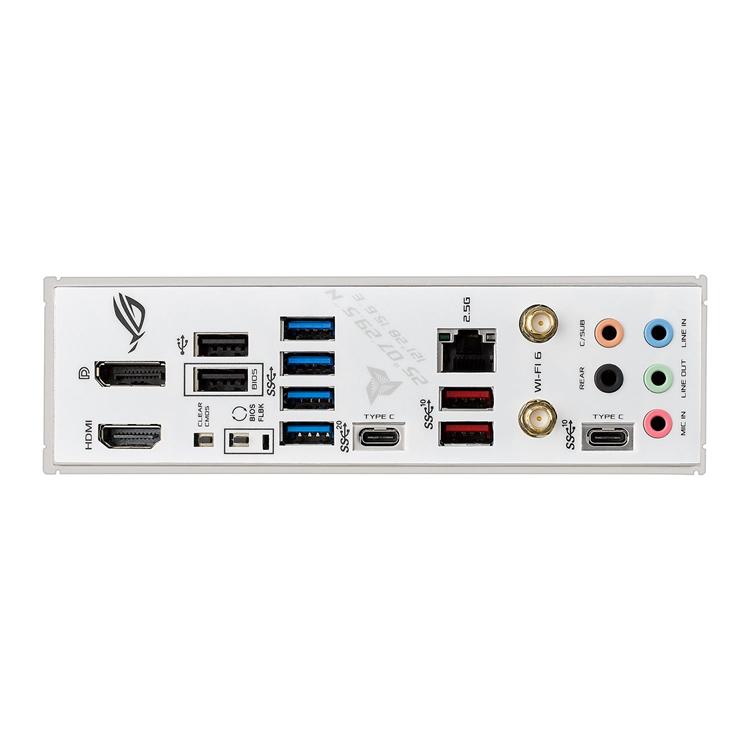

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Audio USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| ASUS Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers ASUS HYDRANODE – 1 x 12-1 pin Front Panel Audio header (AAFP) – 1 x Chassis fan support* (CHA_FAN1P) * Visit ASUS Website for the latest compatibility list. |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11, 64 bit, Windows® 10, 64 bit |
| Form Factor | ATX Form Factor: 30.5 x 24.4 cm (12″ x 9.6″) |
Package Contents
-
- ASUS ROG STRIX Z690-A GAMING WIFI D4 ATX Motherboard
-
- 4 x SATA 6Gb/s Cable(s)
-
- 1 x ASUS Wi-Fi Moving Antennas
-
- 1 x Cable Ties Pack
-
- 1 x M.2 Rubber Package
-
- 1 x M.2 Q-Latch Package
-
- 1 x ROG Key Chain
-
- 1 x ROG Strix Stickers
-
- 1 x ROG Strix Thank You Card
-
- Support DVD
-
- User Manual
