Description

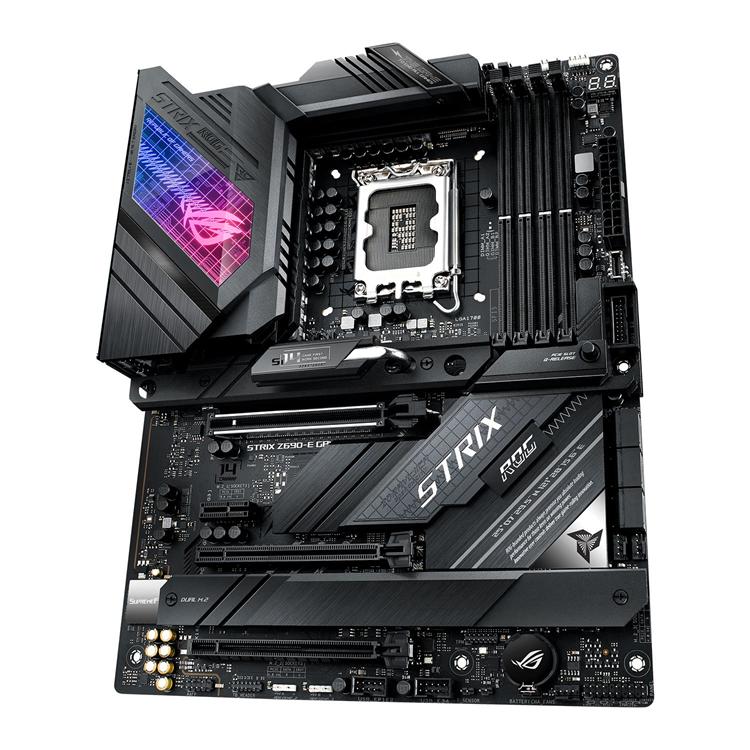

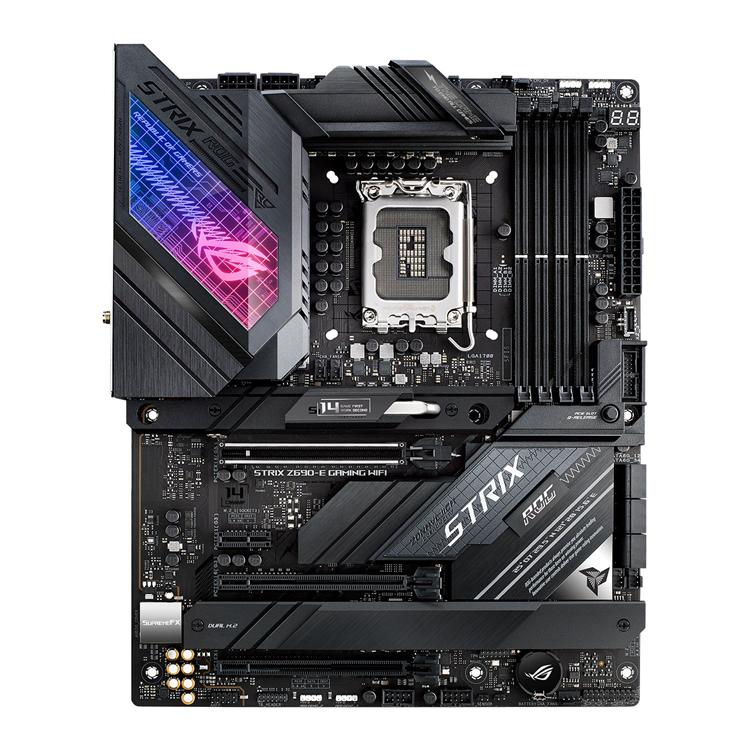

ASUS ROG Strix Z690-E Gaming WiFi 6E LGA 1700 (Intel® 12th Gen) ATX Gaming Motherboard (PCIe 5.0, DDR5, 18+1 Power Stages, 2.5 Gb LAN, Bluetooth v5.2, Thunderbolt™ 4, Support up to 5xM.2, 1xPCIe 5.0 M.2, Bundled ROG Hyper M.2 Card and Front Panel USB 3.2 Gen 2×2 Type-C™ Connector)
The ASUS ROG Strix Z690-E WiFi 6E Gaming motherboard is designed with 18+1 power stages and optimized cooling to cope with the demands of powerful 12th Gen Intel® Core™ processors. Along with the latest Wi-Fi 6E, DDR5 Memory and PCI Express 5.0 for superfast data transfer, memory and storage performance, ROG Strix Z690-E Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.
All-Round Performance
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.
Leading Connectivity
ROG Strix Z690-E Gaming WiFi delivers wickedly fast connectivity, supersmooth online experiences and ultrafast data transfers, including onboard PCIe 5.0 M.2 support and a ROG Hyper M.2 Card for potentially huge storage capacity. Add alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
Features
-
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® Core™ processors, support PCIe 5.0, DDR5 and out of box Windows® 11 ready
-
- AI Motherboard: AI Overclocking, AI cooling, AI networking(GameFirst VI) and AI noise cancellation
-
- Robust Power Solution: 18+1 90A power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
-
- Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, double-sided M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
-
- High-performance Gaming Networking: On-board Wi-Fi 6E and Intel® 2.5 Gb Ethernet with ASUS LANGuard
-
- Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, and support up to 5xM.2 slots, 1x PCIe 5.0 M.2, bundled with ROG Hyper M.2 card and USB 3.2 Gen 2×2 Type-C & Type-A and Front panel USB 3.2 Gen 2×2 Type-C™ connectors
-
- PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, Pre-mount I/O shield, BIOS FlashBack™, Clr CMOS button, Q-Code and FlexKey (Reset, Aura on/off, Direct key)
-
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-
- New ROG Strix Aesthetics: New ID design, Illuminated Acrylic Display, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Compatibility
Intel® Processor Support:
This ASUS Motherboard supports 12th Gen Intel® Core™ Processors for Socket LGA-1700.
Operating System Support:
Windows® 11
Specifications
| Make and Model | ASUS ROG STRIX Z690-E GAMING WIFI ATX Motherboard |
|---|---|
| CPU Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Integrated Graphics | Requires compatible Intel® Processor w/ Integrated Graphics: 1 x HDMI port 1 x DisplayPort * Graphics specifications may vary between CPU types. |
| Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors: 1 x M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) – Intel® 12th Gen processors support PCIe 5.0 x4 mode. 1 x M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110*** – Intel® 12th Gen processors support PCIe 4.0 x4 modeIntel® Z690 Chipset: 1 x M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes) Hyper M.2_1 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**** Hyper M.2_2 slot (Key M) via Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**** 6 x SATA 6Gb/s port(s) * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** When ROG Hyper M.2 card is installed on PCIEX16(G5), only Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G3), only Hyper M.2_1 slot can support PCIe 3.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. **** When ROG Hyper M.2 card is installed on PCIEX16(G5) or PCIEX16(G3), Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. ***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. |
| Expansion Slots | Intel® 12th Gen Processors: 1 x PCIe 5.0 x16 slot**Intel® Z690 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD) 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in Chapter 1 of user guide. |
| Multi-GPU Support | N/A |
| USB Ports | Rear USB Port (Total 12) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB Port (Total 7) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN | Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* |
| Bluetooth | Bluetooth v5.2 hardware ready* * Wi-Fi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows® 11 or later. ** Bluetooth v5.2 function will be ready in Windows® 11 or later. |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features: – SupremeFX Shielding Technology – ALC4080 + Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |

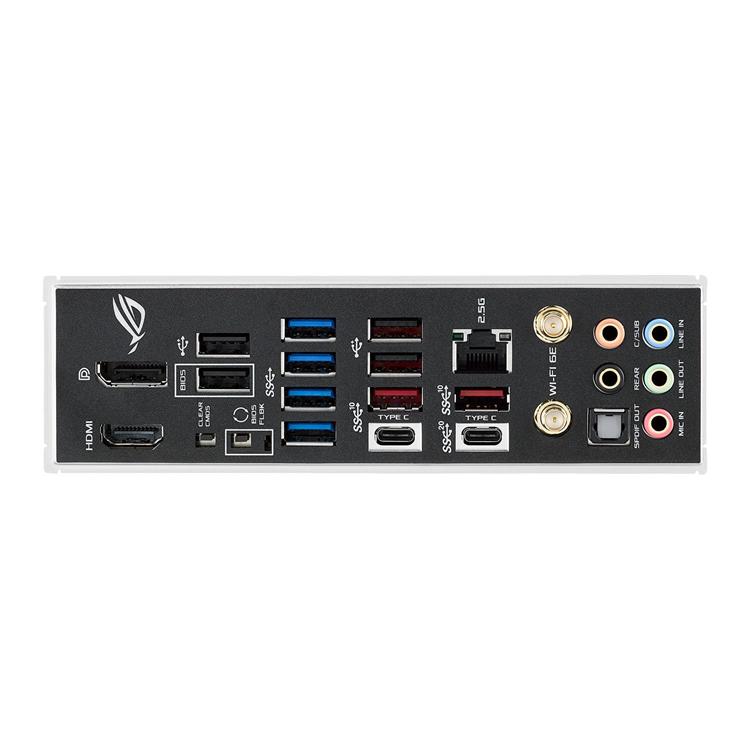

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| ASUS Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers ASUS HYDRANODE – 1 x Chassis fan support* (CHA_FAN1P) * Visit ASUS Website for the latest compatibility list. TPM header |
| Software Features | ROG Exclusive Software – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound – Anti-virus software ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation AI Suite 3 – 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11, 64 bit, Windows® 10, 64 bit |
| Form Factor | ATX Form Factor: 30.5 x 24.4 cm (12″ x 9.6″) |
Package Contents
-
- ASUS ROG STRIX Z690-E GAMING WIFI ATX Motherboard
-
- 4 x SATA 6Gb/s Cable(s)
-
- 1 x ROG Hyper M.2 Card
-
- 1 x ASUS 2×2 Dual-Band Wi-Fi Moving Antennas
-
- 1 x M.2 Q-Latch Package
-
- 1 x M.2 Q-Latch Package for M.2 Backplate
-
- 1 x M.2 Rubber Packages
-
- 2 x M.2 Screw Packages
-
- 1 x ROG Graphics Card Holder
-
- 1 x ROG Key Chain
-
- 1 x Cable Tie
-
- Support DVD
-
- User Manual
