Description
Part number90MB1IC0-M0EAY0

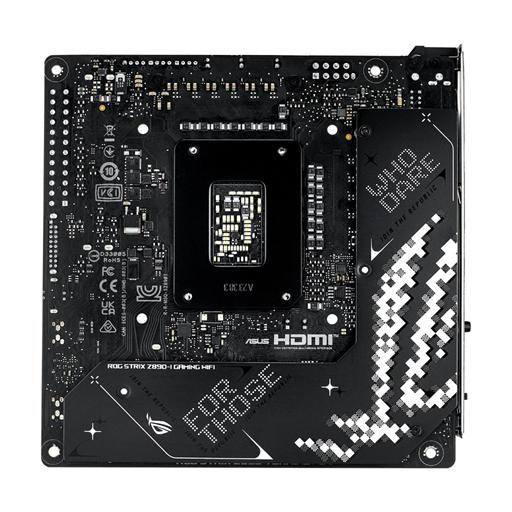

ASUS ROG STRIX Z890-I GAMING WIFI
- Support for Intel Core Ultra Arrow Lake-S processors on socket LGA 1851
- Support for DDR5 8800+ MHz memory (OC)
- 2 x M.2 PCIe 5.0 slots
- PCI-Express 5.0 16x port
- 2 Thunderbolt 4 (USB-C) 40 Gbps Display Port compatible ports
- 2.5 GbE LAN
- Wi-Fi 7 / Bluetooth 5.4
- Advanced PC AI compatible: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intelligent Control : Proprietary ASUS software, Overclocking, AI Cooling II and AI Networking II to simplify setup and improve performance
- Optimised thermal design: massive heat sinks with integrated I/O cover, high conductivity thermal pads.
- Latest-generation M.2 support: 2 on-board PCIe 5.0 M.2 slots
- Extended connectivity: Two Thunderbolt 4 (USB-C) ports, USB 20 Gbit/s Type-C rear I/O port and PCIe 5.0 x16 SafeSlot with full support for next-generation graphics cards.
- High-performance networking: on-board WiFi 7 (802.11be) with Intel 2.5 Gbps Ethernet
- Immersive audio : ROG High Definition Audio Codec ALC4580 DAC ESS SABRE9260Q via the ROG STRIX Hive II
- Incomparable personalisation: Exclusive ASUS Aura Sync lighting, with three addressable connectors
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | ROG STRIX |
| Model | ROG STRIX Z890-I GAMING WIFI (90MB1IC0-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(Series 2) |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z890 Chipset |
| Memory | 2 x DIMM slots, max. 96GB, DDR5 |
| Support up to 8800+MT/s (OC), ECC and Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* | |
| Dual channel memory architecture | |
| DIMM Fit | |
| Supports Intel Extreme Memory Profile (XMP) memory module | |
| Supports DIMM Flex | |
| ASUS Enhanced Memory Profile III (AEMP III) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x HDMI port** |
| 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. | |
| **** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| Expansion Slots | Intel Core Ultra Processors(Series 2)* |
| 1 x PCIe 5.0 x16 slot*** (supports x16 mode) | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors(Series 2)* | |
| M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| 2 x SATA 6Gb/s ports**** | |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1. | |
| ** M.2_2 slot shares bandwidth with PCIEX16(G5). When M.2_2 slot is occupied with SSD device, PCIEX16(G5) will run x8 only. | |
| *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports. | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. | |
| Bluetooth v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. | |
| For Windows 10, only Wi-Fi 6 is supported. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. | |
| USB | Rear USB (Total 9 ports) |
| 2 x Thunderbolt 4 (2 x USB Type-C) | |
| 1 x USB 20Gbps port (1 x USB Type-C) | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 1 x USB 5Gbps port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 3 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| ROG STRIX HIVE II (Total 2 ports) | |
| 2 x USB 10Gbps ports ( 1 x USB Type-C+ 1 x Type-A) | |
| ROG FPS Card (Total 3 ports) | |
| 2 x USB 2.0 header(s) additional 3 USB 2.0 ports | |
| USB Type-C power delivery output: max. 5V/3A | |
| Audio | ROG High Definition Audio CODEC ALC4050 |
| – Supports: Jack-detection | |
| – High quality 121 dB SNR stereo playback output and 94 dB SNR recording input | |
| – Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| – ROG Hyper-Grounding Technology | |
| – ESS SABRE9260Q DAC | |
| – Premium audio capacitors | |
| *** All audio functions on ROG STRIX Z890-I GAMING WIFI are supported through the ROG STRIX HIVE II. | |

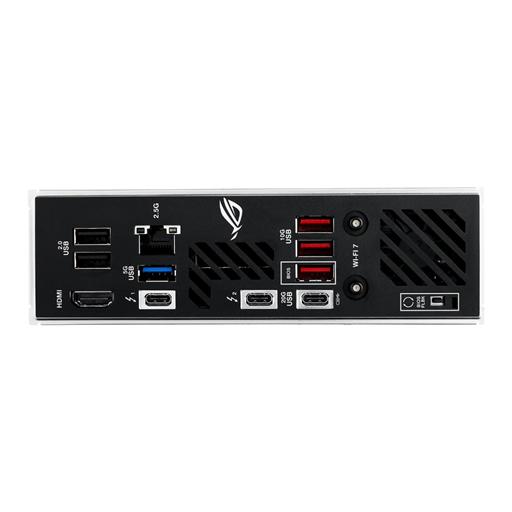

| Back Panel I/O Ports | 2 x Thunderbolt 4 (2 x USB Type-C) |
| 1 x USB 20Gbps port (1 x USB Type-C) | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 1 x USB 5Gbps port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 1 x BIOS FlashBack button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin AIO Pump header | |
| 1 x 4-pin Chassis Fan header | |
| 1 x Extra Flow Fan header | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 2 x M.2 slots (Key M) | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| Miscellaneous | |
| 2 x Addressable Gen 2 headers | |
| 1 x 2-pin Power Button header | |
| 1 x Thermal Sensor header | |
| 2 x USB Type-C connectors to install ROG FPS card | |
| ROG FPS card | |
| 2 x SATA 6Gb/s ports | |
| 1 x CPU Over Voltage jumper | |
| 1 x Clear CMOS header | |
| 1 x Front Panel header | |
| 1 x Alteration PCIe Mode switch | |
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | |
| Special Features | Extreme Engine Digi+ |
| – 5K Black metallic capacitors | |
| ASUS Q-Design | |
| – M.2 Q-Release Duo | |
| – PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| – Q-Antenna | |
| – Q-Dashboard | |
| – Q-DIMM | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – M.2 heatsink backplate | |
| – M.2 heatsink | |
| – VRM heatsink design | |
| – Fan bracket | |
| ASUS EZ DIY | |
| – BIOS FlashBack button | |
| – BIOS FlashBack LED | |
| – CPU Socket lever protector | |
| – ProCool II | |
| – Pre-mounted I/O shield | |
| – SafeSlot | |
| – SafeDIMM | |
| – Backplate | |
| Aura Sync | |
| – Addressable Gen 2 headers | |
| ROG STRIX HIVE II | |
| 1 x USB Type-C connects to motherboard | |
| 2 x USB 10Gbps ports ( 1 x USB Type-C+ 1 x Type-A) | |
| 1 x Headphone jack with mic in | |
| 1 x FlexKey button | |
| 1 x Power button | |
| 1 x Volume control knob with mute button | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 later) |
| Form Factor | Mini-ITX Form Factor |
| 6.7 inch x 6.7 inch (17 cm x 17 cm) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
