Description

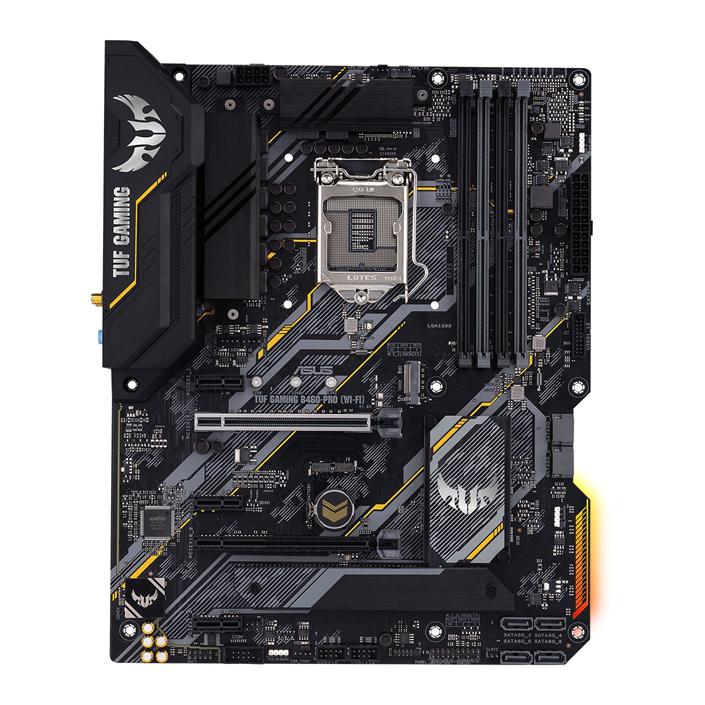

Introducing the all-new TUF Gaming B460-PRO (Wi-Fi) TUF Gaming B460-PRO (WiFi) distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
Intel B460 Chipset
LGA 1200 CPU Socket
ATX Form Factor
Built to Take the Strain
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel® CPUs, plus support for faster memory and storage, TUF Gaming B460-PRO (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.
TUF CAPACITORS
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.
DIGI+VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
Cooler by Design
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
THERMAL PAD
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
M.2 HEATSINK
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Lightning Fast Storage with Dual M.2
Dual M.2 slots support data-transfer speeds of up to 32 Gbps on the x4 PCI Express® 3.0 bandwidth, making it perfect for OS or application drives for quicker boot-up and app load times.
Get the Most from your Memory with Optimem
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
The Future of Home-Networking
The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it’s optimised for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
INTEL ETHERNET
Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Little Things Make a Big Difference
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
DRAM OVERCURRENT PROTECTION
On-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
STAINLESS-STEEL BACK I/O
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
LANGUARDTUF LAN
Guard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Outshine the Competition with ASUS Aura Sync
YOUR MOTHERBOARD, YOUR WAY
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
| SPECIFICATIONS | |
| Brand | Asus |
| Series | Socket 1200 Motherboards |
| Model | TUF GAMING B460-PRO (WI-FI) |
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 *1 | |
| Chipset | Intel B460 |
| Memory | 4x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-Buffered Memory *2 |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem | |
| Graphics | Integrated Graphics Processor |
| 1x DisplayPort 1.4 *3 | |
| 1x HDMI 1.4b | |
| (Graphics specifications may vary between CPU types.) | |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | Intel 10th Gen Processors: |
| 1x PCIe 3.0 x16 (x16 Mode) | |
| Intel B460 Chipset: | |
| 1x PCIe 3.0 x16 (x4 Mode) *4 | |
| 3x PCIe 3.0 x1 *4 | |
| Storage | Total Supports 2x M.2 Slots and 6x SATA 6Gb/s Ports |
| Intel B460 Chipset: | |
| 1x M.2 Socket 3, with M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) *5 | |
| 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 Storage Devices Support (PCIE 3.0 x 4 Mode) | |
| 6x SATA 6Gb/s Ports | |
| Support Raid 0, 1, 5, 10 | |
| Intel Rapid Storage Technology Supports | |
| Intel Optane Memory Ready *6 | |
| LAN | Intel I219-V 1Gb Ethernet |
| Wireless Data Network | Intel Wi-Fi 6 AX200 |
| 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Support 1024QAM/OFDMA/MU-MIMO | |
| Supports Up to 2.4Gbps Max Data Rate | |
| Supports Dual Band Frequency 2.4/5 GHz | |
| Supports Channel Bandwidth: HT20/HT40/HT80/HT160 | |
| Supports PCIe Interface | |
| Bluetooth | Bluetooth v5.1 *7 |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC *8 |
| Supports: Jack-Detection, Multi-Recording, Front Panel Jack-Retasking, Up to 24-Bit/192kHz Playback | |
| Audio Feature: | |
| Exclusive DTS Custom for GAMING Headsets | |
| Audio Cover | |
| Audio Shielding | |
| Dedicated Audio PCB Layers | |
| Premium Japanese Audio Capacitors | |
| USB Ports | Rear USB Ports (Total 6): |
| 2x USB 3.2 Gen 2 Ports (2x Type-A) | |
| 4x USB 3.2 Gen 1 Ports (4x Type-A) | |
| Front USB Ports (Total 6): | |
| 2x USB 3.2 Gen 1 Ports | |
| 4x USB 2.0 Ports | |

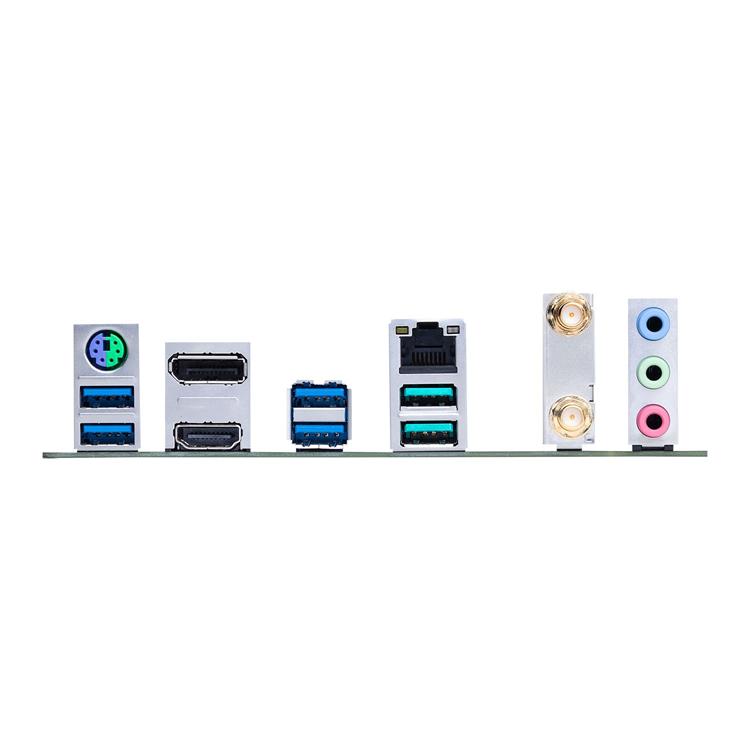

| Back I/O Ports | 1x PS/2 Keyboard/Mouse Combo Port |
| 1x DisplayPort | |
| 1x HDMI | |
| 1x LAN (RJ45) Port | |
| 2x USB 3.2 Gen 2 Type-A | |
| 4x USB 3.2 Gen 1 Type-A | |
| 3x Audio Jacks | |
| 1x ASUS Wi-Fi Module | |
| Internal I/O Ports | 1x CPU Fan Connector |
| 1x CPU OPT Fan Connector | |
| 2x Chassis Fan Connectors | |
| 1x AIO_PUMP Connector | |
| 2x Aura RGB Strip Headers | |
| 1x Addressable Gen 2 Header | |
| 1x USB 3.2 Gen 1 (Up to 5Gbps) Connector Supports Additional 2x USB 3.2 Gen 1 Port | |
| 2x USB 2.0 Connectors Supports Additional 4x USB 2.0 Ports | |
| 1x M.2 Socket 3 with M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode) | |
| 1x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 Storage Devices Support (PCIE 3.0 x 4 Mode) | |
| 6x SATA 6Gb/s Connectors | |
| 1x 24-pin EATX Power Connector | |
| 1x 8-pin EATX 12V Power Connectors | |
| 1x Front Panel Audio Connector (AAFP) | |
| 1x Clear CMOS Jumper | |
| 1x System Panel Connector | |
| 1x COM Port Header | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System Support | Windows 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch (30.5 cm x 24.4 cm) | |
| Package Content | User’s Manual |
| I/O Shield | |
| 2x SATA 6Gb/s Cables | |
| 1x Supporting DVD | |
| 1x TUF Gaming Sticker | |
| 1x TUF Certification Card | |
| 1x Wi-Fi Moving Antenna | |
| 1x M.2 SSD Screw Package | |
| 1x M.2 Rubber Package | |
| Notes | *1 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| *2 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| *3 Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. | |
| *4 By default, the PCIe x16_2 slot is set to run in x4 mode and shares bandwidth with the PCIe x1_1, PCIe x1_2 or PCIe x3 slot. When a PCIe device is detected in any of the PCIe x1 slots, the PCIe x16_2 slot will run in x1 mode. | |
| *5 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. | |
| *6 Only the M.2_2 socket can support Intel Optane Memory Ready. | |
| *7 BT 5.1 function will be ready in Windows 10 build 19041 or later. | |
| *8 Choose the chassis with HD audio module in front panel to support 8-channel audio output. | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
