Description
Part number90MB19U0-M0EAY0
Durable, Stable, Reliable

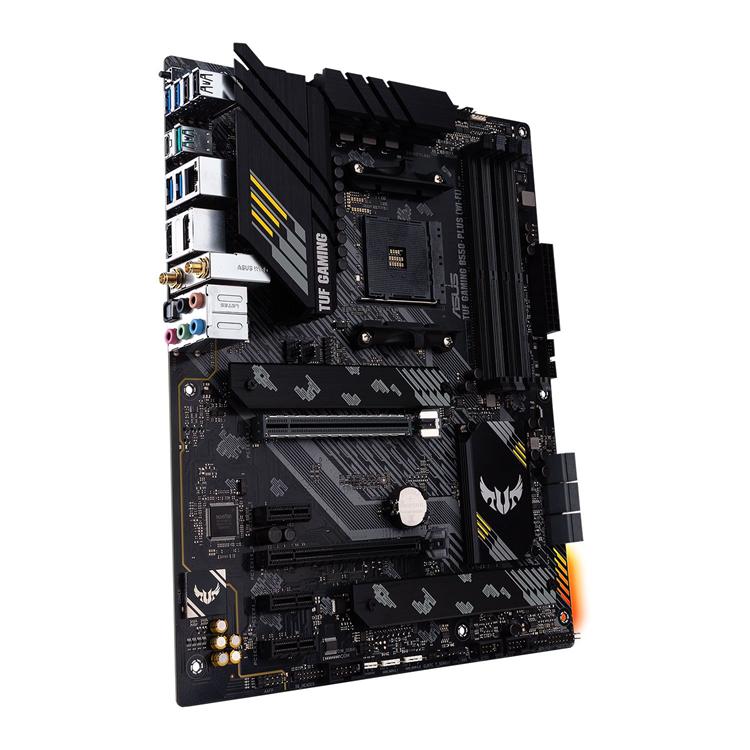

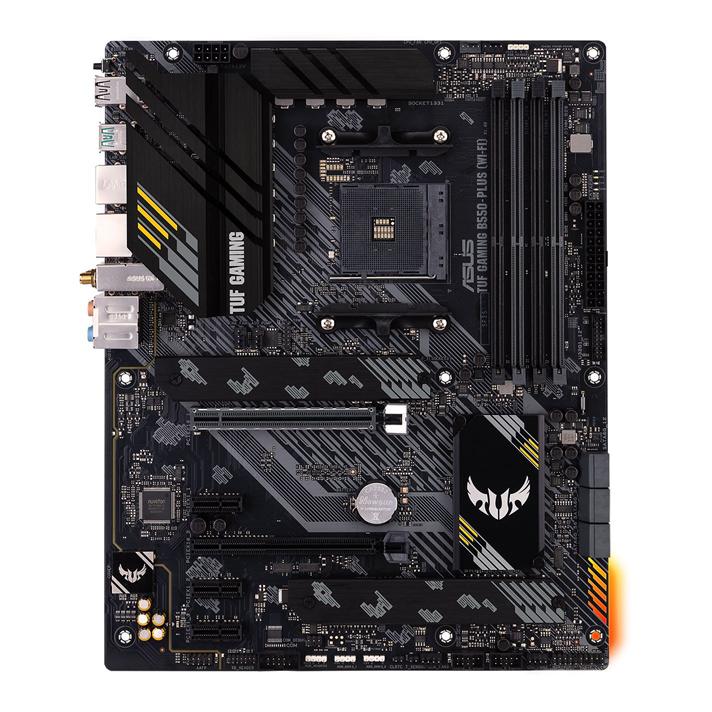

TUF Gaming B550-Plus (Wi-Fi) distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
Rock Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.
DRMOS
The onboard VRM of TUF Gaming B550-Plus (Wi-Fi) utilises 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.
Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
ProCool Sockets
Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
TUF Components
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
TUF CAPACITORS
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.
Digi+ VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Easy PC
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF Protection
SafeSlot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.
TUF LANguard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
DRAM Overvoltage Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-steel back I/O panel
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
AI Noise Cancelling Microphone
Outshine The Competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
Features
• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
• Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
• Made for online gaming: Intel Wi-Fi 6, 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• AI noise-canceling microphone: provides crystal-clear in-game voice communication
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | TUF GAMING |
| Model | TUF GAMING B550-PLUS WIFI II |
| CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | B550 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Graphics | 1x DisplayPort 1.2 |
| 1x HDMITM 2.1(4K@60HZ) | |
| Expansion Slots | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors | |
| 1 x PCIe 3.0 x16 slot (supports x16 mode) | |
| AMD B550 Chipset | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode)* | |
| 3 x PCIe 3.0 x1 slot* | |
| *PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. | |
| **Support PCIe bifurcation for RAID on CPU function. | |
| Storage | Supports 2 X M.2 Slots And 6 X Sata 6gb/S Ports |
| Amd Ryzen 5000 Series/ 3000 Series Desktop Processors : | |
| M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports Pcie 4.0 X4 & Sata Modes) | |
| Amd Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors | |
| M.2_1 Slot (Key M), Type 2242/2260/2280/22110 (Supports Pcie 3.0 X4 & Sata Modes) | |
| Amd B550 Chipset | |
| M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports Pcie 3.0 X4 & Sata Modes)* | |
| 6 X Sata 6gb/S Ports | |
| Support Raid 0, 1, 10 | |
| *M2_2 Shares Bandwidth With Sata6g_56. When M.2_2 Is Populated, Sata6g_56 Will Be Disabled. | |
| Wireless & Bluetooth | 2×2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) Bt5.2 |
| 2×2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) | |
| Supports 2.4/5ghz Frequency Band | |
| Bluetooth V5.2* | |
| *Bluetooth V5.2 Function Will Be Ready In Windows 11 Or Later. | |
| USB | Rear USB:Total 8 Ports |
| 2 X USB 3.2 Gen 2 Ports (1 X Type-A 1 X USB Type-C) | |
| 4 X USB 3.2 Gen 1 Ports (4 X Type-A) | |
| 2 X USB 2.0 Ports (2 X Type-A) | |
| Front USB:Total 6 Ports | |
| 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports | |
| 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio Codec* |
| – Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking | |
| – Supports Up To 24-Bit/192 Khz Playback” | |
| Audio Features | |
| – Audio Shielding | |
| – Rear Optical S/Pdif Out Port | |
| – Premium Japanese Audio Capacitors | |
| – Dedicated Audio Pcb Layers | |
| – Audio Cover | |

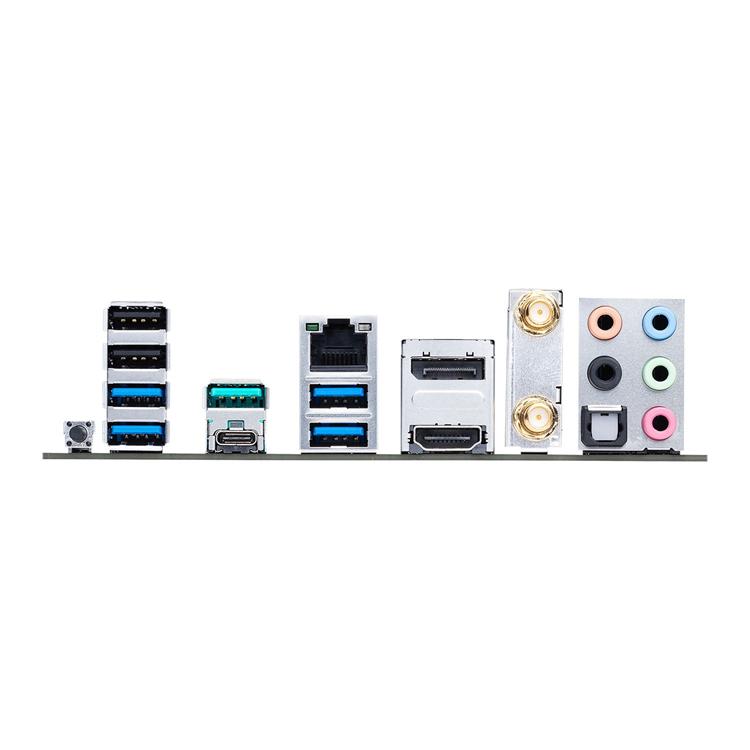

| Back Panel I/O Ports | 2x USB 3.2 Gen 2 Ports (1 X Type-A 1 X USB Type-C) |
| 4x USB 3.2 Gen 1 Ports (4 X Type-A) | |
| 2x USB 2.0 Ports (2 X Type-A) | |
| 1x Displayport | |
| 1x Hdmi Port | |
| 1x Asus Wi-Fi Module | |
| 1x Realtek 2.5gb Ethernet Port | |
| 5x Audio Jacks | |
| 1x Optical S/Pdif Out Port | |
| 1x Bios Flashback Button | |
| Internal I/O Connectors | Fan And Cooling Related |
| 1 X 4-Pin Cpu Fan Header(S) | |
| 1 X 4-Pin Cpu Opt Fan Header(S) | |
| 1 X 4-Pin Aio Pump Header(S) | |
| 3 X 4-Pin Chassis Fan Header(S) | |
| Power Related | |
| 1 X 24-Pin Main Power Connector | |
| 1 X 8-Pin 12v Power Connector | |
| Storage Related | |
| 2 X M.2 Slots (Key M) | |
| 6 X Sata 6gb/S Ports | |
| USB | |
| 1 X USB 3.2 Gen 1 Header(S) Support(S) Additional 2 USB 3.2 Gen 1 Ports | |
| 2 X USB 2.0 Header(S) Support(S) Additional 4 USB 2.0 Ports | |
| Miscellaneous | |
| 2 X Aura Addressable Gen 2 Header(S) | |
| 2 X Aura Rgb Header(S) | |
| 1 X Clear Cmos Header | |
| 1 X Com Port Header | |
| 1 X Front Panel Audio Header (Aafp) | |
| 1 X Spi Tpm Header (14-1pin) | |
| 1 X 20-3 Pin System Panel Header | |
| 1 X Thermal Sensor Header | |
| 1 X Thunderbolt Header | |
| Special Features | Asus Tuf Protection |
| – Asus Digi Vrm (Digital Power Design With Dr. Mos) | |
| – Asus Enhanced Dram Overcurrent Protection | |
| – Asus Esd Guards | |
| – Tuf Languard | |
| – Asus Overvoltage Protection | |
| – Asus Safeslot | |
| – Asus Stainless-Steel Back I/O | |
| Asus Q-Design | |
| – Asus Q-Dimm | |
| – Asus Q-Led (Cpu [Red], Dram [Yellow], Vga [White], Boot Device [Yellow Green]) | |
| – Asus Q-Slot | |
| Asus Thermal Solution | |
| – Aluminum M.2 Heatsink | |
| Asus Ez Diy | |
| – Bios Flashback Button | |
| – Bios Flashback Led | |
| – Procool | |
| Aura Sync | |
| – Aura Rgb Header(S) | |
| – Addressable Gen 2 Rgb Header(S) | |
| Software Features | Asus Exclusive Software |
| Armoury Crate | |
| – Aura Sync | |
| – Two-Way Ai Noise Cancelation | |
| Ai Suite 3 | |
| – Performance And Power Saving Utility | |
| Turbov Evo | |
| Epu | |
| Digi Vrm | |
| Fan Xpert 4 | |
| Pc Cleaner | |
| – Ez Update | |
| – System Information | |
| Aura Creator | |
| Tuf Gaming Cpu-Z | |
| Dts Custom For Gaming Headsets | |
| Norton Anti-Virus Software (Free Trial For 60 Days) | |
| Winrar | |
| Uefi Bios | |
| Asus Ez Diy | |
| – Asus Crashfree Bios 3 | |
| – Asus Ez Flash 3 | |
| – Asus Uefi Bios Ez Mode | |
| BIOS | 256 Mb Flash ROM |
| UEFI AMI BIOS | |
| Form Factor | ATX |
| 305mm x 24.4mm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
