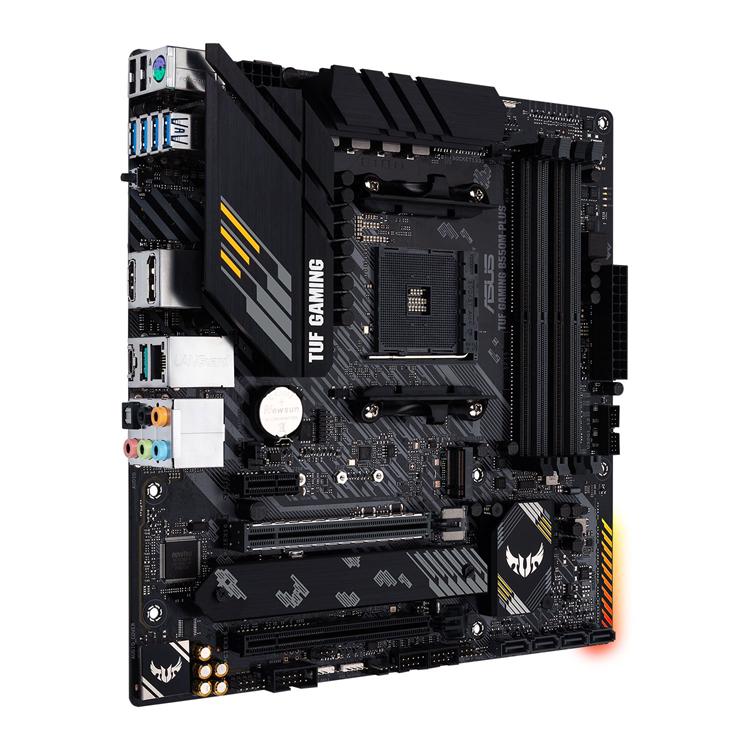

ASUS TUF GAMING B550M-PLUS (WI-FI) MOTHERBOARD

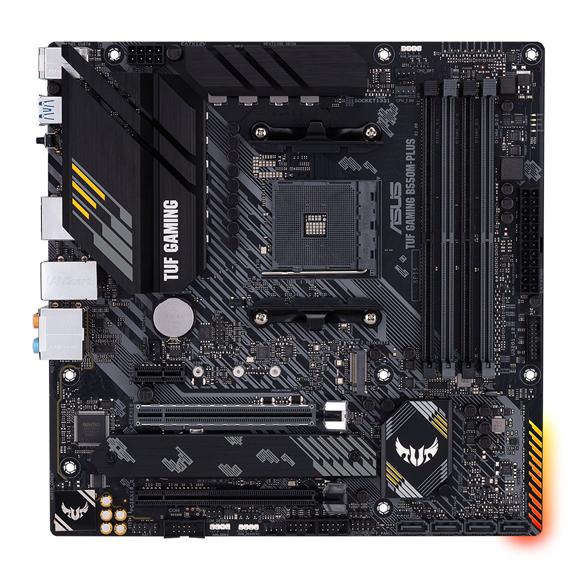

ASUS TUF GAMING B550M-PLUS (WI-FI) MOTHERBOARD - Image 2
ASUS TUF GAMING B550M-PLUS (WI-FI) MOTHERBOARD - Image 3
ASUS TUF GAMING B550M-PLUS (WI-FI) MOTHERBOARD - Image 4

ASUS TUF GAMING B550M-PLUS (WI-FI) MOTHERBOARD

R3440.00 Incl. Vat

KEY FEATURES:

– AMD Socket AM4

– AMD B550 Chipset

– 4x DDR4 Slots – up to 128GB

– 4x SATA 6Gb/s | 2x M.2 Slot

– 1 x DisplayPort | 1 x HDMI Port

– Micro-ATX Form Factor

– AMD Crossfire

Out of stock

SKU: ASUS TUF GAMING B550M-PLUS (WIFI) Categories: , , , , Tags: , , , ,

Description

TUF GAMING B550M-PLUS (Wi-Fi) 3rd Generation Ryzen ATX Motherboard from ASUS

Durable. Stable. Reliable.
Introducing the all-new TUF GAMING B550M-PLUS Wi-Fi from ASUS, perfect for those who want solid performance in a smaller form factor. This motherboard supports 3rd generation AMD Ryzen processors and is ready to give you an unprecedented lightning fast speeds with support for PCI-E 4.0 technology. The B550M-PLUS Wi-Fi distils the essential elements of the latest AMD platform to give you game ready features and proven durability. Engineered from military grade components with a new upgraded power solution and cooling options this outstanding AM4 motherboard will deliver rock-solid performance with unwavering gaming stability for everyone. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case, including the support for ASUS Aura Sync lighting to bring additional colours and lighting effects to your system allowing you to flex your creativity and personality with the B550M-PLUS Wi-Fi as a solid foundation.

Core Specifications
Edition TUF GAMING B500M-PLUS (WI-FI)
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
    • DDR4 – 2133
    • DDR4 – 2400
    • DDR4 – 2666
    • DDR4 – 2800
    • DDR4 – 3000
    • DDR4 – 3200
    • DDR4 – 3466(OC)
    • DDR4 – 3600(OC)
    • DDR4 – 3866(OC)
    • DDR4 – 4000(OC)
    • DDR4 – 4400(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
    • DisplayPort 1.2
    • HDMI 2.1
Internal Connectivity
Expansion Slots
    • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
    • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
    • 1 x PCIe 3.0 x1
    • 1 x PCIe 3.0 x16
    • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
    • RAID 0
    • RAID 1
    • RAID 10
Internal I/O
    • 1 x 24-pin (Power)
    • 2 x 4-pin CHA_FAN connector
    • 1 x 4-pin CPU Fan Connector
    • 1 x 4-pin CPU OPT Fan Connector
    • 1 x 8-pin (Power)
    • 1 x Aura Addressable Gen2 Header
    • 2 x Aura RGB Strip Headers
    • 1 x Clear CMOS Header
    • 1 x Front Panel Audio Header
    • 4 x SATA III – 6Gb/s
    • 1 x Serial (COM) Header
    • 1 x speaker header
    • 1 x System panel connector
    • 1 x TPM (SPI_TPM) header
    • 2 x USB 2.0 Header
    • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
    • 802.11ax WiFi LAN
    • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
    • 1 x Intel Wi-Fi 6 AX200 (ax WiFi, BT5)
    • 1 x Realtek (2.5GbE LAN)

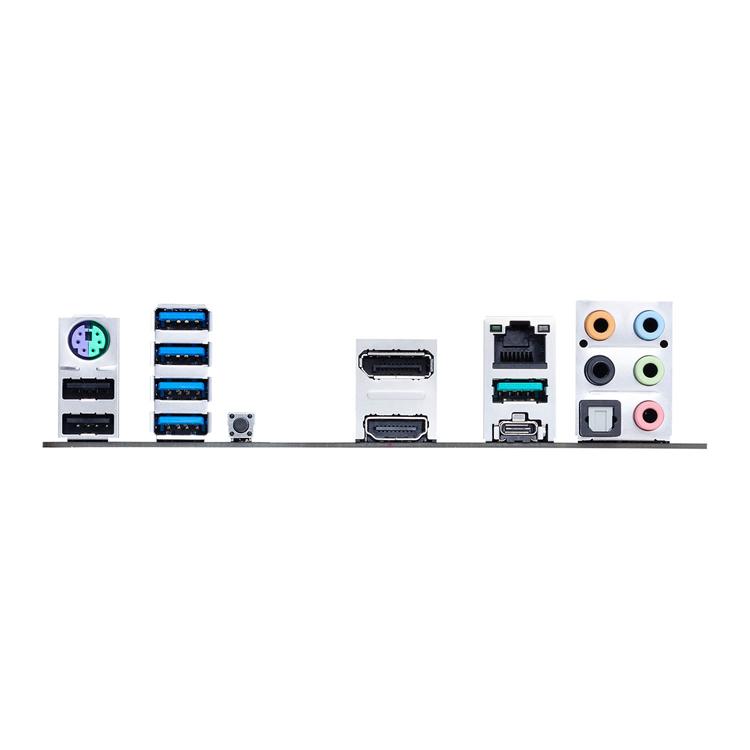

Rear I/O Connectors
    • 1 x 10/100/1000/2500 (LAN)
    • 1 x BIOS Flashback Button
    • 1 x Center/Subwoofer Speaker Out
    • 1 x DisplayPort
    • 1 x HDMI
    • 1 x Line In
    • 1 x Line Out
    • 1 x Mic-In
    • 1 x PS/2 Keyboard/Mouse Combo
    • 1 x Rear Speaker Out
    • 1 x S/PDIF-Out (Optical)
    • 2 x USB 2.0
    • 4 x USB 3.2 Gen1 Type-A
    • 1 x USB 3.2 Gen2 Type-A
    • 1 x USB 3.2 Gen2 Type-C
    • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling  Passive Heatsinks
QPI Speed  N/A
Board Dimensions  244 x 244 mm
Note

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
