ASUS TUF GAMING B560M-PLUS Intel B560 PCIe 4.0 mATX Motherboard

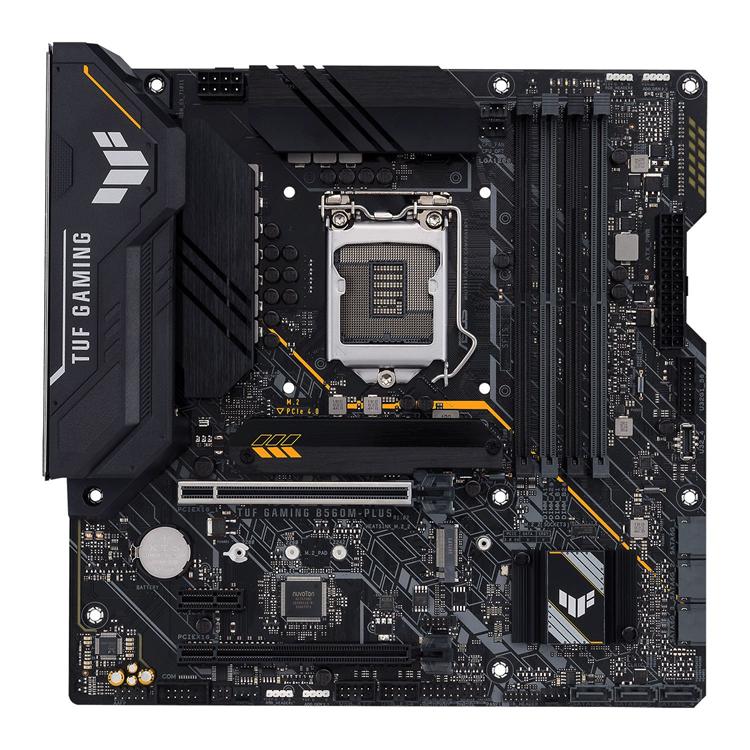

ASUS TUF GAMING B560M-PLUS Intel B560 PCIe 4.0 mATX Motherboard - Image 2

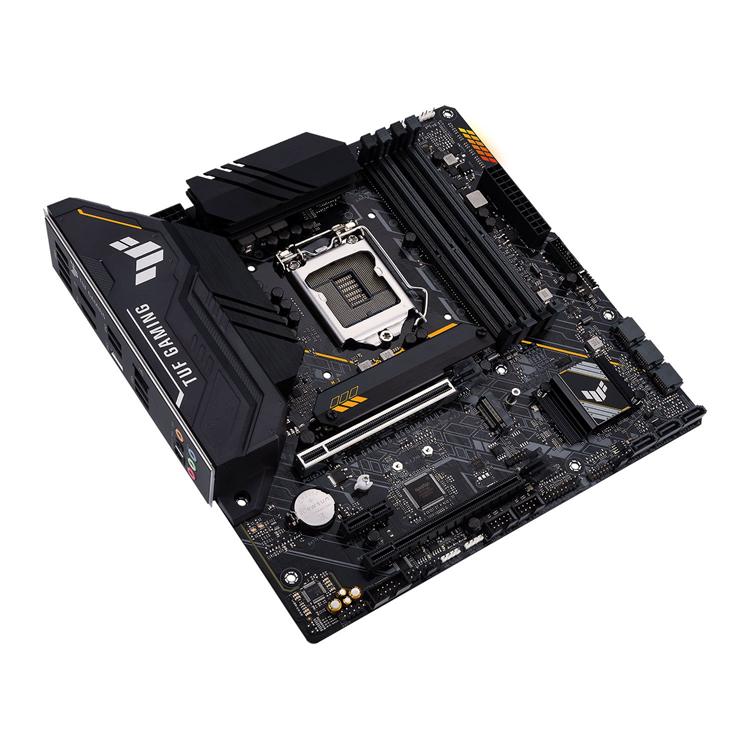

ASUS TUF GAMING B560M-PLUS Intel B560 PCIe 4.0 mATX Motherboard - Image 3
ASUS TUF GAMING B560M-PLUS Intel B560 PCIe 4.0 mATX Motherboard - Image 4

ASUS TUF GAMING B560M-PLUS Intel B560 PCIe 4.0 mATX Motherboard

R2789.00 Incl. Vat

KEY FEATURES:

– Intel Socket 1200

– Intel B560 Chipset

– 4x DDR4 Slots – up to 128GB

– 6x SATA 6Gb/s | 2x M.2 Slot

– 1 x DisplayPort | 1 x HDMI Port

– Micro-ATX Form Factor

Out of stock

SKU: ASUS TUF GAMING B560M-PLUS Categories: , , , , Tags: , , , , , ,

Description

Part number90MB1780-M0EAY0

DURABLE, STABLE AND RELIABLE MOTHERBOARD
ASUS TUF GAMING B560M-PLUS comes in a Micro-ATX size and takes all the essential elements of the latest 10th and 11th gen Intel® Core™ Intel® 1200 socket processors. It also combines the Intel processors with game-ready features and proven durability with support for DDR4 memory. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Intel B560 Chipset

LGA 1200 CPU Socket

ATX Form Factor

Built to Take the Strain

TUF CAPACITORS
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.

DIGI+VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.

POWER DELIVERY ENHANCEMENTS
With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING B560 series motherboards are the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF GAMING B560 series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand. A multiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard also uses ProCool connectors that are built to tight specifications to ensure flush contact with PSU power lines. This results in lower impedance and helps to prevent hotspots and connector failure.

Cooler by Design

1. LARGER VRM HEATSINK
A larger, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

THERMAL PAD
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

2. M.2 HEATSINK
B560M-PLUS has a flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Is your Windows Genuine?Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

Comprehensive Fan Controls

MULTIPLE TEMPERATURE SOURCES
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI. ​

Excellent Memory and Storage Capabilities

PCIE 4.0 M.2 (UP TO 64 GBPS)
TUF GAMING B560 series motherboards feature PCIe 4.0 M.2. The M.2_1 supports PCIe 4.0 and the M.2_2 support PCIe 3.0.

DRAM OVERCLOCKING PERFORMANCE
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Little Things Make a Big Difference

TRUSTWORTHY STABILITY AND COMPATIBILITY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

DRAM OVERCURRENT PROTECTION
On-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

STAINLESS-STEEL BACK I/O
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

LANGUARD
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Outshine the Competition with ASUS Aura Sync

YOUR MOTHERBOARD, YOUR WAY

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware. The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

Specifications

Core Specifications
Edition TUF GAMING B560M-PLUS
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
    • DDR4 – 2133
    • DDR4 – 2400
    • DDR4 – 2666
    • DDR4 – 2800
    • DDR4 – 2933
    • DDR4 – 3200
    • DDR4 – 3333(OC)
    • DDR4 – 3466(OC)
    • DDR4 – 3600(OC)
    • DDR4 – 3733(OC)
    • DDR4 – 4000(OC)
    • DDR4 – 4266(OC)
    • DDR4 – 4400(OC)
    • DDR4 – 4600(OC)
    • DDR4 – 4800(OC)
    • DDR4 – 5000(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
    • DisplayPort 1.4
    • HDMI 2.0
Internal Connectivity
Expansion Slots
    • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
    • 1 x M.2, 22-42/60/80, PCIe Gen4x4
    • 1 x PCIe 3.0 x1
    • 1 x PCIe 3.0 x16
    • 1 x PCIe 4.0 x16
    • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
    • 1 x 24-pin (Power)
    • 2 x 4-pin CHA_FAN connector
    • 1 x 4-pin CPU Fan Connector
    • 1 x 4-pin CPU OPT Fan Connector
    • 1 x 8-pin (Power)
    • 2 x Aura Addressable Gen2 Header
    • 2 x Aura RGB Strip Headers
    • 1 x Clear CMOS Headern
    • 1 x Front Panel Audio Header
    • 2 x M.2
    • 6 x SATA III – 6Gb/s
    • 1 x Serial (COM) Header
    • 1 x System Panel Connector with Chassis Intrusion
    • 1 x Thunderbolt header
    • 2 x USB 2.0 Header
    • 1 x USB 3.2 Gen1 Header
    • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)

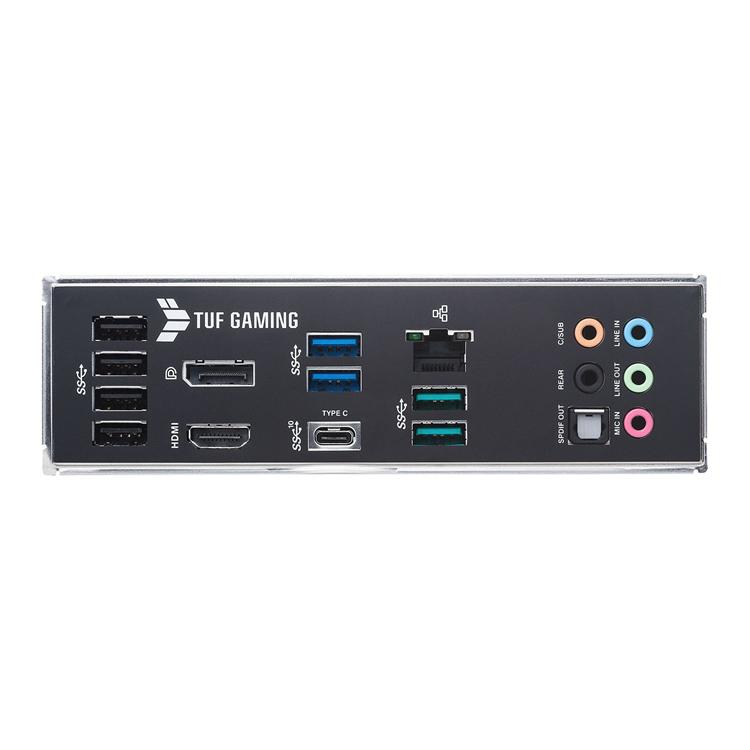

Rear I/O Connectors
    • 1 x Central Speaker Out
    • 1 x DisplayPort
    • 1 x HDMI
    • 1 x Line In
    • 1 x Line Out
    • 1 x Mic-In
    • 1 x Rear Speaker Out
    • 1 x RJ-45
    • 1 x S/PDIF-Out (Optical)
    • 4 x USB 2.0
    • 2 x USB 3.2 Gen1 Type-A
    • 1 x USB 3.2 Gen1 Type-C
    • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor
