R5073.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Micro-ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 4x DDR5 DIMM Slots, Supports Up To 256GB
– Supports Up to DDR5-8800 CU-DIMM (OC)
– Supports Intel XMP 3.0 Memory Modules
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x4 Physical)
– 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
– 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 10Gbps Type-C Port
– 1x USB 20Gbps Type-C Port with DisplayPort
– 2x USB 10Gbps Type-A Port
– 4x USB 5Gbps Type-A Ports
– 1x USB 2.0 Type-A Port
– 1x HDMI 2.1 (TMDS), 1x DisplayPort 1.4 Port
– 5x 3.5mm Audio Jacks Support Surround Sound
– 2x WiFi Antenna Jacks
– 1x Optical S/PDIF Audio Port
– Intel 2.5 Gigabit Ethernet RJ-45 LAN
– Realtek High Definition Audio CODEC
– 12+1+2+1 Digi+VRM Solution
– Supports Windows 11 64-Bit
– 3 Year Warranty

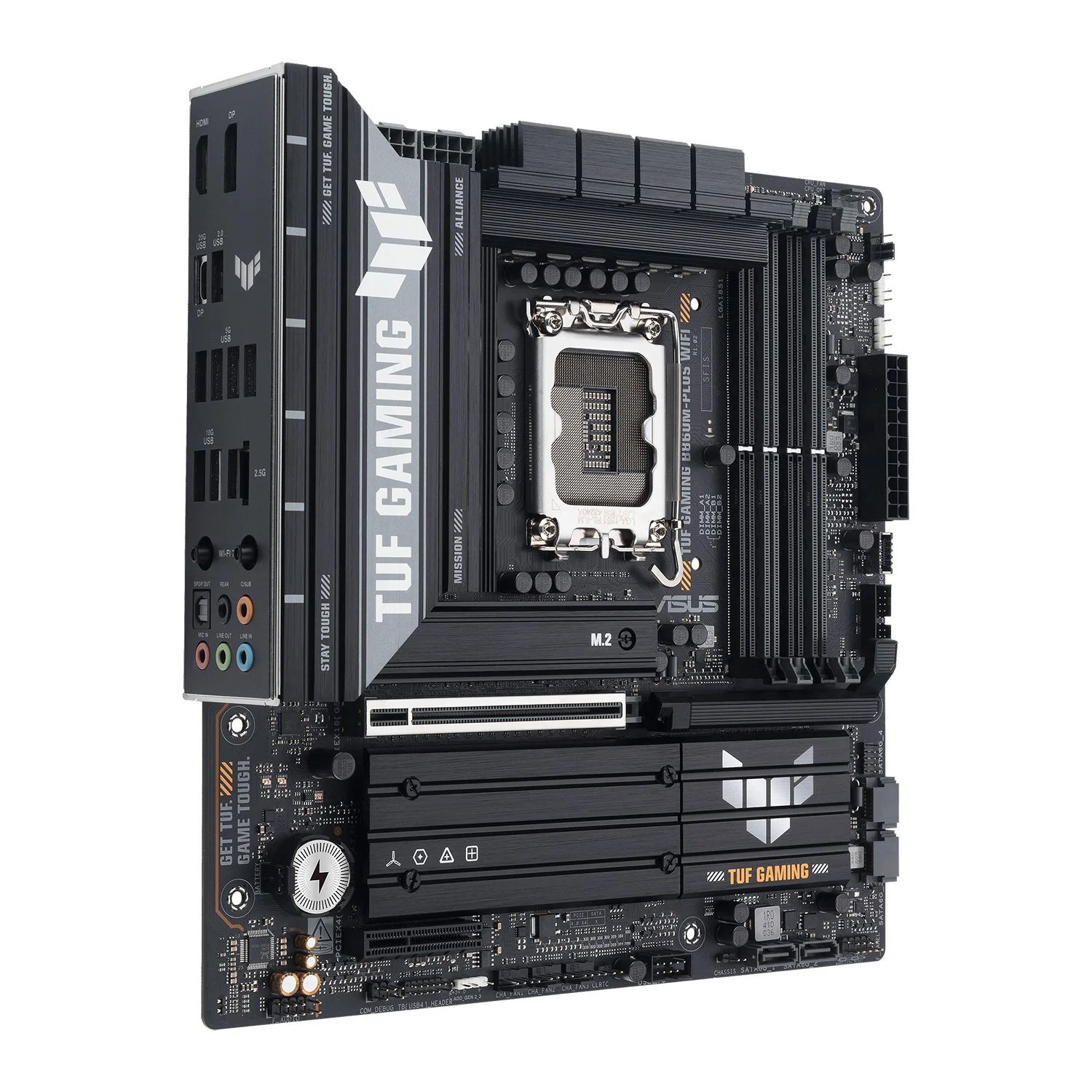

ASUS TUF GAMING B860M-PLUS WIFI is equipped with outstanding features, including 12+1+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 x16 SafeSlot with Q-Release, three M.2 slots including one supports PCIe 5.0, Wi-Fi 7, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, USB 20Gbps Type-C®, USB 10Gbps Type-C®, Addressable RGB, Aura Sync, M.2 Q-Latch, Q-Antenna
ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Intel® Processor Support:
This ASUS Motherboard supports Intel® Core™ Ultra Processors (Series 2) Processors for Socket LGA 1851.
Operating System Support:
Requires Windows® 11 64-bit
| Make and Model | Asus TUF GAMING B860M-PLUS WIFI mATX Motherboard |
|---|---|
| CPU | CPU Support Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Expansion Slots | Intel® Core™ Ultra Processors(series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Multi-GPU Support | N/A |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| USB | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A. |
| LAN | 1 x Realtek® 2.5Gb Ethernet TUF LANGuard |
| Wireless Communication | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Bluetooth v5.4*** * Wi-Fi features may vary depending on the operating system. For Windows® 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows® 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows® 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor’s website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers |

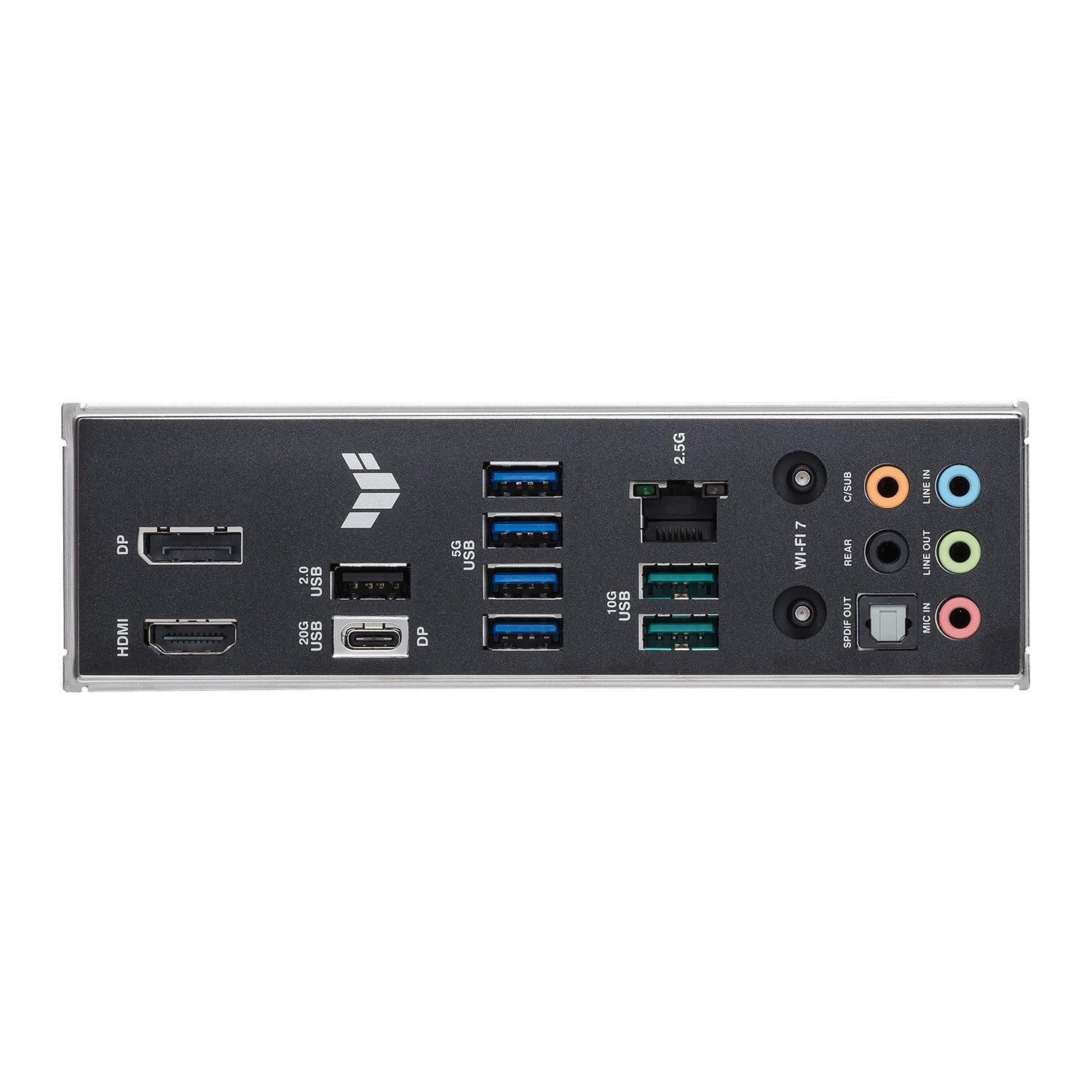

| Back Panel I/O | 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| Operating System | Supports Windows® 11 (22H2 & later) |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | micro-ATX Form Factor |
| Dimensions (LxW) | 24.4 x 24.4 cm (9.6″ x 9.6″) |
| Weight | N/A |
| Motherboard Brand | |
|---|---|
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
