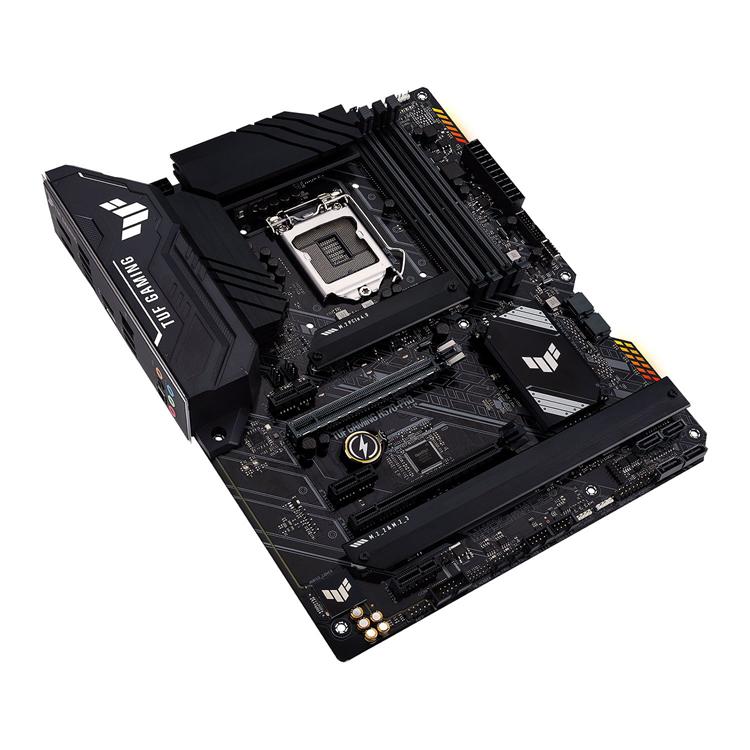

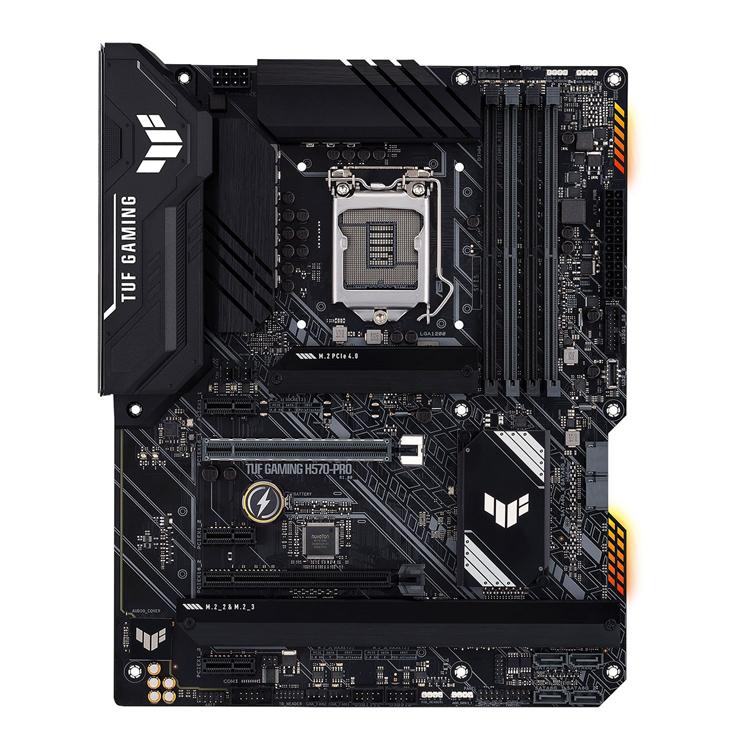

Description
Intel H570 Chipset
LGA 1200 CPU Socket
10th & 11th Generation Intel Compatible Processors
ATX Form Factor
Built to Take the Strain
ENHANCED EATX 8-PIN CONNECTOR
TUF COMPONENTS
DIGI+ VRM
6-LAYER PCB DESIGN
Cooler by Design
THERMAL PAD
2. 3X M.2 SLOTS WITH HEATSINKS
Comprehensive Fan Controls
Lightning-Fast Storage with M.2 Slots
*Actual transmission speed will be lower than theoretical maximum speed.
**The M.2_1 supports PCIe 4.0, and the M.2_2 and M.2_3 support PCIe 3.0.
Get the Most from your Memory
Outshine the Competition
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
Get the Most from your Connectivity with Thunderbolt™ 4
INCLUDES USB 3.2 GEN 2X2 TYPE-C
Extensive USB support ensures connections to a wide array of peripherals. TUF H570-PRO includes USB 3.2 Gen 2×2 Type-C® that deliver increased bandwidth and transmission speeds of up to 20 Gbps. TUF GAMING H570 series feature Thunderbolt™ 4 support via an on-board header. With latest Intel-certified ASUS ThunderboltEX 4 add-on card, TUF GAMING H570-PRO can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.
Specifications
Core Specifications
Edition
TUF GAMING H570-PRO
Form Factor
ATX
CPU Socket
1200
Chipset
Intel H570
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type (ECC)
Non-ECC
Memory Type (R/U)
UDIMM (Unbuffered)
Memory Speed (Mhz)
- DDR4 – 2133
- DDR4 – 2400
- DDR4 – 2666
- DDR4 – 2800
- DDR4 – 2933
- DDR4 – 3200(OC)
- DDR4 – 3333(OC)
- DDR4 – 3466(OC)
- DDR4 – 3600(OC)
- DDR4 – 3733(OC)
- DDR4 – 4000(OC)
- DDR4 – 4266(OC)
- DDR4 – 4400(OC)
- DDR4 – 4600(OC)
- DDR4 – 4800(OC)
- DDR4 – 5000(OC)
Max. Memory Capacity
Audio
Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface
PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support
Not Supported
AMD CrossFire Support
Not Supported
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
- DisplayPort 1.4
- HDMI 2.0
Internal Connectivity
Expansion Slots
- 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
- 1 x M.2, 22-42/60/80, PCIe Gen4x4
- 3 x PCIe 3.0 x1
- 1 x PCIe 3.0 x16
- 1 x PCIe 3.0 x16 (x4 Bandwidth)
- 1 x PCIe 4.0 x16
- 6 x SATA 6GB/s
SATA Support
SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
- 1 x 24-pin (Power)
- 3 x 4-pin CHA_FAN connector
- 1 x 4-pin CPU Fan Connector
- 1 x 4-pin CPU OPT Fan Connector
- 1 x 8-pin (Power)
- 1 x AIO Pump Connector (4-Pin)
- 2 x Aura Addressable Gen2 Header
- 2 x Aura RGB Strip Headers
- 1 x Clear CMOS Header
- 1 x Front Panel Audio Header
- 3 x M.2
- 1 x M.2 Socket 1 with E key, type 2230 Wi-Fi devices
- 1 x S/PDIF-Out Header
- 6 x SATA III – 6Gb/s
- 1 x Serial (COM) Header
- 1 x System Panel Connector with Chassis Intrusion
- 1 x Thunderbolt header
- 1 x TPM (SPI_TPM) header
- 2 x USB 2.0 Header
- 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
Wired 2.5 Gigabit LAN
Network Chip/Modules
1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
- 1 x 5.1 Audio I/O
- 1 x Central Speaker Out
- 1 x DisplayPort
- 1 x HDMI
- 1 x Line In
- 1 x Rear Speaker Out
- 1 x RJ-45
- 1 x S/PDIF-Out (Optical)
- 4 x USB 2.0
- 1 x USB 3.2 Gen1 Type-A
- 2 x USB 3.2 Gen2 Type-A
- 1 x USB 3.2 Gen2 Type-C
- 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
QPI Speed
N/A
Board Dimensions
305 x 244 mm
Note
