ASUS TUF GAMING X570-PLUS (WI-FI) MOTHERBOARD

ASUS TUF GAMING X570-PLUS (WI-FI) MOTHERBOARD

Name: ASUS TUF GAMING X570-PLUS (WI-FI) MOTHERBOARD
Brand: ASUS
SKU: 90MB1170-M0EAY0
Price: 5843.00 ZAR
Availability: OutOfStock

R5843.00 Incl. Vat

KEY FEATURES:

– AMD Socket AM4

– AMD X570 Chipset

– 4x DDR4 Slots – up to 128GB

– 8x SATA 6Gb/s | 2x Gen4 M.2 Slot

– 1 x DisplayPort | 1 x HDMI Port

– ATX Form Factor

– AMD CrossFireX

Out of stock

SKU: 90MB1170-M0EAY0 Categories: AMD Mobo, ASUS, Components, Motherboards, X570 Tags: 90MB1170-M0EAY0, Asus, Motherboard, TUF Gaming, Wi-Fi, X570 PLUS

Description

ASUS TUF Gaming X570-Plus (Wi-Fi) Ryzen 3rd Gen Motherboard

Built For the New 3rd gen RYZEN LineupTUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability. This particular X570 motherboard comes with built in Wi-Fi that pushes wireless data up to 2X faster so you’ll get fast, smooth transfers, even when your rig is further away from the router.

Core Specifications
Edition	TUF GAMING X570-PLUS (WI-FI)
Form Factor	ATX
CPU Socket	AM4
Chipset	AMD X570

RAM Memory Support
Memory Type	DDR4
Memory Channel	Dual (2)
Memory Type (ECC)	ECC/Non-ECC
Memory Type (R/U)	UDIMM (Unbuffered)
Memory Speed (Mhz)	DDR4 – 2133 DDR4 – 2400 DDR4 – 2666 DDR4 – 2800(OC) DDR4 – 2933 DDR4 – 3000 DDR4 – 3200 DDR4 – 3400(OC) DDR4 – 3466(OC) DDR4 – 3600(OC) DDR4 – 4400(OC)
Max. Memory Capacity	128GB (4x32GB)

Audio
Audio	Realtek ALC S1200A 7.1 HD Audio

Graphics Support
Primary GPU Interface	PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support	Not Supported
AMD CrossFire Support	2-Way CrossFire
Integrated Graphics	Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors	DisplayPort HDMI 1.4b

Internal Connectivity
Expansion Slots	2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA 3 x PCIe 4.0 x1 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support	SATA3 / M.2
RAID Support via	SATA
Storage Mode Support	NVMe Boot (via M.2 PCIe Slot) NVMe Boot (via PCIe 4.0 Slot) RAID 0 RAID 1 RAID 10
Internal I/O	1 x 24-bit dual-channel LVDS 1 x 4-pin (Power) 1 x 4-pin AIO_PUMP Connector 1 x 4-pin CPU Fan Connector 1 x 4-pin CPU OPT Fan Connector 3 x 4-pin System Fan Connector 1 x 8-pin (Power) 1 x Addressable Digital RGB Header 1 x Clear CMOS jumper 1 x Front Panel Audio Header 2 x RGB Header 8 x SATA III – 6Gb/s 1 x Serial (COM) Header 1 x System panel connector 1 x TPM (SPI_TPM) header 2 x USB 2.0 Header 1 x USB 3.2 Gen1 Header

External Connectivity

Network Interface Type

- 802.11ac WiFi LAN

- Wired Gigabit LAN (10/100/1000)

Network Chip/Modules

- 1 x Intel Wireless-AC 9260 (ac WiFi, BT5)

- 1 x Realtek L8200A (Gigabit LAN)

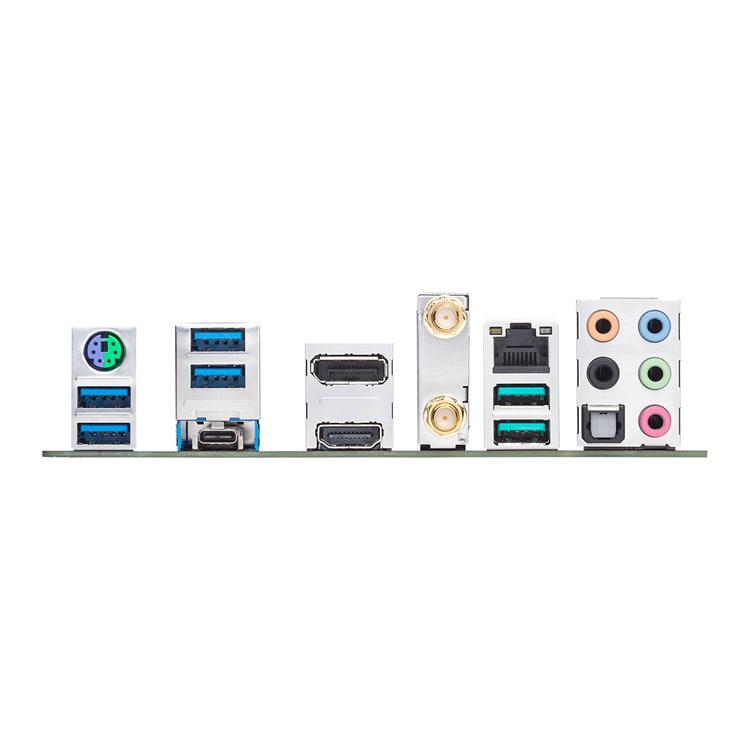

Rear I/O Connectors

- 1 x Center/Subwoofer Speaker Out

- 1 x DisplayPort

- 1 x HDMI 1.4b

- 1 x Line In

- 1 x Line Out

- 1 x Mic-In

- 1 x PS/2 Keyboard/Mouse Combo

- 1 x Rear Speaker Out

- 1 x RJ-45

- 1 x S/PDIF-Out (Optical)

- 4 x USB 3.2 Gen1 Type-A

- 2 x USB 3.2 Gen2 Type-A

- 1 x USB 3.2 Gen2 Type-C

- 2 x WiFi Antenna connectors

Additional Specifications
Water Cooled	No
Cooling	PCH Fan & Passive Heatsinks
QPI Speed	N/A
Board Dimensions	305 x 244 mm
Note

Additional information

Weight	2 kg
CPU Socket Type	AM4
CPU Cooling Socket Support	AM4
Memory Form Factor	288-Pin DIMM
Memory Type	DDR4
Motherboard Brand	Asus
Motherboard Category	AMD
Motherboard Chipset	X570
Form Factor	ATX
Motherboard Socket Type	AM4
