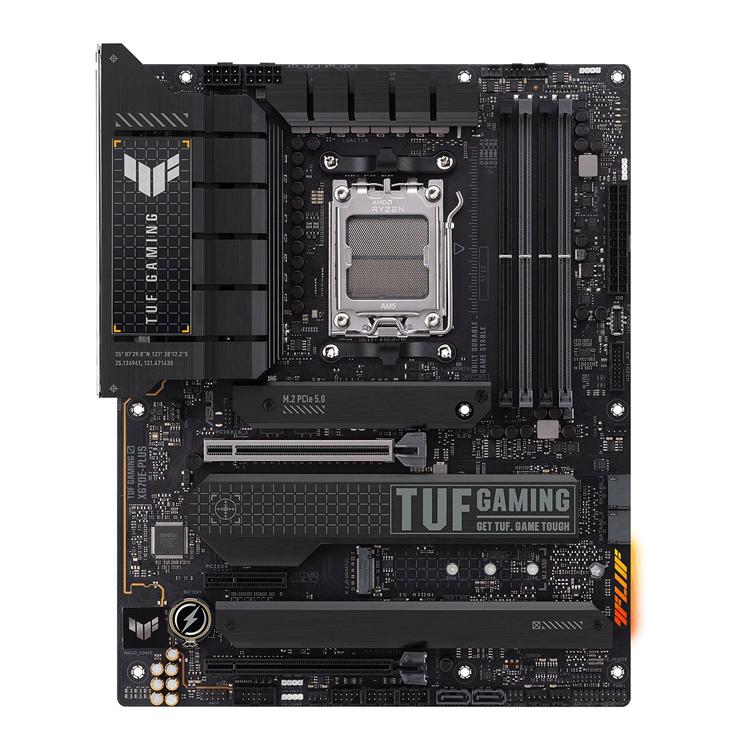

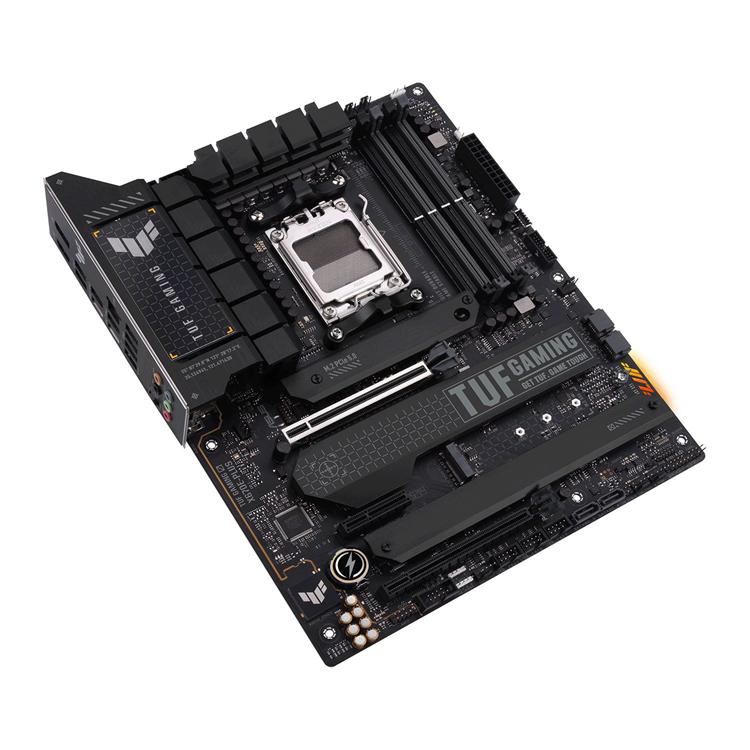

ASUS TUF GAMING X670E-PLUS AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard

ASUS Introduces The TUF GAMING X670E-PLUS WIFI Motherboard: Designed To Enhance AMD Socket AM5 Processors

16 Power Stages, PCIe® 5.0 x16 Card Slot, 4x DDR5 6400+ (OC) Memory Slots, 4x M.2 slots, WiFi 6E + 2.5 Gb Ethernet port, Thunderbolt 4 / USB 4 Type-C (40Gbps) header, 7.1 Channel Audio w/ 120dB SNR Stereo Playback + 113dB SNR Recording, and Aura RGB Lighting
ASUS TUF GAMING X670E-PLUS WIFI 6E is designed with Military-Grade (Mil Grade) Components and game-ready features to provide unwavering gaming stability with the latest AMD Ryzen 7000 series processors and combines them with game-ready features and proven durability.
Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, the TUF GAMING X670E-PLUS WIFI 6E sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

• • AMD Socket AM5 (1,718 Pins): Ready for AMD Ryzen™ 7000 Series Desktop Processors

• • Enhanced Power Solution: 14+2 teamed power stages, eight-layer PCB, 8+8 ProCool sockets, alloy chokes and durable capacitors for stable power delivery

• • Next-Gen Connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, USB4® support

• • Made For Online Gaming: Realtek 2.5 Gb Ethernet, WiFi 6E and TUF LANGuard

• • Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

• • Comprehensive Cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate

• • Aura Sync RGB Effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support

• • Enhanced Power Solution: 14+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance



Supports AMD Ryzen™ 7000 Series Desktop Processors for AMD Socket AM5 (LGA 1718)

Overclocking Technologies:
Dynamic OC Switcher, Ryzen Core Flex, and AI Overclocking get more out of your AMD Rysen 7000 Series Processor.

High-Performance Networking:
Onboard WiFi 6E with IEEE 802.11 ax + Bluetooth v5.2, an Intel® 2.5 Gb RJ45 Port along with ASUS LANGuard give you incredible networking.

Fast Gaming Connectivity:

A single PCIe® 5.0 x16 Slot (x16 mode only), 1x PCIe 5.0 M.2 slot + 2x PCIe 4.0 M.2 slots + 1x PCIe 3.0 M.2 slots.

Unmatched Personalization:
ASUS-exclusive Aura Sync RGB lighting includes one Aura Sync RGB header and three addressable Gen 2 RGB headers.

Supports AMD Ryzen™ 7000 Series Desktop Processors for AMD Socket AM5 (LGA 1718)

• • Windows® 11, 64bit

Make and Model	ASUS TUF GAMING X670E-PLUS WIFI Motherboard
Part Number	TUF GAMING X670E-PLUS WIFI
Windows® Support	Windows® 11, 64 bit
CPU Support	Ryzen™ 7000 Series Desktop Processors for Socket AM5
Chipset	Intel® X670 Chipset
CPU Socket	AMD Socket AM5
Memory	4x DDR5 RAM Slots, 128GB Maximum (4x 32GB) of ECC & non-ECC Un-buffered Memory Supports Overclocked DDR5 RAM: DDR5-6400+ / 6400 / 6200 / 6000 / 5800 MHz Supports Stock Clocked DDR5 RAM: DDR5-5600 / 5400 / 5200 / 5000 / 4800 MHzDual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II
Expansion Slots	1x PCIe 5.0 x16 slot (supporting Video Cards in x16 mode only) 1x PCIe 4.0 x16 slot (supports x4 mode) 1x PCIe 4.0 x4 slot (supports x4 mode)
Onboard Graphics	1x HDMI v2.1 port (Up to 4K UHD @ 60Hz) 1x DisplayPort v1.4 port (Up to 8K UHD @ 60Hz)
Storage	4x M.2 NVMe Slots: M.2_1 slot (Key M) PCIe 5.0 x4, type 2242 / 2260 / 2280 M.2_2 slot (Key M), PCIe 3.0 x4 or SATA, type 2242 / 2260 / 2280 / 22110* * M.2_2 slot shares bandwidth with SATA_1&2 ports. When M.2_w runs at PCIe x4 mode, SATA_1&2 will be disabled M.2_3 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 M.2_4 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 AMD RAID Xpert Technology supports NVMe RAID 0 / 1 / 10 4x SATA 6Gb/s ports * AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
USB	Rear USB Ports: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 3x USB 3.2 Gen 2 (10Gbps) Type-A ports 5x USB 3.2 Gen 1 (5Gbps) Type-A ports Internal USB Ports via USB Headers: 1x USB 4.0 (40Gbps) Type-C / Thunderbolt™ 4 (40Gbps) header 1x USB 3.2 Gen 2 (10Gbps) header supports 1x USB 3.2 Type-C port 1x USB 3.2 Gen 1 (5Gbps) header supports 2x USB 3.2 Gen 1 (5Gbps) Type-A ports 3x USB 2.0 headers support 6x USB 2.0 (480Mbps) ports
Thunderbolt 4 Port	1x Thunderbolt™ 4 (40Gbps) / USB 4.0 (40Gbps) Type-C header
LAN	Realtek LAN Chipset: 1x 2.5GbE RJ45 LAN port ASUS LANGuard
Wi-Fi	Wi-Fi 6E Wireless Chipset: IEEE 802.11 a/b/g/n/ac/ax TriBand (2.4 / 5 / 6GHz) WiFi w/ 2×2 Antenna
Bluetooth	Wi-Fi 6E Wireless Chipset: Bluetooth® v5.2
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*: * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* * (Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.) Audio Features: – DTS Audio Processing – Audio Shielding – Premium Audio Capacitors – Dedicated Audio PCB Layers – Audio Cover – Unique De-Pop Circuit

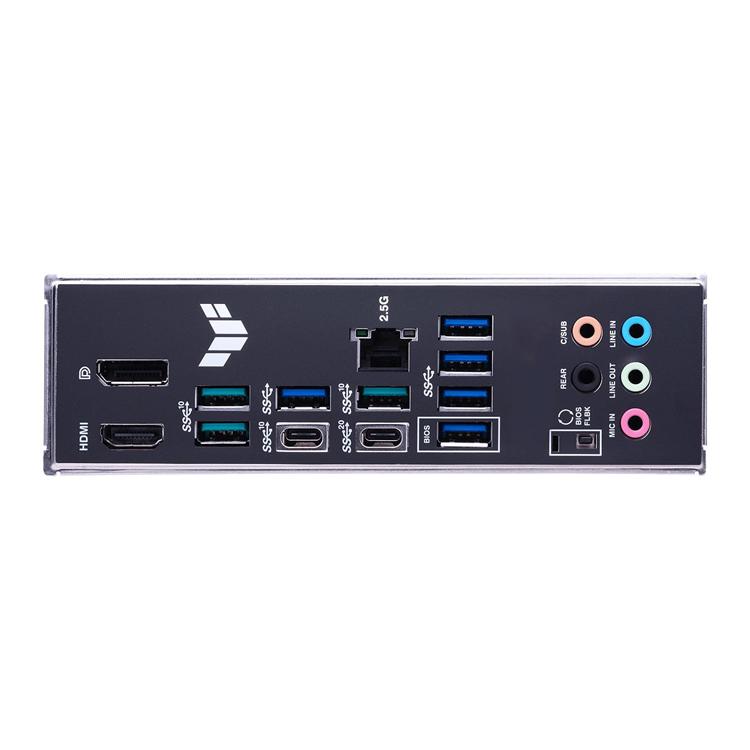

Rear I/O Ports	1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 3x USB 3.2 Gen 2 (10Gbps) Type-A ports 5x USB 3.2 Gen 1 (5Gbps) Type-A ports 1x HDMI v2.1 port (4K UHD @ 60Hz) 1x DisplayPort v1.4 port (8K UHD @ 60Hz)1x 2.5Gb RJ45 Ethernet port 2x WiFi Antenna jacks 5x 3.5mm Audio jacks1x BIOS FlashBack™ Button
Internal I/O Connectors	Fan and Cooling: 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 4x 4-pin Chassis Fan header 1x W_PUMP+ header Power: 1x 24-pin Main Power connector 2x 8-pin +12V Power connectorsStorage: M.2_1 slot (Key M) PCIe 5.0 x4, type 2242 / 2260 / 2280 M.2_2 slot (Key M), PCIe 3.0 x4 or SATA, type 2242 / 2260 / 2280 / 22110* M.2_3 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 M.2_4 slot (Key M) PCIe 4.0 x4, type 2242 / 2260 / 2280 4x SATA III 6Gb/s ports USB: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-C port 3x USB 3.2 Gen 2 (10Gbps) Type-A ports 5x USB 3.2 Gen 1 (5Gbps) Type-A portsMiscellaneous: 1x Thunderbolt™ 4 (40Gbps) / USB 4.0 (40Gbps) Type-C header 3x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x COM Port header 1x Front Panel Audio header (AAFP) 1x 20-3 pin System Panel header with Chassis intrude function 1x Thermal Sensor header
BIOS Management	256Mb Flash w/ UEFI AMI BIOS WOL by PME, PXE
Software Features	ASUS Exclusive Software: Armoury Crate – Aura Sync – Fan Xpert 4 with AI Cooling II – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Easy Optimization – DIGI+ VRM – Turbo app – PC CleanerTUF GAMING CPU-Z DTS Audio ProcessingMyAsus Norton Anti-virus software (Free Trial version)WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Special Features	TUF PROTECTION – DIGI+ VRM (- Digital power design with DrMOS) – ESD Guards – LANGuard – Overvoltage Protection – Safeslot – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution – M.2 heatsinks – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ Button – BIOS FlashBack™ LED – Clear CMOS button – ProCool – Pre-mounted I/O Shield – SafeSlot – SafeDIMMAURA Sync – 1x Aura Sync RGB header – 3x Addressable Gen 2 headers
Form Factor	ATX Form Factor
Dimensions (LxW)	305 x 244mm
Weight	N/A
