Description
Part number90NB12U1-M00920
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | Zenbook Duo OLED Series |

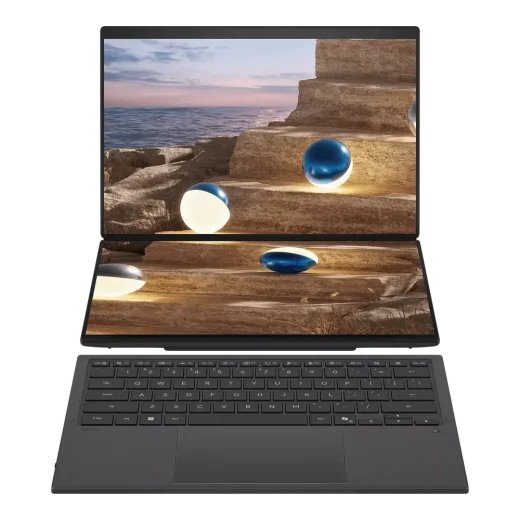

| Model | Zenbook Duo OLED UX8406MA (UX8406MA-OU93210G0W / 90NB12U1-M00920) |
| Processor | |
| Model | Core Ultra 9 185H |
| Chipset Manufacturer | Intel |
| Boost Clock | 5.10GHz |
| Core Arrangement | 6x Performance Cores, 8x Efficient Cores,2x Low-Power Background Efficient Cores |
| Core Count | 16 cores |
| Thread Count | 22 threads |
| Cache | 24MB Smart Cache |
| Lithography | Intel 7 Process |
| Memory | |
| Total Installed | 32GB (On-Board) |
| Type | LPDDR5X |
| Maximum Capacity | 32GB (On-Board) LPDDR5 |
| No SO-DIMM slots available for upgrade | |
| Graphics | |
| Type | Intel Arc Integrated Graphics |
| Display | |
| Size | Dual 14″ |
| Panel Type | OLED (Organic Light-Emitting Diode) with ASUS Lumina OLED Technology |
| Native Resolution | WQXGA (2880×1800) |
| Aspect Ratio | 16:10 |
| Response Time | 0.2ms GtG |
| Refresh Rate | 120Hz |
| Brightness | 500nits Peak |
| VESA Certified DisplayHDR True Black 500 | |
| Colour Gamut | 100% DCI-P3 |
| Contrast Ratio | 1,000,000:1 |
| Colour Depth | 1.07 billion colors |
| Certifications | PANTONE Validated |
| TUV 70% less harmful blue light | |
| SGS Eye Care Display | |
| Touch Input | Yes, supports 10-point multitouch & ASUS Stylus Pen |
| Storage | |
| Installed | 1x 1TB M.2 2280 PCIe 4.0 NVMe SSD |
| Supported | 1x M.2 2280 PCIe 4.0 NVMe SSD Slot (Occupied) |
| Connectivity | |
| Ports | 1x USB 5Gbps Type-A Port |
| 2x Thunderbolt 4 USB Type-C Ports with DisplayPort & 65W Power Delivery | |
| 1x HDMI 2.1 (TMDS) | |
| 1x 3.5mm Combination Audio Jack | |
| Audio | |
| Speakers | Stereo speakers tuned by harman/kardon with ASUS Audio Booster & Dolby Atmos, Tuned by harman/kardon |
| Microphone | Dual array AI Noise Canceling microphones |
| Networking | |
| Ethernet | N/A |
| Wi-Fi | WiFi 6E 2×2 MIMO Dual-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Integrated Input Devices | |
| Keyboard | ASUS Premium Detachable Wireless Chiclet Keyboard |
| Pointing Device | ASUS Precision Touchpad |
| Fingerprint Reader | N/A |
| General | |
| Webcam | Full HD 1080P Webcam with Windows Hello & Privacy Shutter |
| Operating System | Windows 11 Home 64-bit |
| Battery | 75WHrs, 2S1P, 4-cell Li-ion |
| AC Adapter | 65W USB Type-C AC Adapter, Input: 100-240V AC 50/60GHz universal |
| Dimensions | 313.5 x 217.9 x 19.9mm (W x D x H) |
| Weight | 1.39kg |
| Repairability Index | 7.5 (France) |
| Boxed Accessories | ASUS Laptop Backpack |
| ASUS Stylus Pen | |
| Warranty Information | |
| Warranty | 1 Year Warranty (Including OLED Burn-In) |
