Description
Part numberUP6502ZA-OI71610B0W
Part number90NB0W22-M003V0

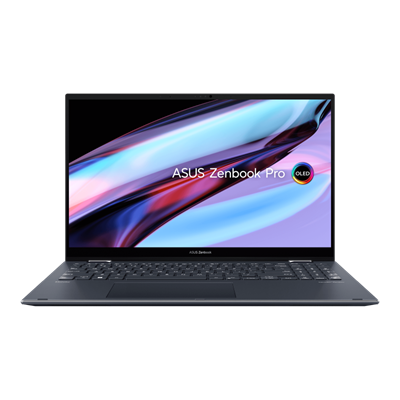

The versatile and powerful Zenbook Pro 15 Flip OLED is an Intel® Evo™-certified convertible laptop that’s designed for those who want to do more. Its 12th Gen Intel® Core™ processor and up to all-new Intel® Arc™ discrete GPU deliver outstanding multitasking and creative power, with up to ASUS IceCool Plus thermal technology for maximum performance. The world-leading 2.8K 120 Hz OLED NanoEdge Dolby Vision touchscreen1,2 has a cinema-grade 100% DCI-P3 gamut, and is PANTONE® Validated with DisplayHDR™ True Black 500 certification. It’s also TÜV Rheinland-certified for eye care. The Harman Kardon-certified Dolby Atmos audio system adds to the cinematic experience with ultra-realistic multi-dimensional sound. For fast face login there’s an HD IR camera, and a color sensor allows automatic control of screen brightness and color temperature. You’ll love the modern new design with its classy stepped diamond-cut edges, and you’ll enjoy the productivity-boosting 360° ErgoLift hinge and the latest ASUS Pen 2.03. Zenbook Pro 15 Flip OLED is versatility, reimagined!
World’s 1st 15.6” 2.8K 120 Hz OLED display

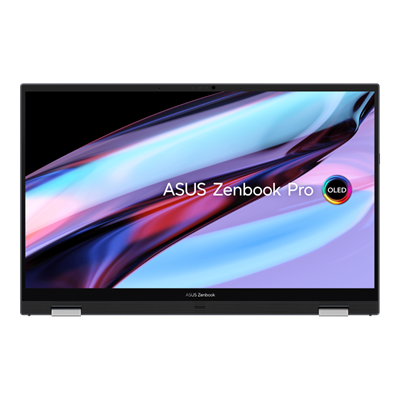

The brilliant 2.8K 120 Hz OLED NanoEdge Dolby Vision touchscreen on Zenbook Pro 15 Flip OLED delivers incredibly detailed moving visuals with ultra-vivid colors that surpass that of a 165 Hz IPS display. The NanoEdge design has ultra-slim bezels and a 90% screen-to-body ratio, and it’s PANTONE® Validated for color fidelity with a cinema-grade 100% DCI-P3 gamut. The DisplayHDR™ True Black 500 certification means it displays the deepest possible blacks, and your eyes are cared for during long screen sessions with low blue-light levels that are certified by TÜV Rheinland11.
Performance to get the job done
Zenbook Pro 15 Flip OLED is built to deliver the all-round performance you need for smooth multitasking, effortless productivity and easy creativity. It uses only the best quality high-performance components, including the latest 12th Generation Intel® Core™ processors and up to Intel® Arc™ A370M discrete graphics, with ultrafast and silent SSD storage for wait-free app load and booting. The latest WiFi 6E5 (802.11ax) gives you gigabit-class wireless connections, and ASUS IceCool Plus thermal technology — with a choice of three cooling fan modes via the MyASUS app — ensures maximum performance whenever you want it, and quiet operation when you need it.
Boost performance with ASUS IceCool Plus thermal technology
Zenbook Pro 15 Flip OLED has exceptional heat dissipation via upgraded dual 8 mm heat pipes and dual 91-blade fans that efficiently accelerates heat transfer. The fan blades and impeller are made of a liquid-crystal polymer that allows them to be lighter and thinner than ordinary fans. Each fan blade has a 3D-curved aerodynamic design, allowing the fan to achieve better flow rate. In addition, the fans also use a fluid-dynamics bearing, which can achieve better vibration reduction and lower noise when compared to ordinary fans.
12th Gen Intel® Core™ processors
Zenbook Pro 15 Flip OLED uses up to a 12th Gen Intel® Core i7 processor that delivers premium performance for demanding tasks. Whatever the task, Zenbook Pro 15 Flip OLED will boost your efficiency and productivity.
No-compromise graphics
Designed to deliver immersive visuals and premium performance for creators, Zenbook Pro 15 Flip OLED uses up to the all-new Intel® Arc™ A370M discrete GPU, which includes the latest innovations for the best creative experiences. It offers real-time ray tracing, mesh shaders and AI upscaling to make this laptop a surreal graphics powerhouse for the new era.
Supreme versatility

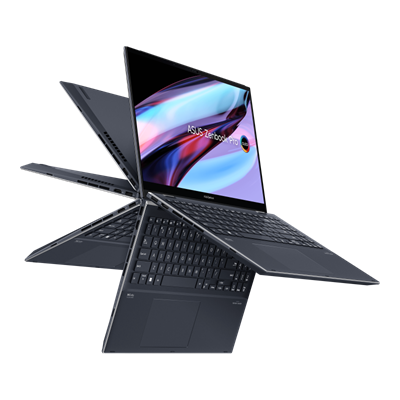

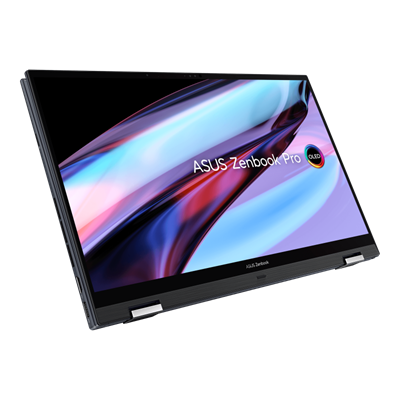

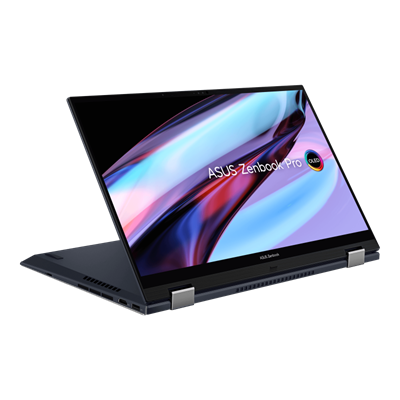

The precision-engineered 360° ErgoLift hinge on Zenbook Pro 15 Flip OLED has a silky-smooth, stepless action that gives you the versatility to work or relax using any mode you choose: laptop, tent, stand or tablet — or anything in between. The ErgoLift hinge is torture-tested to ensure maximum reliability for total peace of mind.
Unleash your creativity
The new ASUS Pen 2.0 is the perfect creative choice for Zenbook Pro 15 Flip OLED. This MPP 2.0 stylus has ultra-low latency and fast response, so it can accurately reproduce the finest lines and the broadest brush strokes. With 4096-level pressure sensitivity, 5-350 gram pen tip force, multi-function shortcut button and fast USB-C charging ensure unmatched writing and drawing experiences.
Non-stop productivity
The high battery capacity of Zenbook Pro 15 Flip OLED makes everything possible! The long-lasting 96 Wh battery with its 12-hour battery life means less trips to the power outlet for non-stop productivity.
World-leading motion clarity with 120 Hz OLED display
The world’s first 120 Hz refresh rate, 0.2 ms response time OLED laptop display gives you so much more on top of the best colors and quality for any content — gaming, creation, day-to-day work and media entertainment can all benefit from the smoother-than-ever experience. In a word, it’s awesome!
Ultimate 120 Hz / 0.2 ms for exceptional motion clarity
The new premium ASUS OLED display with 120 Hz refresh rate and 0.2 ms pixel response time is incredibly smooth and clear. In fact, both surprisingly and counter-intuitively, the 120 Hz / 0.2 ms OLED display is faster than a 165 Hz / 3 ms LCD IPS display — because it reduces ghosting to an indiscernible level. Simply put, this means even fast-moving visuals are smoother and clearer than ever.
How 120Hz / 0.2ms OLED display has better motion clarity than 165Hz / 3ms LCD display
It seems counter-intuitive that a 120 Hz / 0.2 ms OLED display could outperform a 165 Hz / 3 ms LCD display rival — so how is this possible? Well, the LCD panel takes precisely 6.06 ms to refresh each frame, but it takes another 3 ms of response time to process the correct colors. That’s a total of 9.06 ms to fully load the image. A 144 Hz / 12.5 ms LCD display takes even longer, at 19.44 ms to show the full, final frame of each image. But with its extreme-speed response, a 120 Hz / 0.2 ms OLED display takes just 8.5 ms to process the same — making it even faster than a 165 Hz / 3 ms LCD display.
Customizable color gamut for every need
The display’s color gamut can be quickly and easily switched for different tasks or preferences. On top of the ultravivid native color setting, choose sRGB for creating web content or browsing, DCI-P3 for cinema content, or Display P3 for movie-grade colors finessed to fit everyday viewing in the real world.
Break the sound barrier
For unrivaled audio quality, Zenbook Pro 15 Flip OLED has a Dolby Atmos stereo sound system that’s certified by the audio experts at Harman Kardon. It delivers powerful, immersive sound that’s crystal-clear, with the multi-dimensional soundscape of Dolby Atmos. It immerses you in your favorite entertainment with sound that moves all around you with breathtaking realism in music, movies and TV.
Smart Amp — 350% louder sound, zero distortion
The volume-enhancing, distortion-suppressing dual-channel smart amplifier is equipped with a powerful DSP chip that can drive the twin speakers at the maximum volume possible while preventing long-term damage to the sensitive speaker voice coils. Creating or listening to audio in your videos, movies, music or games has never sounded better!
Next-level ASUS AI Noise-Canceling Technology
To provide exceptional remote-working and video-conferencing experiences, features ASUS AI Noise-Canceling Technology that employs machine learning in order to isolate unwanted noise from human speech. This technology helps to filter out ambient noise for optimum group conference-call quality. The ASUS AI Noise-Canceling Microphone feature in the MyASUS app can filter out ambient noise, and the Multi-Presenter mode normalizes all individual voices from different positions for optimum group conference-call quality. The ASUS AI Noise-Canceling Speaker feature filters out all ambient noise apart from human speech — so you’ll hear what everyone else is saying.
ASUS ErgoSense keyboard and ErgoSense touchpad
It’s our mission at ASUS to elevate human interaction with technology to a higher and more intuitive level than ever before. The latest ASUS ErgoSense keyboard and ErgoSense touchpad are engineered to enable an unrivaled input experience that’s in harmony with how you move, feel and touch. Your comfort is our highest priority. That’s why the ASUS ErgoSense keyboard has an incredibly satisfying feel, with the optimum bounce and travel calculated with fine-tuned precision. Scrolling on our ASUS ErgoSense touchpad is just like touching silk. Its surface has a special low-friction coating that’s also fingerprint resistant, keeping your work area as clean as new.
Experience the ASUS ErgoSense keyboard and ErgoSense touchpad, and you’ll soon find yourself cruising effortlessly through your work.
User centric, intelligence interaction
To care about users’ demand is our design priority, and Zenbook Pro 15 Flip OLED operating multiple features, including single-zone RGB backlight, dedicated function keys, hands-free login with IR camera as well as ALS & RGB sensor.
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | Zenbook Pro 15 Flip OLED |
| Model | Zenbook Pro 15 Flip OLED UP6502 (UP6502ZA-OI71610B0W / 90NB0W22-M003V0) |
| Processor | |
| Model | Core i7-12700H |
| Chipset Manufacturer | Intel |
| Boost Clock | 4.70GHz |
| Core Arrangement | 6 Performance Cores, 8 Efficient Cores |
| Core Count | 14 |
| Thread Count | 20 |
| Cache | 24MB Smart Cache |
| Lithography | Intel 7 Process |
| Memory | |
| Total Installed | 16GB (Onboard) LPDDR5 |
| Type | LPDDR5 |
| Maximum Capacity | 16GB (Onboard) LPDDR5 |
| Graphics | |
| Integrated | Intel Iris Xe Graphics |
| Display | |
| Size | 15.6″ |
| Panel Type | Organic LED (OLED) |
| Native Resolution | WQXGA (2880×1800) |
| Refresh Rate | 120Hz |
| Peak Brightness | 550 Nits |
| Response Time | 0.2ms |
| Colour Gamut | 100% DCI-P3 |
| Colour Depth | 1.07 billion colours |
| Certifications | VESA HDR True Black 500 |
| PANTONE Validated | |
| SGS Eye Care Display | |
| TUV Rheinland 70% less harmful blue light | |
| Touch Input | Yes, supports multi-touch and stylus input |
| Storage | |
| Installed | 1x 1TB PCIe 3.0 x4 NVMe M.2 SSD |
| Supported | 1x NVMe M.2 2280 SSD Slot (occupied) |
| Input / Output | |

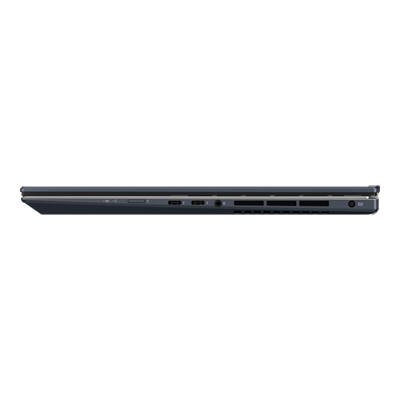

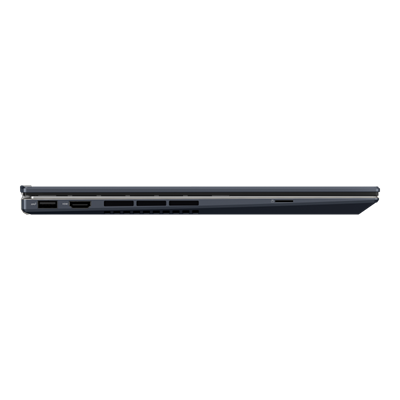

| Ports | 2x Thunderbolt 4.0 40Gbps Type-C Port with DisplayPort & 90W Power Delivery |
| 1x USB 3.2 10Gbps Type-A Port | |
| 1x HDMI 2.1 Port | |
| 1x 3.5mm Audio Combo Jack | |
| 1x MicroSD Card Reader | |
| Audio | |
| Speakers | Stereo speakers, tuned by harmon/kardon |
| Microphones | Dual array digital microphone |
| Networking | |
| Ethernet | N/A |
| Wi-Fi | WiFi 6E 2×2 MIMO Dual-Band Adapter |
| Bluetooth | Bluetooth 5.2 |
| LTE | N/A |
| Integrated Input Devices | |
| Keyboard | English International White LED Backlit Chiclet Keyboard |
| Pointing Device | ASUS Precision Trackpad with NumberPad 2.0 |
| Fingerprint Reader | N/A |
| General | |
| Webcam | 720P HD Webcam with Windows Hello |
| Operating System | Windows 11 Home 64-Bit |
| Battery | 96Wh, 6-Cell LI-Ion, supports Fast Charging |
| Power | 4.5, 90W AC Adapter, Output: 19V DC, 4.74A, 90W, Input: 100~240V AC 50/60Hz universal |
| Dimensions | 355.2 x 229 x 18.9mm (W x D x H) |
| Weight | 1.80kg |
| Boxed Accessories | ASUS Notebook Sleeve |
| ASUS Digital Stylus Pen | |
| Warranty Information | |
| Warranty | 1 Year Warranty |
