Description
Part number90IG05N0-MO3R60
WIFI COVERAGE EVERYWHERE. ALWAYS SECURE.

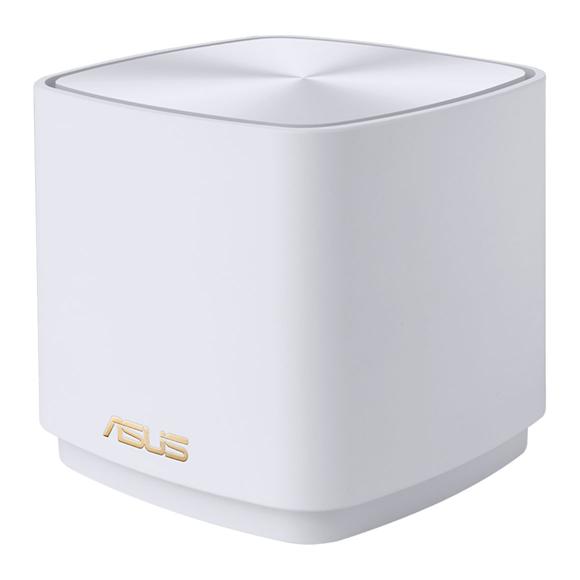

The ZenWiFi XD4 Plus system consists of a single ASUS AX1800 WiFi 6 router, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home! The ASUS ZenWiFi XD4 supports high-speed bandwidth, dramatically increasing network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.
WiFi 6 Technology
AiProtection Parental Control
2200 sq.ft Coverage for 2+ Rooms
Explore Ultimate WiFi 6 Performance
TRUE 8K STREAMING
ZenWiFi XD4 Plus puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it’s up to 1.4X faster than WiFi 5 routers.
One-Tap Safe Browsing
STAY PROTECTED
The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap – no extra apps required. Its lightweight DNS-based filtering won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.
Stable WiFi with Wired Connections between ZenWiFi Hubs
RELIABLE CONNECTIVITY
If you have Ethernet ports in your walls, you can set ZenWiFi XD4 Plus to use Ethernet backhaul, reserving all WiFi bands for your wireless devices for even more stable and reliable networking.
Easier-Than-Ever Setup
3-STEP SETUP WITH THE ASUS ROUTER APP
1: Turn on ZenWiFi XD4 Plus
2: Create a WiFi network name and an admin account
3: Wait for 3 minutes, and you’re done!
WHAT MAKES ZENWIFI XD4 PLUS SETUP SO EASY?
• One-time setup, with auto synchronization for all the hubs in each package.
• Just power XD4 Plus on and follow the instructions in the App, the setup is easily done!
| SPECIFICATIONS | |
| Brand | Asus |
| Series | ZenWiFi |
| Model | ZenWiFi XD4 (W-1PK) |
| Network Standard | IEEE 802.11a/b/g/n/ac/ax |
| IPv4/IPv6 | |
| Product Segment | AX1800 Ultimate AX Performance: 1201 Mbps 574 Mbps |
| AX Technology | Yes |
| Data Rate | 802.11a: Up to 54 Mbps |
| 802.11b: Up to 11 Mbps | |
| 802.11g: Up to 54 Mbps | |
| 802.11n: Up to 300 Mbps | |
| 802.11ac: Up to 867 Mbps | |
| 802.11ax (2.4GHz): Up to 574 Mbps | |
| 802.11ax (5GHz): Up to 1201 Mbps | |
| Antenna | 2x Internal Dual-Band Antenna |
| Transmit/Receive | MIMO Technology |
| 2.4 GHz 2 x 2 | |
| 5 GHz 2 x 2 | |
| Memory | 256 MB Flash |
| 256 MB RAM | |
| Operating Frequency | 2.4GHz, 5 GHz |

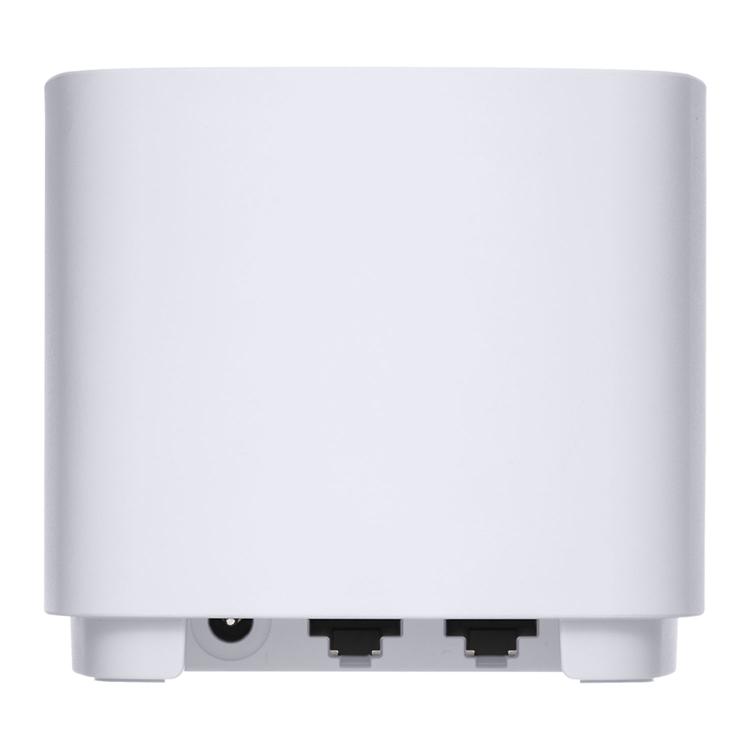

| Ports | 1x RJ45 for Gigabits BaseT for WAN/LAN |
| 1x RJ45 for Gigabits BaseT for LAN | |
| Button | WPS Button, Reset Button |
| LED Indicator | 1x Power |
| Power Supply | AC Input: 110V-240V (50-60Hz) |
| DC Output: 12 V with Max. 1.5 A Current | |
| AiMesh | Primary AiMesh Router: Yes |
| AiMesh Node: Yes | |
| Router APP | Yes |
| Game | Game Boost/Acceleration: No |
| WTFast: No | |
| Alexa | Support Alexa Skill: Yes |
| IFTTT | Support IFTTT: Yes |
| AiProtection | AiProtection: AiProtection Classic |
| Router Security Assessment: Yes | |
| Malicious Site Blocking: Yes | |
| Two-Way IPS: No | |
| Infected Device Prevention and Blocking: Yes | |
| Parental Control | Parental Control Customized Internet Schedule: Yes |
| Wireless | IPv6: Yes |
| MU-MIMO: Yes | |
| Wi-Fi Encryption: WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS Support | |
| Wi-Fi Encryption: WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS Support | |
| UTF-8 SSID: Yes | |
| Guest Network: Yes | |
| Maximum Guest Network Rule: 9 | |
| Guest Network Connection Time Limit: Yes | |
| WPS: Yes | |
| Wi-Fi MAC Address Filter: No | |
| Wireless Scheduler: No | |
| Airtime Fairness: No | |
| RADIUS Server: No | |
| Universal Beamforming: No | |
| Explicit Beamforming: No | |
| WAN | Internet Connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| Dual WAN: No | |
| WAN Aggregation: No | |
| 3G/4G LTE Dongle: No | |
| Android Tethering: Yes | |
| Port Forwarding: Yes | |
| Port Triggering: Yes | |
| DMZ: Yes | |
| DDNS: Yes | |
| NAT Passthrough: Automatic IP, Static IP, PPPoE(MPPE Supported), PPTP, L2TP | |
| Let’s Encrypt: No | |
| LAN | DHCP Server: Yes |
| IGMP Snooping: Yes | |
| IPTV: Yes | |
| LAN Link Aggregation: No | |
| Manually Assign IP Address: Yes | |
| Maximum Manually Assign IP Address Rule: 64 | |
| VPN | VPN Client L2PT: Yes |
| VPN Client OVPN: Yes | |
| VPN Client PPTP: Yes | |
| VPN Server IPSec: Yes | |
| VPN Server OVPN: Yes | |
| VPN Server PPTP: Yes | |
| VPN Fusion: No | |
| Weight | Router: 295g |
| Package Contents | Router (XD4R) |
| RJ45 Ethernet Cable | |
| Power Adapter | |
| Quick Start Guide | |
| Warranty Card | |
| Router (XD4R) | |
| Node (XD4N) | |
| RJ45 Ethernet Cable | |
| Power Adapter | |
| Quick Start Guide | |
| Warranty Card | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
