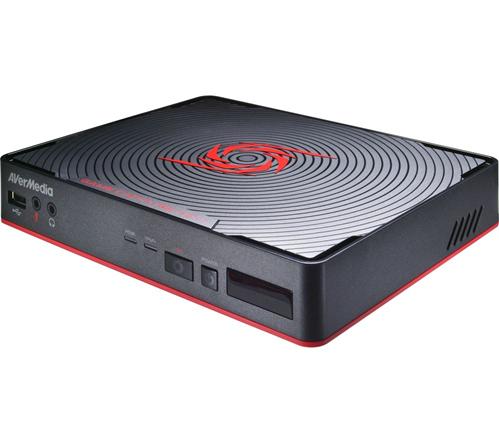

AVERMEDIA C285 GAME CAPTURE HD II

Description

n
nTechnical Specifications• Interface:Standalone
n• Storage:USB port, 2.5″ internal SATA bay**
n• Network:Ethernet (10BASE-T / 100BASE-T)
n• Video Input:HDMI / Component
n• Video Output (Pass-Through):HDMI
n• Audio Input:HDMI, RCA L/R, 3.5 mm microphone
n• Audio Output (Pass-Through):HDMI, 3.5 mm stereo
n• Max Pass-Through Resolutions:1080p60
n• Max Record Resolutions:1080p30
n• Supported Resolutions (Video input):1080p, 1080i, 720p, 576p, 576i, 480p, 480i
n• Record Format:MPEG 4 (H.264+AAC)
n• Dimension (W x D x H):190 x 152.5 x 33.5 mm (7.5 x 6 x 1.3 in)
n• Weight:421 g (14.9 oz)
nNotes:
n1. Game Capture HD II does not support viewing/recording/streaming of HDCP protected signals
n
n2. ** Not included. NTFS format in MBR partition table is required. (FAQ link here)
n
nUSB hubs, card readers, FAT format, NAS or HDDs over 2 TB capacity are not supported.
n
n3. When playing back on TV, 1080p30 video may be displayed as 1080i60.
n

n

What’s in the box

n

• Game Capture HD II (C285)
n• HDMI cable
n• Power adapter (12V / 1.5A)
n• Remote control
n• Quick guide
n• User manual

n
