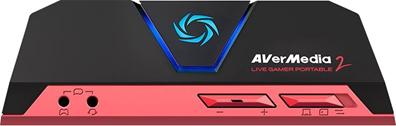

AVERMEDIA GC513 LIVE GAMER PORTBLE 2 PLUS

n
n
nTechnical Specifications• Interface:USB 2.0 (USB Micro)
n• Video Input:HDMI 2.0
n• Video Output (Pass-Through):HDMI 2.0
n• Audio Input:HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio input from controller, Mic pass-through)*1
n• Audio Output (Pass-Through):HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio pass-through from controller, Mic input)*1
n• Max Pass-Through Resolutions:4Kp60 / 1080p60
n• Max Record Resolutions:1080p60
n• Supported Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p, 480i
n• Operation Modes:PC mode, PC-free mode, Card reader mode
n• Record Format:MPEG 4 (H.264+AAC) / MJPEG / Supports hardware encoding
n• Dimension (W x D x H):147 x 57 x 47 mm (5.8 x 2.2 x 1.8in)
n• Weight:185.5g (6.54 oz)
nNotes:
n1. LGP2 PLUS does not support viewing/recording/streaming of HDCP protected signals
n
n2. Micro SD Class 10 card is required for PC-Free recording, Micro SD card is not included.
n3. Micro SD maximum capacity support: 128GB
n4. Micro SD Supported formats: FAT32 format / exFAT format
n- When using the “FAT32 format” microSD card,
nDue to the specification of FAT32, movies are divided and saved every 4 GB (about 25 minutes).
n- Continuous recording is possible when using “exFAT format” microSD card
n
n

n

System Requirements(For dedicated streaming PC)

n

Operating sytem: Windows® 10 / 8.1 / 7 / Mac OS X (Support UVC Protocol)
nFor 1080p60
nDesktop:
nIntel® Core™ i5 CPU i5-3330 or comparable (i7 recommended)
nNVIDIA® GTX 650 / AMD Radeon™ R7 250X or above are recommended
n4GB RAM
n
n
nLaptop:
nIntel® Core™ i7-4810MQ
nNVIDIA® GeForce® GTX 870M
n4 GB RAM (8 GB recommended)
n
nOperating sytem: Mac OS X (Support UVC Protocol)
nFor 1080p60
nDesktop:
n2.9GHz quad-core Intel Core i5 processor
nNVIDIA GeForce GT 750M graphics processor with 1GB of GDDR5 memory
n16GB of 1600MHz DDR3L onboard memory
n
nLaptop:
n2.5GHz quad-core Intel Core i7 processor
nNVIDIA GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics switching
n16GB of 1600MHz DDR3L onboard memory

n

n

n

What’s in the box

n

• Live Gamer Portable 2 PLUS (GC513)
n• HDMI cable
n• USB Micro to Type-A cable
n• 4-Pole 3.5mm audio cable
n• Quick guide
