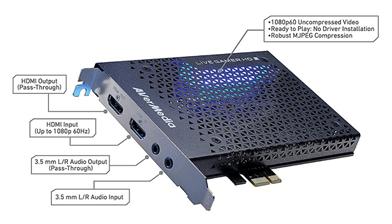

AVERMEDIA GC570 LIVE GAMER HD2 PCI-E

Description

n

Technical Specifications

n

• Interface:PCI-Express Gen 2 x1
n• Video Input:HDMI
n• Video Output (Pass-Through):HDMI
n• Audio Input:HDMI / 3-Pole 3.5 mm Jack
n• Audio Output (Pass-Through):HDMI / 3-Pole 3.5 mm Jack
n• Max Pass-Through Resolutions:1080p60
n• Max Record Resolutions:1080p60
n• Supported Resolutions (Video input):1080p, 1080i, 720p, 576p, 480p, 480i
n• Record Format:MPEG 4 (H.264+AAC) / MJPEG
n• Dimension (W x D x H):125 x 151 x 21.5 mm (4.92 x 5.94 x 0.84 in)
n• Weight:145 g (5.11 oz)
nNotes:
n1. LGHD2 does not support viewing/recording/streaming of HDCP protected signals

n

n

n

System Requirements(For dedicated streaming PC)

n

Operating sytem: Windows® 10 / 8.1 / 7 *For 1080p60
nDesktop:
nIntel® Core™ i5-3330 or above (i7-3770 recommended)
nNVIDIA® GeForce® GTX 650 / AMD Radeon™ R7 250X or above are recommended
n4 GB RAM
n
nNotes:
n* Windows® 10 / 8.1 (Support UVC Protocol)
nWindows® 7 Requires driver installation
n
n1. Warning: Live Gamer HD2 is not compatible with X99 (ASUS, MSI, ASROCK) motherboards

n

n

n

What’s in the box

n

• Live Gamer HD 2 (GC570)
n• HDMI cable
n• 3-Pole 3.5mm audio cable
n• Quick guide

n
