Description
ModelMPX-7505-AFAG-BEU

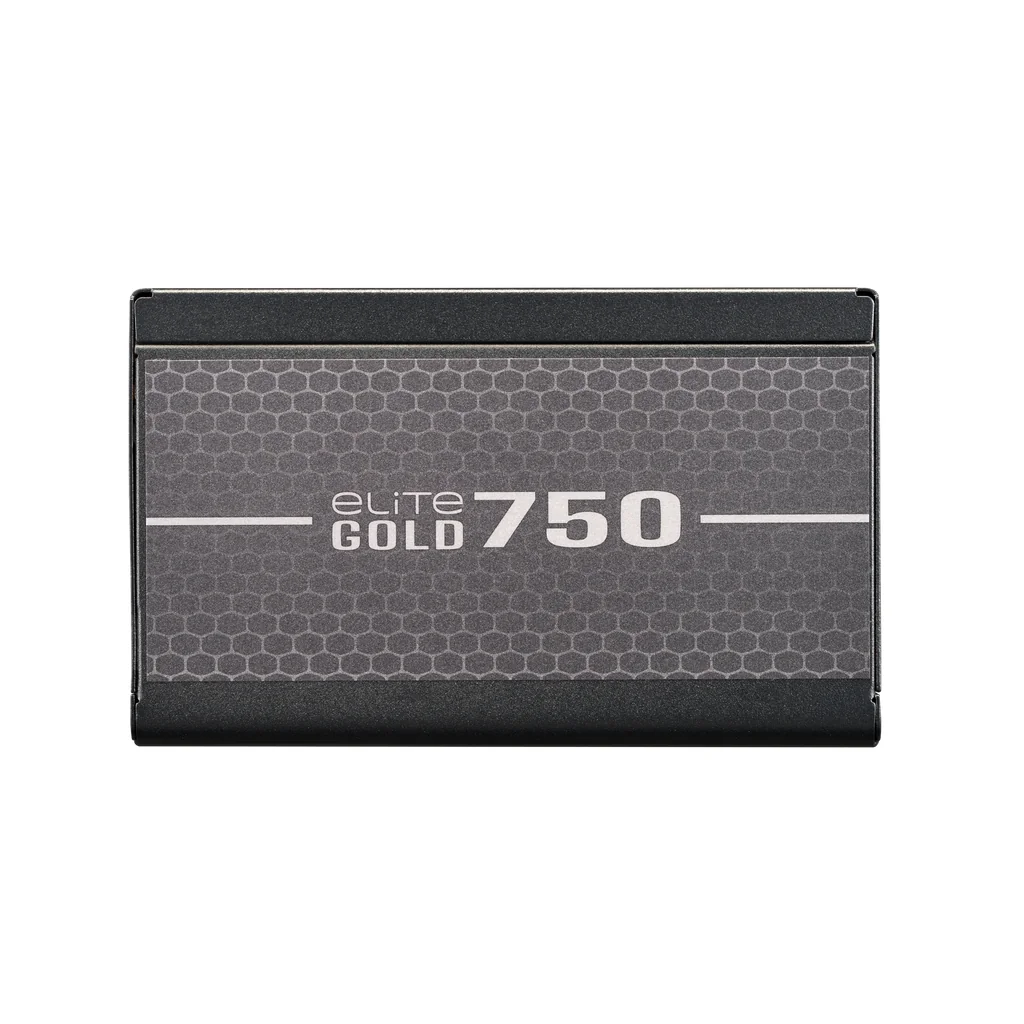

The Cooler Master Elite Gold 750W is engineered for gamers and PC builders seeking efficient and reliable power delivery for modern gaming systems and desktop upgrades. Built around the latest ATX 3.1 and PCIe 5.1 standards, the PSU is ready for modern NVIDIA GeForce RTX graphics cards and next-generation PC hardware platforms.
Delivering 750W of continuous output power, the PSU includes a native 12VHPWR connector for direct compatibility with modern PCIe Gen 5 graphics cards without requiring adapters. Its ATX 3.1 design supports higher transient power spikes for improved GPU stability under heavy gaming workloads.

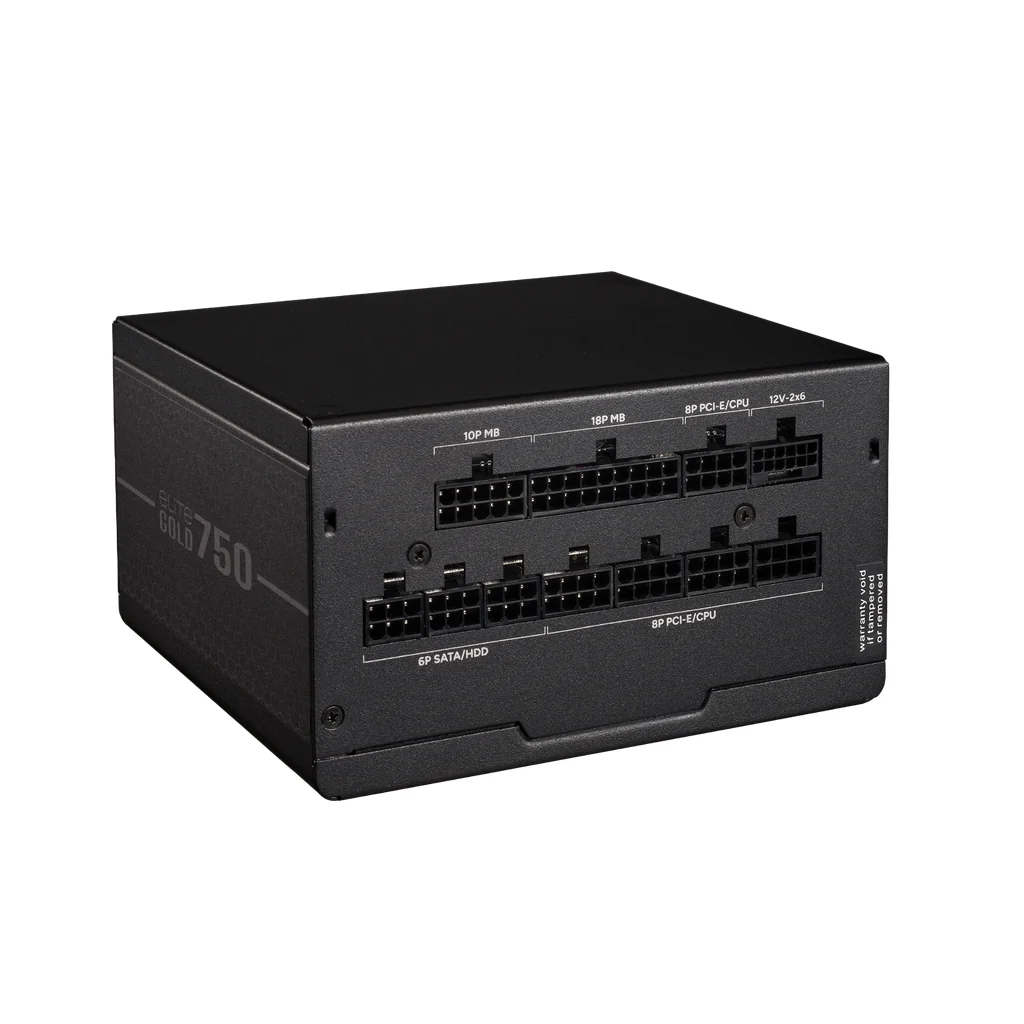

The fully modular cable design allows users to install only the required cables, reducing clutter and improving airflow inside gaming chassis. Cooler Master also includes embossed flat black cables that simplify cable management while maintaining a clean premium appearance.
Certified 80 PLUS Gold, the Elite Gold 750W achieves over 90% efficiency at typical loads, helping reduce heat generation and power consumption. Cooling is handled by a quiet 120mm rifle bearing fan designed for improved lifespan and low-noise operation.
The PSU is rated for reliable operation at temperatures up to 40°C and includes multiple protection systems including UVP, OVP, OPP, OTP, and SCP to safeguard connected components. Its compact 140mm depth also improves compatibility with a wide range of PC cases.
Combining modern PCIe 5.1 compatibility, Gold-rated efficiency, and modular flexibility, the Cooler Master Elite Gold 750W is an excellent PSU choice for gaming PCs and mainstream performance desktop systems.
WHY IT’S A GREAT CHOICE:
NEXT-GEN GPU READY
ATX 3.1 and PCIe 5.1 support ensure compatibility with modern graphics cards.
HIGH-EFFICIENCY PERFORMANCE
80 PLUS Gold certification helps reduce heat and improve power efficiency.
CLEANER SYSTEM BUILDS
The fully modular cable design improves airflow and cable management.
QUIET COOLING DESIGN
The rifle bearing fan delivers reliable cooling with lower operating noise.
COMPACT & VERSATILE
The 140mm compact chassis improves compatibility with modern gaming cases.
SPECIFICATIONS:

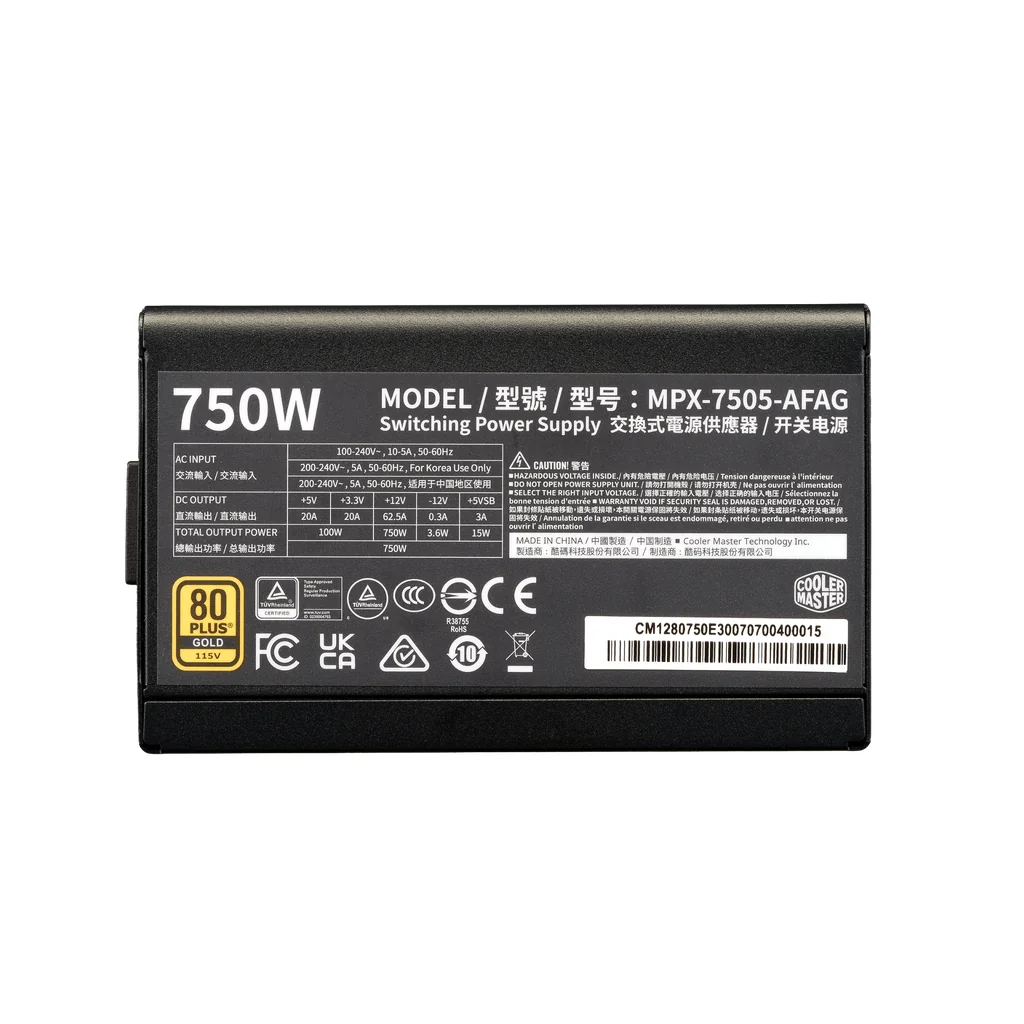

| Feature | Details |
|---|---|
| Brand / Model | Cooler Master Elite Gold 750 |
| Part Number | MPX-7505-AFAG-BEU |
| Product Type | ATX Power Supply |
| Wattage | 750W |
| Modular Type | Fully Modular |
| ATX Standard | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| Efficiency Certification | 80 PLUS Gold |
| Efficiency | ≥90% @ Typical Load |
| PFC Type | Active PFC |
| Cooling Fan | 120mm Fan |
| Fan Bearing Type | Rifle Bearing |
| Input Voltage | 100–240V |
| Input Frequency | 50–60Hz |
| Operating Temperature | 0–40°C |
| Mainboard Connector | 1 × 24-Pin ATX |
| CPU Connectors | 1 × EPS 4+4-Pin • 1 × EPS 8-Pin |
| PCIe 5 Connector | 1 × 12VHPWR |
| PCIe Connectors | 2 × 6+2-Pin PCIe |
| SATA Connectors | 8 |
| Peripheral Connectors | 4 |
| MTBF | >100,000 Hours @ 25°C |
| Protection Features | UVP • OVP • OPP • OTP • SCP |
| Dimensions | 140 × 150 × 86 mm |
| Colour | Black |
| Recommended Usage | Gaming PCs • Desktop Systems |
| Warranty | 5 Year Warranty |
