Description

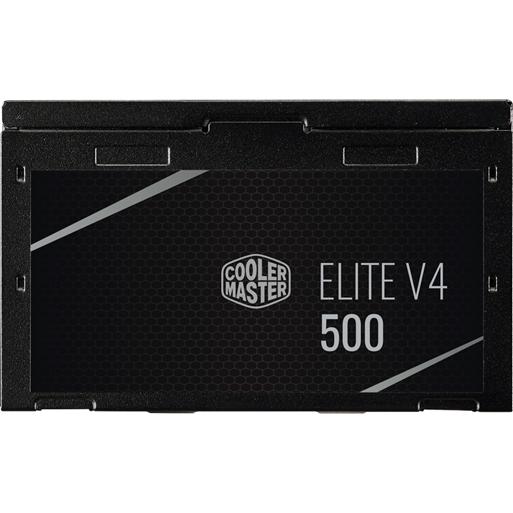

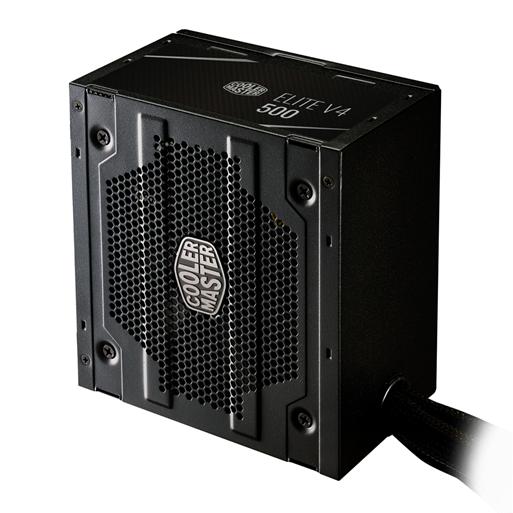

CoolerMaster MPE-5001-ACABN-WO Elite 500 230V – V4 80+ White Non-Modular Power Supply

n
nPOWER UP
n
nThe Elite – v4 series power supply unit is a dependable choice for entry level PC builders and office work systems. The quiet 120mm fan, 80 PLUS White EU 230V efficiency, and 3 year warranty deliver a PSU that provides function and resilience you can count on. It’s the perfect option for work horse systems stored and operated in less than ideal conditions and climates. This PSU has been engineered for reliability with a focus on reducing random shutdowns in conditions where power sources are inconsistent and unstable, making it ideal for locations prone to experience brown outs. The Elite – v4 is a complete solution, offering performance and stability at an affordable price.
n
n
n
nACTIVE PFC + FORWARD TOPOLOGY DESIGN
n
nA power supply unit works by taking power directly from the wall or other fixed power source, converting it to the correct output required by the connected components, and then distributing that power to said components. If any part of this process is interrupted or executed poorly, the connected system components and the PSU itself could be damaged. Active PFC uses a circuit to correct power factor leading to reduced total harmonics, corrected AC input voltage, and increased overall efficiency output.
n
n
n
nThe new Elite – v4 has a maximum operating temperature of 40°C. That’s at the level of many 80 Plus certified power supply units on the market today. This higher operating temperature allows you to power your system safely in warmer environments without having to worry about your system overheating or shutting off unexpectedly. The higher heat resistance also reduces temperature based wear, increasing the lifespan of the unit by a noticeable amount.
n
nPEAK POWER TOLERANCE
n
nThis power supply unit can push out an additional 50W above maximum load for up to 10 seconds before turning off. This will allow your system a chance to save data and complete current processes in the event of output surge or overloading. While it may not be a feature you’ll actively need all the time, it can be extremely useful in an emergency scenario.
n
n
n
n
n
nDURABLE, RELIABLE, AND SAFE
n
n
n
nThe Elite – v4 will perform consistently in whatever environment you throw at it whether it’s high altitudes above 5000 meters or ultra humid settings like a tropical rain-forest. This unit was designed for work systems meant to be used in extreme conditions with challenging temperatures. Do whatever you need to do wherever you need to do it without letting your hardware limit your goals.
n
n
n
nDesign
n

nnnnnnnnnnnnnnnnnnnnnnn

Product colour	Black
Number of fans	1
Cooling type	Active
Fan diameter	120
On/off switch	Y

nWeight & dimensions
n

nnnnnnnnnnnnnnn

Width	150
Depth	140
Height	86

nPackaging data
n

nnnnnnnnnnnnnnnnnnn

Package type	Box
Package height	96
Package width	213
Package depth	195

nOperational conditions
n

nnnnnnn

Operating temperature (T-T)	0 – 40

nPerformance
n

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

80 PLUS certification	80 PLUS White
Mean time between failures (MTBF)	100000
Purpose	PC
Power supply unit (PSU) form factor	ATX
Bearing technology	Sleeve
ATX version	2.41
Certification	TUV / cTUVus / CE / BSMI / FCC / EAC / RCM / KCC / CCC / CB

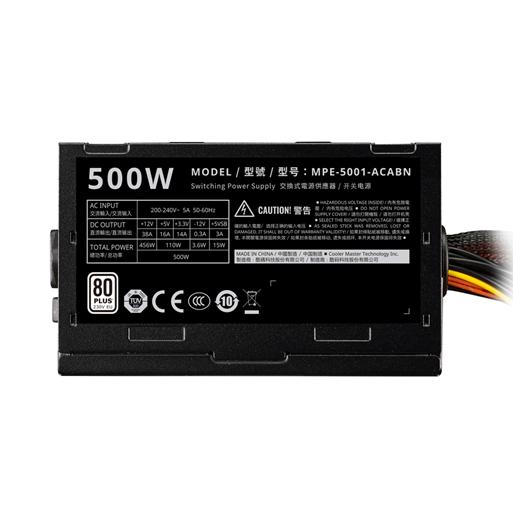

nPower
n

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

AC input voltage	200 – 240
AC input frequency	50/60
Input current	5
Total power	500
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110
Combined power (+5V)	110
Combined power (-12V)	3.6
Combined power (+5Vsb)	15
Max output current (+12V)	38
Max output current (-12V)	0.3
Max output current (+5Vsb)	3
Efficiency	85
Hold time	14
Power Good signal delay range	100 – 500
Combined power (+12V)	500
Max output current (+3.3V)	14
Max output current (+5V)	16
Power protection features	Over power,Over voltage,Under voltage

nPorts & interfaces
n

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Peripheral (Molex) power connectors (4-pin)	3
Number of SATA power connectors	5
Motherboard power connector	24-pin ATX
PCI Express power connectors (6+2 pin)	2
Cabling type	Non-Modular
ATX Power connector (24-pin)	Y
EPS power connector (4+4 pin)	Y
