Description
ModelMLZ-H92M-A26PK-R1

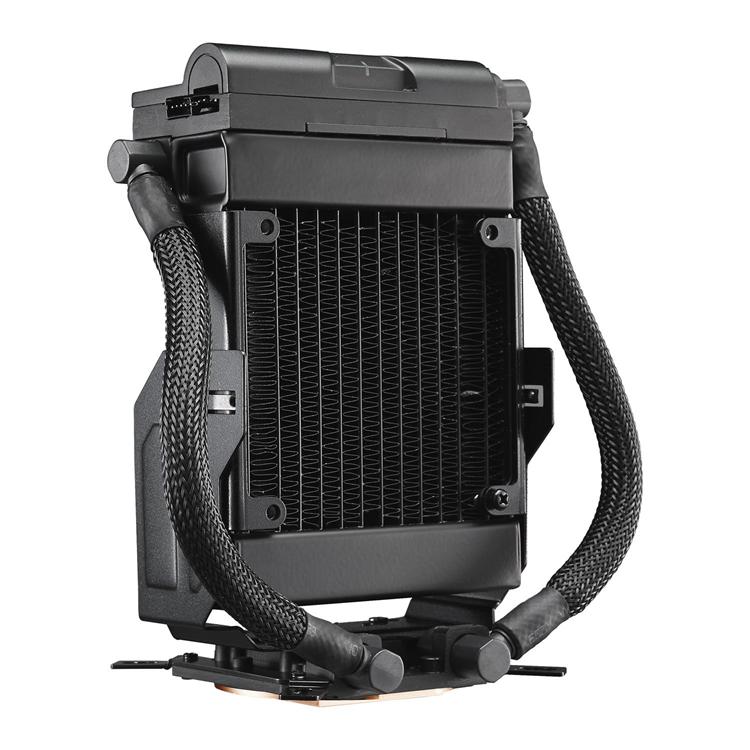

Introducing the MasterLiquid Maker 92
This revolutionary CoolerMaster Liquid Maker 92 is a first in our industry, and brings a new option to meet the specific demands of PC building enthusiasts. We understand that people have different needs in the way they configure their systems and that they desire the performance of AIO water cooling but sometimes cannot combine one with their current choice of case and PC system. Now you have a new option in a compact liquid cooler that can swivel to fit multiple dimensions.
Features
Switch and Swivel
Choose between vertical and horizontal cooler configurations that perfectly suit you case and airflow needs.
Liquid and Air
A single tower utilizes superior AIO liquid cooling with dual fans for improved static pressure and maximized cooling.
Compact Body
A combined pump and radiator in one easily installable unit brings liquid cooling to smaller builds and tighter PC case layouts.
Silence Efficiency
We have a feature called Silence Efficiency which turns off the fan when the temperature is below 50% of user setting to save noise and power. Intake fan stay static under 50% temperature setting from BIOS.
Easy Installation
Reduce the fuss of a traditional liquid cooler and install this one just like an air cooler. In minutes.
Special Design
• Breakthrough Pump-Radiator Combination: With extremely limited space, Cooler Master overcame the limitation by fully designing a smallest ever pump-radiator combination.

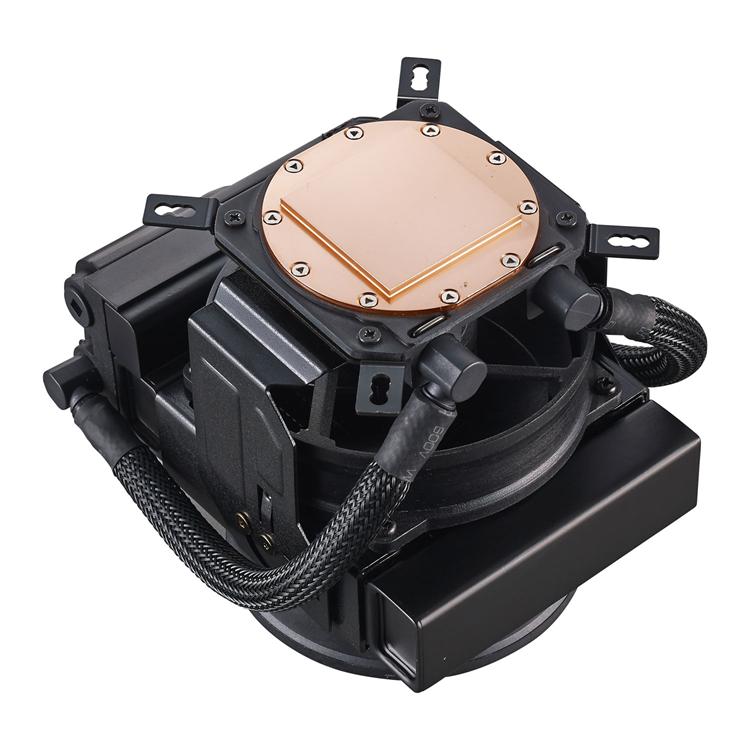

• Clean Copper Base Design: Precision machined Micro channels maximize the water contact surface, to quickly dissipate heat. The base is finished with clean and clear appearance.
• Air Pressure Fan Design: Air Pressure fans are ideal for funnelling concentrated air short distances at hot components or tight spaces. Recommended for use on the front panel to penetrate mesh wiring and tightly packed HDDs.
• Dense Fin Design: The aluminium radiator has an extremely dense fin array to provide maximum surface area.
| SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | Masterliquid Maker 92 |
| Model | MLZ-H92M-A26PK-R1 |
| CPU | Intel LGA 2066 / 2011-v3/ 2011/ 1151/ 1150/ 1155/ 1156 socket |
| Power Connector | SATA and 4-Pin |
| Radiator Material | Aluminum |
| Fan | |
| Dimension | Φ95 x 25.4 mm (3.7 x 1”) |
| Speed | 550 ~ 2600 RPM (PWM) ± 10% |
| Airflow | 49.7 CFM (Max) |
| Air Pressure | 6.4 mmH2O (Max) |
| Noise Level | 30 dBA (Max) |
| MTTF | 350,000 hours |
| L-10 Life | 50,000 hours |
| Rated Voltage | 12 VDC |
| Pump | |
| Noise Level | <12 dBA (Max) |
| MTTF | 175,000 hours |
| L-10 Life | 50,000 hours |
| Rated Voltage | 12 VDC |
| Dimensions & Weight | |
| Dimensions | Vertical: 99.9 x 81.6 x 167.5mm |
| Horizontal: 99.9 x 142 x 118.8mm | |
| Weight | 875g |
| Warranty Information | |
| Warranty | 5 Year Warranty |
