Description

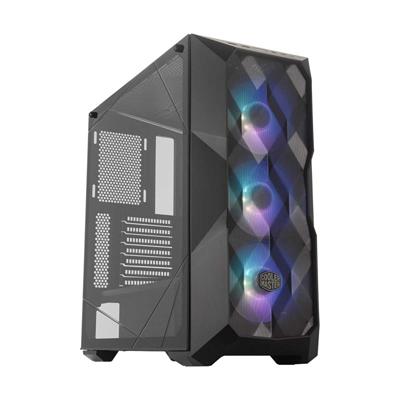

CoolerMaster MasterBox TD500 Mesh Tempered Glass Black ATX Mid-Tower Desktop Chassis
ModelMCB-D500D-KGNN-S01
| SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | MasterBox |
| Model | MCB-D500D-KGNN-S01 |
| Case Specifications | |
| Colour | Black |
| Form Factor | Mid-Tower Form Factor |
| Materials | Steel, Plastic, Mesh |
| Side Panels | Tempered Glass |
| Dimension | Including Protrusions: 493 x 217 x 469 mm |
| Excluding Protrusions: 429.5 x 205 x 447 mm | |
| Weight | 6.95 kg |
| Motherboard Support | E-ATX, SSI CEB, ATX, Micro-ATX, Mini-ITX |
| (E-ATX Support for Up to 12″ x 10.7″, Will Limit Cable Management Features) | |
| I/O Panel | 2x USB 3.2 Gen 1 (Formerly USB 3.0) |
| 1x 3.5mm Audio Jack | |
| 1x 3.5mm Microphone Jack | |
| 1x ARGB Controller (Only for the S01 Versions) | |
| 1x ARGB 2-to-3 Splitter | |
| PCI Slots & Drive Bays | |
| PCI Slots | 7 |
| Internal Drive Bays | 2.5″/3.5″ Combo: 2 |
| 2.5″: 4 (2+2 Combo) | |
| Fans Included | |
| Total Fans | 3x 120 mm ARGB |
| Fan Support | |
| Front | 3x 120 mm, 2x 140 mm |
| Top | 3x 120 mm, 2x 140 mm |
| Rear | 1x 120 mm |
| Dust Filters | Top, Bottom, Front |
| Radiator Support | |
| Front | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Top | 120 mm, 240 mm, 360 mm, (44 mm Max Motherboard Component Height) |
| Rear | 120 mm |
| Clearance | |
| GPU Clearance | Up to 410 mm |
| CPU Clearance | Up to 165 mm |
| Motherboard Width | Up to 180 mm |
| Up to 295 mm (w/ HDD Cage Removed) | |
| PSU Support | Bottom Mount, ATX |
| Cable Routing | 19 mm |
| Warranty Information | |
| Warranty | 2 Year Warranty |
