Description

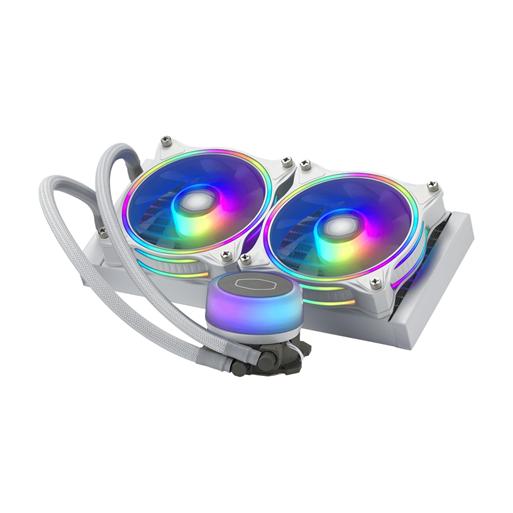

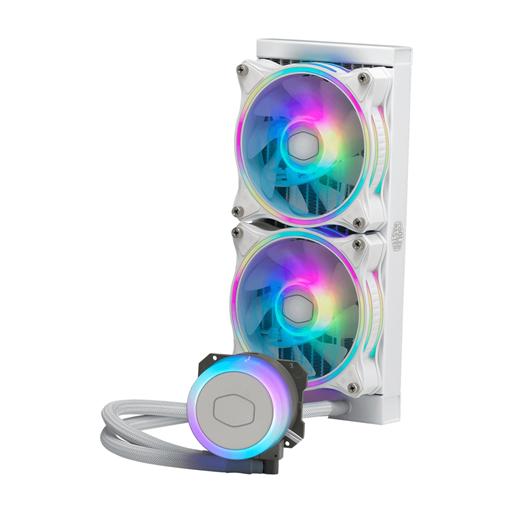

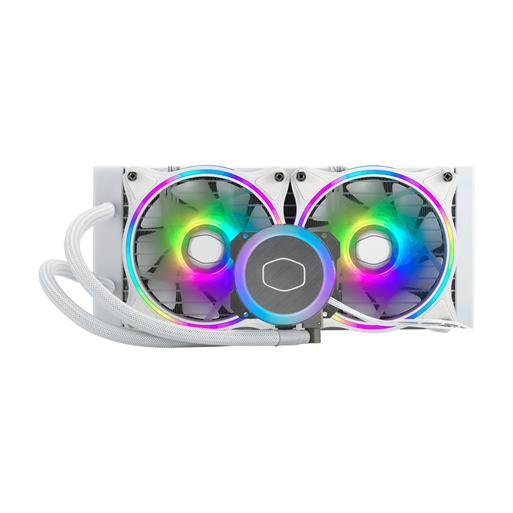

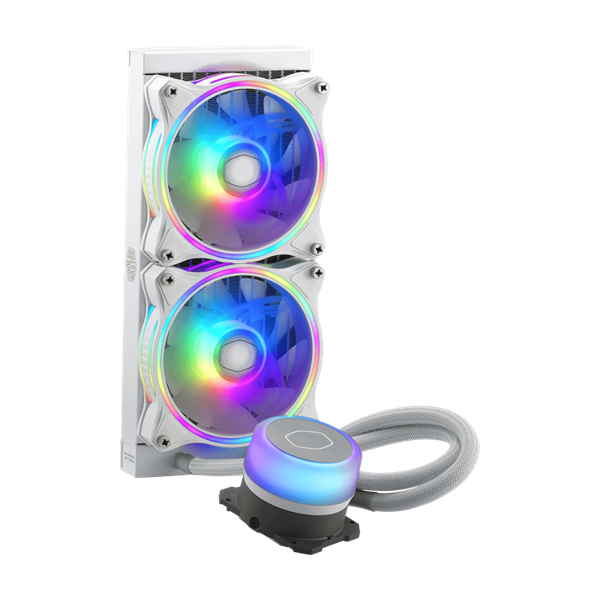

The CoolerMaster ML240 Illusion White Edition redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.
Developed with new lighting technology, our Addressable Gen 2 RGB, the ML240 Illusion works with major motherboard manufacturers supporting this new capability. The ARGB options can be customized with the included Addressable Gen 2 RGB controller and Cooler Master’s MasterPlus+ software.
FEATURES | Optimized Dual Chamber – 3rd Gen Dual Chamber Pump designed for optimized performance.
Expanded Dissipation Surface Area – Widened radiator water channels for increased cooling surface area.
MasterFan MF120 Halo – Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs.
Enhanced Quality – Industrial grade material designed to withstand extreme environmental conditions.
MasterPlus+ Software – Cooler Master proprietary software adapted for new Addressable Gen 2 RGB features.
Translucent Dome – Stunning lighting visuals with translucent water chamber dome compatible with software customization.
SPECIFICATIONS |
|
| Brand | Cooler Master |
| Series | Masterliqiud |
| Model | ML240 Illusion White Edition |
| CPU Socket | Intel LGA 2066 / 2011-v3 / 2011 / 1200 / 1151 / 1150 / 1155 / 1156 / 1200 |
| AMD AM4 / AM3 / AM3 / AM2 / AM2 / FM2 / FM2 / FM1 | |
| Radiator | |
| Material | Aluminum |
| Dimensions | 277 x 119.6 x 27.2 mm (L x W x H) |
| Pump | |
| Dimensions | 81.4 x 76 x 57.8 mm (L x W x H) |
| MTTF (Hours) | 70,000 hours |
| Noise Level (dBA) | <10dBA |
| Connector | 3-Pin |
| Rated Voltage (VDC) | 12 |
| Power Consumption (W) | 2.36 W |
| Fan | |
| Dimensions | 120 x 120 x 25 mm(L x W x H) |
| Quantity (pcs) | 2 pcs |
| LED Type | Addressable Gen 2 RGB |
| Speed (RPM) | 650 ~1800 ±10% |
| Airflow (CFM) | 47.2(Max |
| Noise Level (dBA) | 6~30dBA |
| Pressure (mmH2O) | 1.60(Max) |
| Life Expectancy(Hours) | 160,000 hours |
| Power Connector | 4-Pin |
| Rated Voltage (VDC) | 12 |
| Rated Current (A) | 0.25A |
| General | |
| Weight | 1.975 |
| Features | Optimized Dual Chamber |
| Expanded Dissipation Surface Area | |
| MasterFan MF120 Halo | |
| New Cooler Master Proprietary Software Adapted For New Gen 2 RGB Features | |
| Translucent Water Chamber Dome Compatible With Software Customization | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
